Marantz PMD620 Service Manual

53

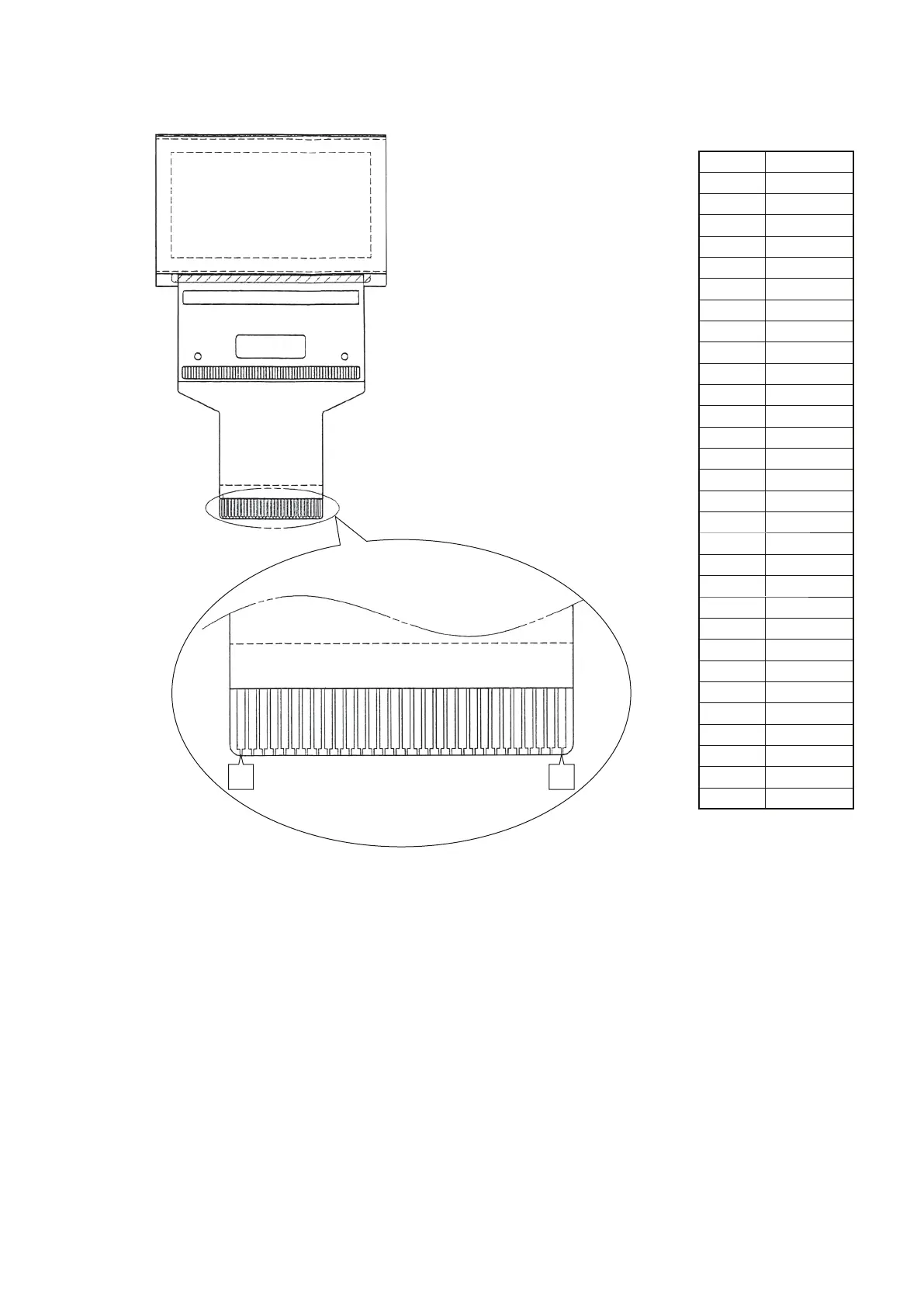

V001 : OLED Assy
PIN ASSIGNMENT (CN)
No. NAME
1NC
2 VCC
3 VCOMH
4 IREF
5D7
6D6
7D5
8D4
9D3
10 D2
11 D1
12 D0
13 E(RD#)
14 R/W#(WR#)
15 D/C#
16 RES#
17 CS#
18 FR
19 BS2
20 BS1
21 VDD 10
22 VDD
23 NC
24 GND
25 NC
26 NC
27 NC
28 NC
29 NC
30 VSS
130
