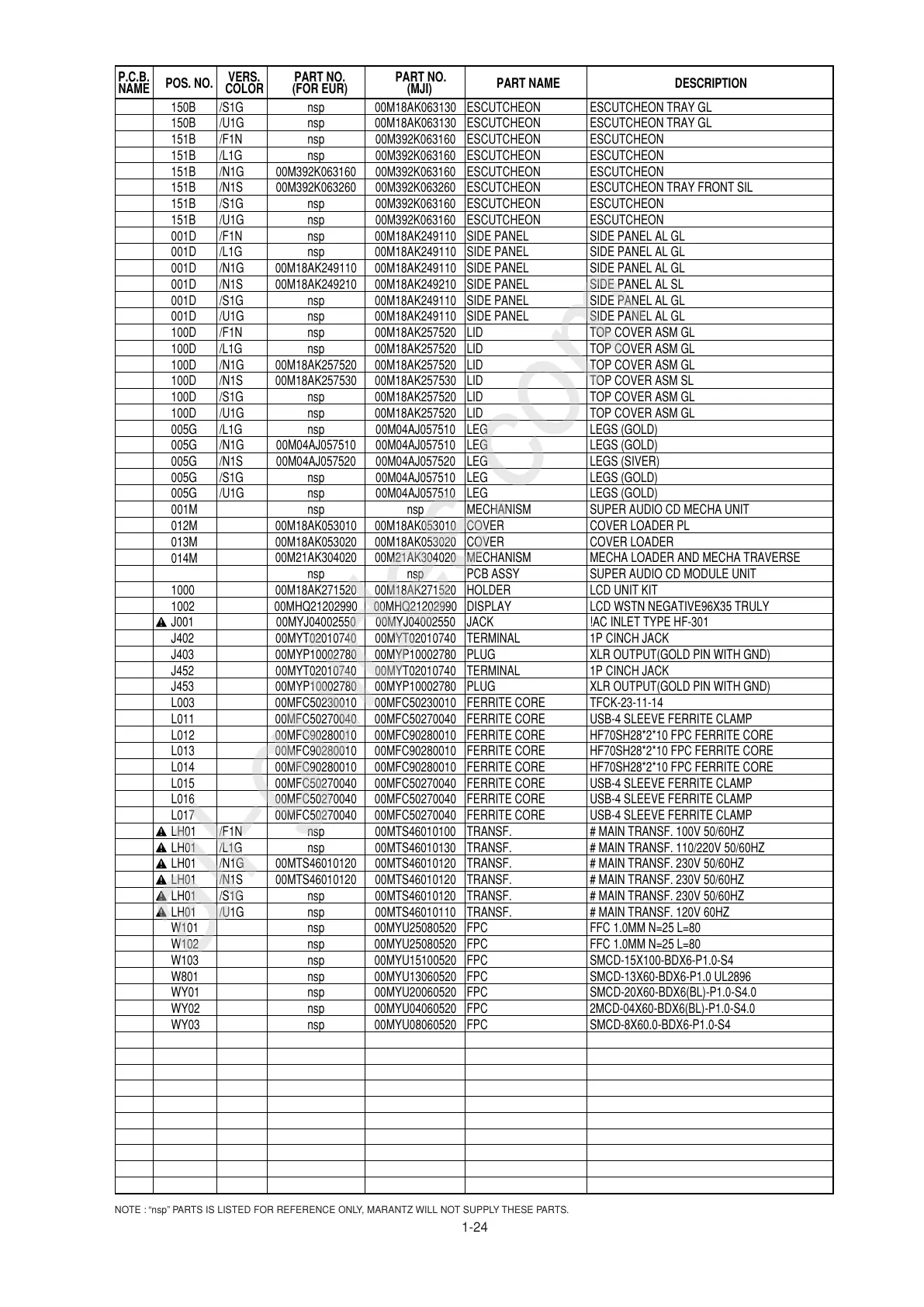

Marantz SA-11S1 - Page 26

1-24
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
150B /S1G ns
p
00M18AK063130 ESCUTCHEON ESCUTCHEON TRAY GL
150B /U1G ns
p
00M18AK063130 ESCUTCHEON ESCUTCHEON TRAY GL
151B /F1N ns
p
00M392K063160 ESCUTCHEON ESCUTCHEON
151B /L1G ns
p
00M392K063160 ESCUTCHEON ESCUTCHEON
151B /N1G 00M392K063160 00M392K063160 ESCUTCHEON ESCUTCHEON
151B /N1S 00M392K063260 00M392K063260 ESCUTCHEON ESCUTCHEON TRAY FRONT SIL
151B /S1G ns
p
00M392K063160 ESCUTCHEON ESCUTCHEON
151B /U1G ns
p
00M392K063160 ESCUTCHEON ESCUTCHEON
001D /F1N ns
p
00M18AK249110 SIDE PANEL SIDE PANEL AL GL
001D /L1G ns
p
00M18AK249110 SIDE PANEL SIDE PANEL AL GL
001D /N1G 00M18AK249110 00M18AK249110 SIDE PANEL SIDE PANEL AL GL
001D /N1S 00M18AK249210 00M18AK249210 SIDE PANEL SIDE PANEL AL SL
001D /S1G ns
p
00M18AK249110 SIDE PANEL SIDE PANEL AL GL
001D /U1G ns
p
00M18AK249110 SIDE PANEL SIDE PANEL AL GL
100D /F1N ns
p
00M18AK257520 LID TOP COVER ASM GL
100D /L1G ns
p
00M18AK257520 LID TOP COVER ASM GL
100D /N1G 00M18AK257520 00M18AK257520 LID TOP COVER ASM GL
100D /N1S 00M18AK257530 00M18AK257530 LID TOP COVER ASM SL
100D /S1G ns
p
00M18AK257520 LID TOP COVER ASM GL
100D /U1G ns
p
00M18AK257520 LID TOP COVER ASM GL
005G /L1G ns
p
00M04AJ057510 LEG LEGS
(
GOLD
)
005G /N1G 00M04AJ057510 00M04AJ057510 LEG LEGS
(
GOLD
)
005G /N1S 00M04AJ057520 00M04AJ057520 LEG LEGS
(
SIVER
)
005G /S1G ns
p
00M04AJ057510 LEG LEGS
(
GOLD
)
005G /U1G ns
p
00M04AJ057510 LEG LEGS
(
GOLD
)
001M ns
p
ns
p
MECHANISM SUPER AUDIO CD MECHA UNIT
012M 00M18AK053010 00M18AK053010 COVER COVER LOADER PL
013M
014M
00M18AK053020 00M18AK053020 COVER COVER LOADER
00M21AK304020 00M21AK304020 MECHANISM MECHA LOADER AND MECHA TRAVERSE
ns
p
ns
p
PCB ASS
Y
SUPER AUDIO CD MODULE UNIT
1000 00M18AK271520 00M18AK271520 HOLDER LCD UNIT KIT
1002 00MHQ21202990 00MHQ21202990 DISPLAY LCD WSTN NEGATIVE96X35 TRULY
J001 00MYJ04002550 00MYJ04002550 JAC
K
!AC INLET TYPE HF-301
J402 00MYT02010740 00MYT02010740 TERMINAL 1P CINCH JACK
J403 00MYP10002780 00MYP10002780 PLUG XLR OUTPUT
(
GOLD PIN WITH GND
)
J452 00MYT02010740 00MYT02010740 TERMINAL 1P CINCH JACK
J453 00MYP10002780 00MYP10002780 PLUG XLR OUTPUT
(
GOLD PIN WITH GND
)
L003 00MFC50230010 00MFC50230010 FERRITE CORE TFCK-23-11-14
L011 00MFC50270040 00MFC50270040 FERRITE CORE USB-4 SLEEVE FERRITE CLAMP
L012 00MFC90280010 00MFC90280010 FERRITE CORE HF70SH28*2*10 FPC FERRITE CORE
L013 00MFC90280010 00MFC90280010 FERRITE CORE HF70SH28*2*10 FPC FERRITE CORE
L014 00MFC90280010 00MFC90280010 FERRITE CORE HF70SH28*2*10 FPC FERRITE CORE
L015 00MFC50270040 00MFC50270040 FERRITE CORE USB-4 SLEEVE FERRITE CLAMP
L016 00MFC50270040 00MFC50270040 FERRITE CORE USB-4 SLEEVE FERRITE CLAMP
L017 00MFC50270040 00MFC50270040 FERRITE CORE USB-4 SLEEVE FERRITE CLAMP
LH01
/F1N ns
p
00MTS46010100 TRANSF. # MAIN TRANSF. 100V 50/60HZ
LH01 /L1G ns
p
00MTS46010130 TRANSF. # MAIN TRANSF. 110/220V 50/60HZ
LH01 /N1G 00MTS46010120 00MTS46010120 TRANSF. # MAIN TRANSF. 230V 50/60HZ
LH01 /N1S 00MTS46010120 00MTS46010120 TRANSF. # MAIN TRANSF. 230V 50/60HZ
LH01 /S1G ns
p
00MTS46010120 TRANSF. # MAIN TRANSF. 230V 50/60HZ
LH01 /U1G ns
p
00MTS46010110 TRANSF. # MAIN TRANSF. 120V 60HZ
W101 ns
p
00MYU25080520 FPC FFC 1.0MM N=25 L=80
W102 ns
p
00MYU25080520 FPC FFC 1.0MM N=25 L=80
W103 ns
p
00MYU15100520 FPC SMCD-15X100-BDX6-P1.0-S4
W801 ns
p
00MYU13060520 FPC SMCD-13X60-BDX6-P1.0 UL2896
WY01 ns
p
00MYU20060520 FPC SMCD-20X60-BDX6
(
BL
)
-P1.0-S4.0
WY02 ns
p
00MYU04060520 FPC 2MCD-04X60-BDX6
(
BL
)
-P1.0-S4.0
WY03 ns
p
00MYU08060520 FPC SMCD-8X60.0-BDX6-P1.0-S4
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
