Marantz SA-11S1 - Electrical Parts List for SACD Module

NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

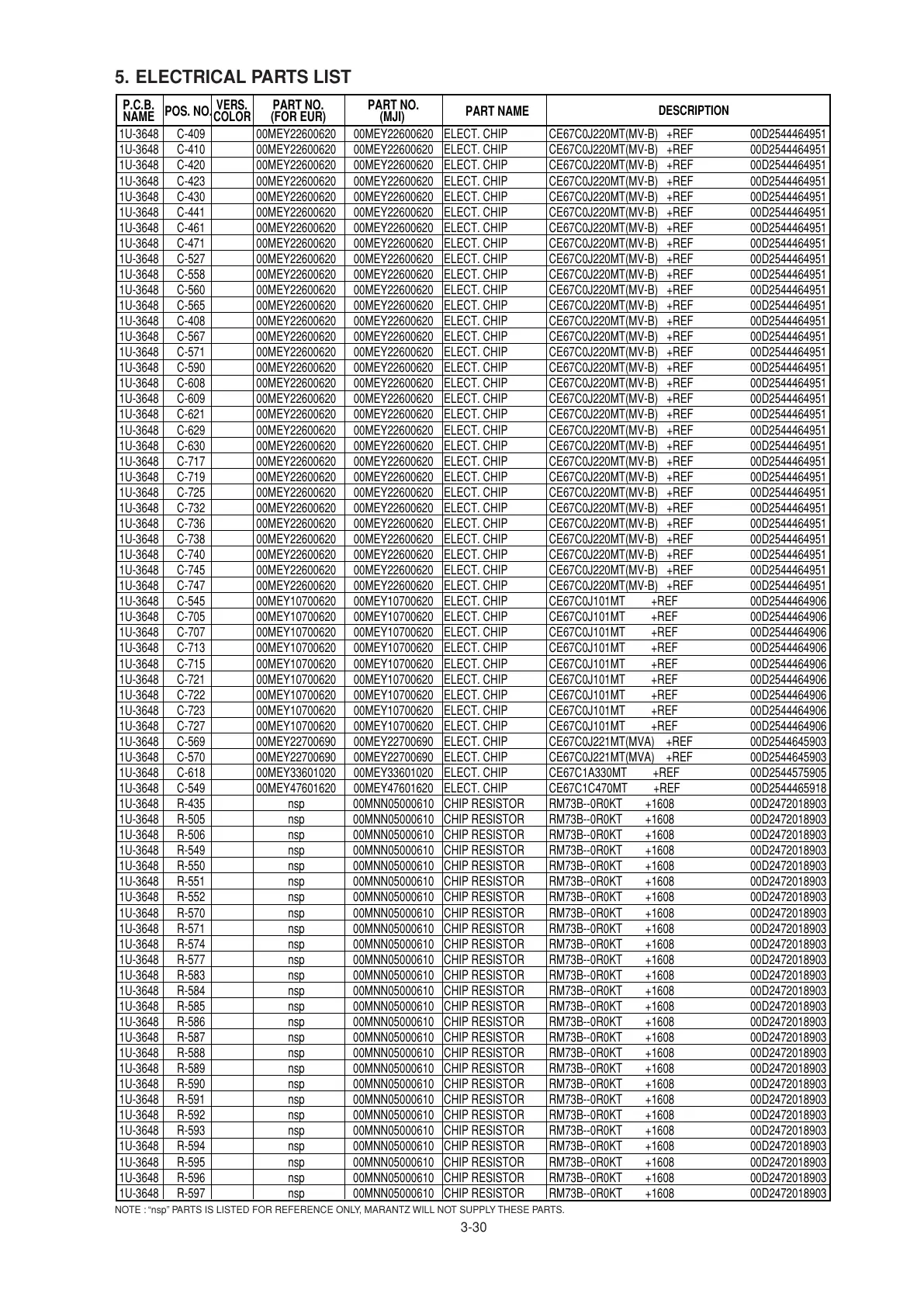

5. ELECTRICAL PARTS LIST
DESCRIPTION
1U-3648 C-409 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-410 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-420 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-423 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-430 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-441 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-461 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-471 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-527 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-558 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-560 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-565 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-408 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-567 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-571 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-590 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-608 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-609 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-621 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-629 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-630 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-717 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-719 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-725 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-732 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-736 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-738 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-740 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-745 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-747 00MEY22600620 00MEY22600620 ELECT. CHIP CE67C0J220MT
(
MV-B
)
+REF 00D2544464951
1U-3648 C-545 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-705 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-707 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-713 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-715 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-721 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-722 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-723 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-727 00MEY10700620 00MEY10700620 ELECT. CHIP CE67C0J101MT +REF 00D2544464906
1U-3648 C-569 00MEY22700690 00MEY22700690 ELECT. CHIP CE67C0J221MT
(
MVA
)
+REF 00D2544645903
1U-3648 C-570 00MEY22700690 00MEY22700690 ELECT. CHIP CE67C0J221MT
(
MVA
)
+REF 00D2544645903
1U-3648 C-618 00MEY33601020 00MEY33601020 ELECT. CHIP CE67C1A330MT +REF 00D2544575905
1U-3648 C-549 00MEY47601620 00MEY47601620 ELECT. CHIP CE67C1C470MT +REF 00D2544465918
1U-3648 R-435 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-505 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-506 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-549 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-550 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-551 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-552 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-570 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-571 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-574 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-577 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-583 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-584 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-585 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-586 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-587 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-588 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-589 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-590 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-591 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-592 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-593 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-594 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-595 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-596 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
1U-3648 R-597 ns
p
00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
