Marantz SA-15S1 Service Manual

1-1
1. TECHNICAL SPECIFICATIONS
Power Supply
/F Version................................................................................... AC 100V 50Hz/60Hz
/K Version ........................................................................................... AC 220V 50Hz
/L Version............................................................................................ AC 110V 60Hz
/N Version ........................................................................................... AC 230V 50Hz
/S Version ........................................................................................... AC 230V 50Hz
Power Consumption ............................................................................................20W
Cabinet, etc.
Dimensions (Width
×
Height
×
Depth) ........................................ 440
×
123
×
419mm
Net weight........................................................................................................ 13.5kg
Operating temperatures........................................................................+5°C ~ +35°C
Operating humidity ................................................................. 5 ~ 90% (without dew)
Accessories
• Remote control unit (RC-11SAS1) .......................................................................... 1
Dimensions (Width
×
Height
×
Depth) ................................... 48.5
×
21.5
×
152.5mm
Net weight........................................................................................................... 160g
• AAA (R03) Batteries ................................................................................................. 2
• AC Power cord.......................................................................................................... 1
• Audio cable............................................................................................................... 1
• Remote connection Cable ........................................................................................ 1
• User’s Guide............................................................................................................. 1
Super Audio CD Audio CD
Audio Characteristics
Analog output
Channels 2channels 2channels
Frequency range 2Hz — 100kHz 2Hz — 20kHz
Frequency characteristics 2Hz — 50kHz (-3dB) 2Hz — 20kHz
Dynamic range 111dB 100dB
THD (1kHz) 0.002% 0.002%
wow & flutter Precision of quartz Precision of quartz
Output level 2.1V RMS stereo 2.1V RMS stereo
Digital output
output level (cinch JACK) — 0.5Vp-p (75
Ω
)
output level (optical) — -19dBm
Optical Readout System
Laser AlGaAs AlGaAs
Wave length 650nm 780nm
Signal format 1-bit DSD
16-bit linear PCM
Sampling frequency 2.8224MHz 44.1kHz

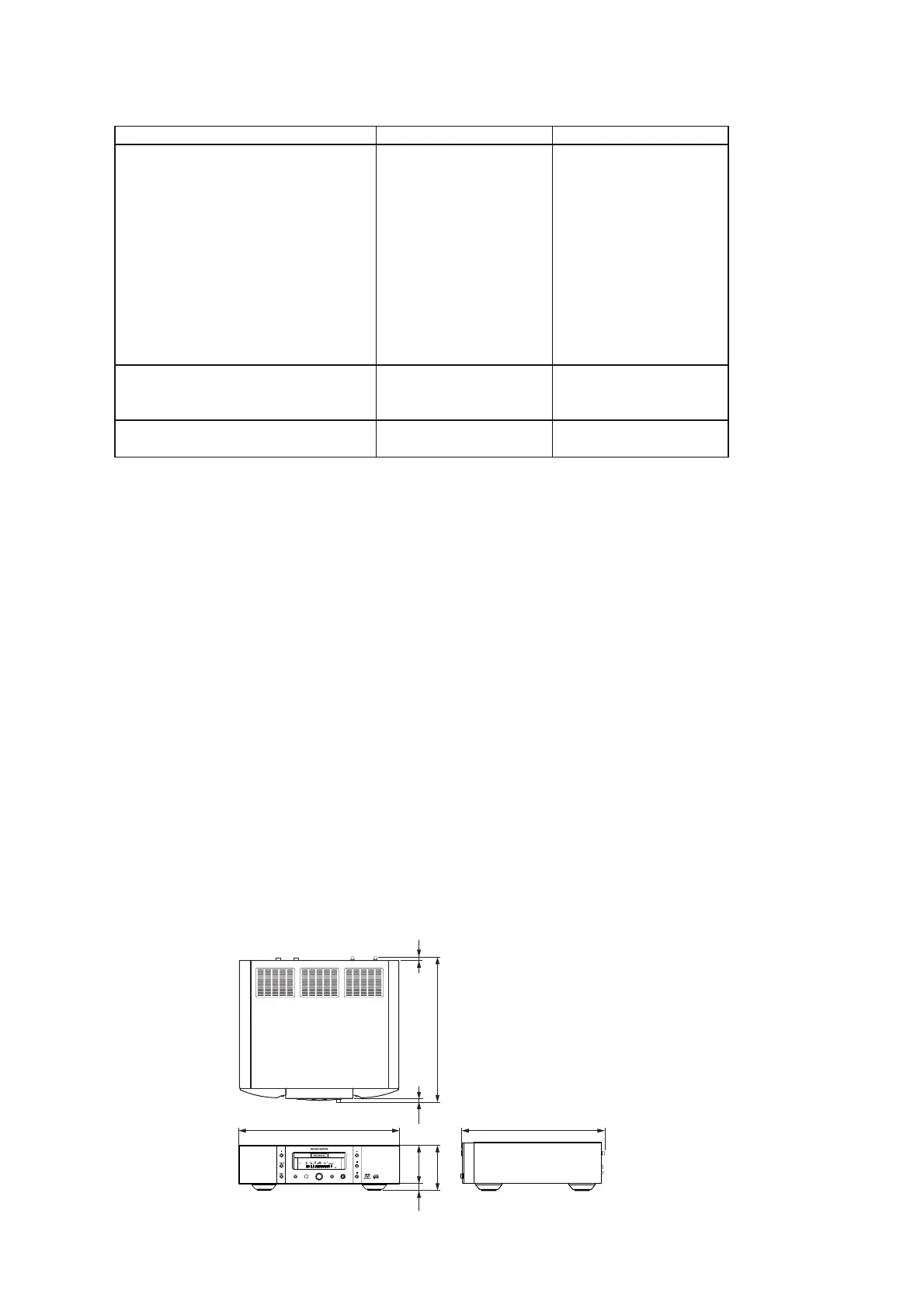

■ Dimensions (unit: mm)
PAUSE
STOP
PLAY
DISPLAY OFF
OPEN/
SOUND
POWER ON/OFF
SUPER AUDIO CD PLAYER SA-15S1
CLOSE
MODE
PHONES LEVEL
- +
18 7
123
105
440 418
419
12
