SPECIFICATIONS & DIMENSIONAL DRAWINGS
¶
Power Supply
Power Supply
................................................. AC 120V 60Hz (U.S.A.)
...........................................AC 230V 50/60Hz (Europe)
Power Consumption ....................................................... 20W
¶
Cabinet, etc.
Dimensions (Width × Height × Depth)
........17-3/8 × 4-7/8 × 16-1/2 ins. (440 × 123 × 419mm)
Net weight
............................................................29.8 lbs (13.5kg)
Operating temperatures ....................................+5˚C ~ +35˚C
Operating humidity .............................5 ~ 90% (without dew)
¶
Accessories
• Remote control unit .......................................................... 1
Net weight .................................................... 0.4 lbs (160g)
• AAA (R03) Batteries ......................................................... 2
• AC Power cord ................................................................. 1
• Audio cable....................................................................... 1
• Remote control connecting cord ...................................... 1
• User’s Guide..................................................................... 1
• Warranty card (U.S.A.) ..................................................... 1
• Warranty card (Canada) ................................................... 1
Specifications subject to change without prior notice.
17-3/8 (440)
3/4
(18)
4-3/16 (105)
4-7/8 (123)
1/2 (12)
16-1/2 (419)
15-3/4 (400)
5/16
(7)
Super Audio CD Audio CD
Audio Characteristics
Analog output
Channels
Frequency range
Frequency characteristics
Dynamic range
S/N Ratio (A-weighted)
THD (1kHz)
wow & flutter
2channels
2Hz ~ 100kHz
2Hz ~ 50kHz (-3dB)
112dB
110dB
0.0010%
Precision of quartz
2channels
2Hz ~ 20kHz
2Hz ~ 20kHz (-0.15dB)
100dB
110dB
0.0015%
Precision of quartz
Analog Output level
Unbalanced
Digital output
output level (cinch JACK)
output level (optical)
Digital input
 Rectangular optical connector (optical input)
2.4V RMS stereo
—
—
—
2.4V RMS stereo
0.5Vp-p (75Ω)
-19dBm
-17.5dBm ~ -23dBm
Optical Readout System
Laser
Wave length
AlGaAs
650nm
AlGaAs
780nm
Signal format
Sampling frequency
1-bit DSD
2.8224MHz
16-bit linear PCM
44.1kHz
7

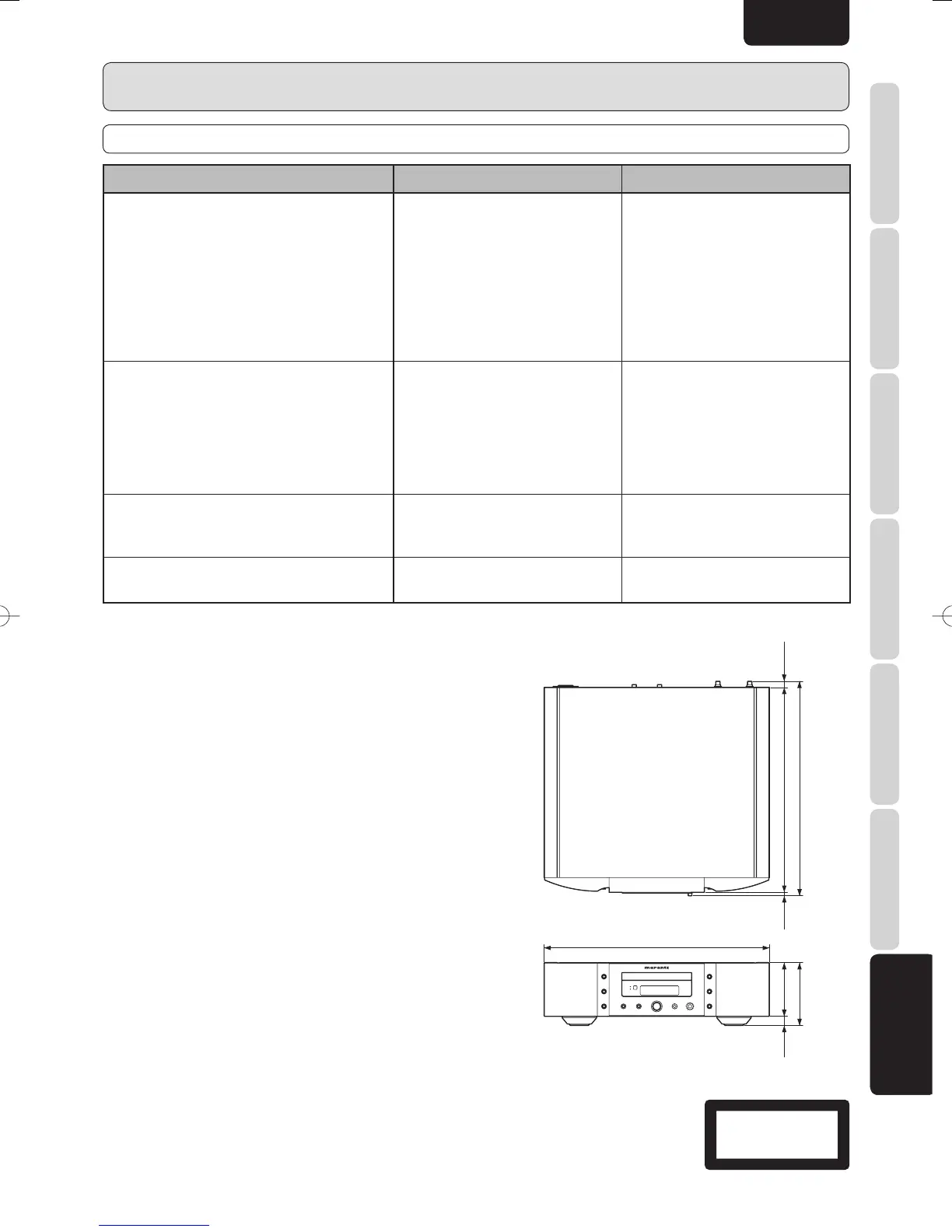

Dimensions (unit: inch (mm))
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
Unit: inch (mm)
