HS!ITONA
i
i
rd
a

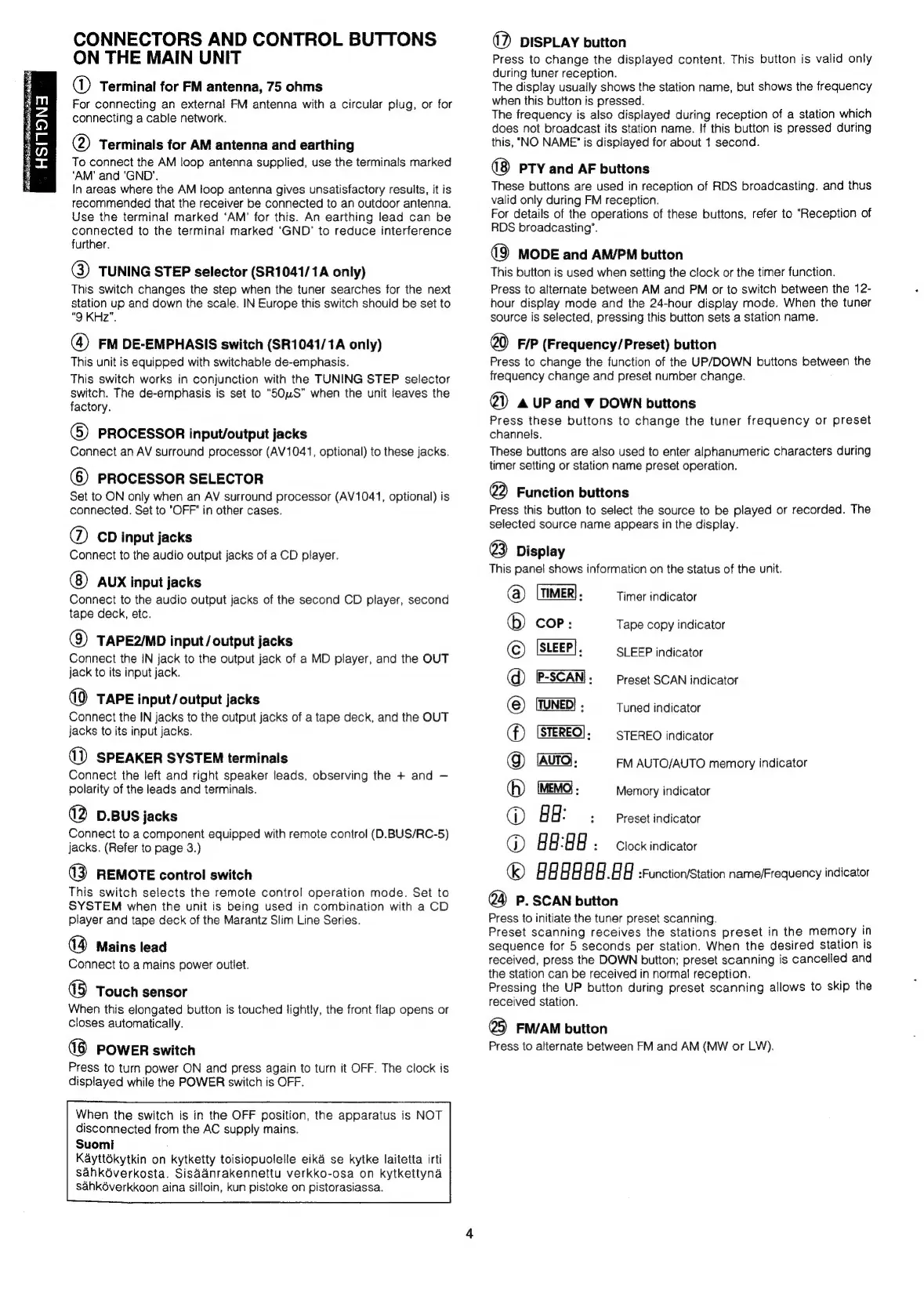

CONNECTORS
AND
CONTROL
BUTTONS
ON
THE
MAIN
UNIT
@
Terminal
for
FM
antenna,
75
ohms
For
connecting
an
external
FM
antenna
with
a
circular
plug,
or
for
connecting
a
cable
network.
@)
Terminals
for
AM
antenna
and
earthing
To
connect
the
AM
loop
antenna
supplied,
use
the
terminals
marked
‘AM’
and
‘GND.
In
areas
where
the
AM
loop
antenna
gives
unsatisfactory
results,
it
is
recommended
that
the
receiver
be
connected
to
an
outdoor
antenna.
Use
the
termina!
marked
‘AM’
for
this.
An
earthing
lead
can
be
connected
to
the
terminal
marked
‘GND’
to
reduce
interference
further.
@)
TUNING
STEP
selector
(SR1041/1A
only)
This
switch
changes
the
step
when
the
tuner
searches
for
the
next
station
up
and
down
the
scale.
IN
Europe
this
switch
should
be
set
to
“9
KHz”.
@
FM
DE-EMPHASIS
switch
(SR1041/1A
only)
This
unit
is
equipped
with
switchable
de-emphasis.
This
switch
works
in
conjunction
with
the
TUNING
STEP
selector
switch.
The
de-emphasis
is
set
to
“50uS"
when
the
unit
leaves
the
factory.
©)
PROCESSOR
input/output
jacks
Connect
an
AV
surround
processor
(AV1041,
optional)
to
these
jacks.
©
PROCESSOR
SELECTOR
Set
to
ON
only
when
an
AV
surround
processor
(AV1041,
optional)
is
connected.
Set
to
"OFF"
in
other
cases.
©)
CD
input
jacks
Connect
to
the
audio
output
jacks
of
a
CD
player.
AUX
input
jacks
Connect
to
the
audio
output
jacks
of
the
second
CD
player,
second
tape
deck,
etc.
(9)
TAPE2/MD
input/output
jacks
Connect
the
IN
jack
to
the
output
jack
of
a
MD
player,
and
the
OUT
jack
to
its
input
jack.
a
TAPE
input/output
jacks
Connect
the
IN
jacks
to
the
output
jacks
of
a
tape
deck,
and
the
OUT
jacks
to
its
input
jacks.
()
SPEAKER
SYSTEM
terminals
Connect
the
left
and
right
speaker
leads,
observing
the
+
and
—
polarity
of
the
leads
and
terminals.
(2
D.BUs
jacks
Connect
to
a
component
equipped
with
remote
control
(D.BUS/RC-5)
jacks.
(Refer
to
page
3.)
@3
REMOTE
control
switch
This
switch
selects
the
remote
control
operation
mode.
Set
to
SYSTEM
when
the
unit
is
being
used
in
combination
with
a
CD
player
and
tape
deck
of
the
Marantz
Slim
Line
Series.
@
Mains
lead
Connect
to
a
mains
power
outlet.
iE)
Touch
sensor
When
this
elongated
button
is
touched
lightly,
the
front
flap
opens
or
closes
automatically.
(8
POWER
switch
Press
to
turn
power
ON
and
press
again
to
turn
it
OFF.
The
clock
is
displayed
while
the
POWER
switch
is
OFF.
When
the
switch
is
in
the
OFF
position,
the
apparatus
is
NOT
disconnected
from
the
AC
supply
mains.
Suomi
Kayttokytkin
on
kytketty
toisiopuolelle
eika
se
kytke
laitetta
irti
sahkéverkosta.
Sisdanrakennettu
verkko-osa
on
kytkettyna
sahkéverkkoon
aina
silloin,
kun
pistoke
on
pistorasiassa.
(2
DISPLAY
button
Press
to
change
the
displayed
content.
This
button
is
valid
only
during
tuner
reception.
The
display
usually
shows
the
station
name,
but
shows
the
frequency
when
this
button
is
pressed.
The
frequency
is
also
displayed
during
reception
of
a
station
which
does
not
broadcast
its
station
name.
If
this
button
is
pressed
during
this,
“NO
NAME"
is
displayed
for
about
1
second.
(8
PTY
and
AF
buttons
These
buttons
are
used
in
reception
of
RDS
broadcasting.
and
thus
valid
only
during
FM
recepticn.
For
details
of
the
operations
of
these
buttons,
refer
to
"Reception
of
RDS
broadcasting’.
(9
MODE
and
AM/PM
button
This
button
is
used
when
setting
the
clock
or
the
timer
function.
Press
to
alternate
between
AM
and
PM
or
to
switch
between
the 12-
hour
display
mode
and
the
24-hour
display
mode.
When
the
tuner
source
is
selected,
pressing
this
button
sets
a
station
name.
2
F/P
(Frequency/Preset)
button
Press
to
change
the
function
of
the
UP/DOWN
buttons
between
the
frequency
change
and
preset
number
change.
>)
A
UP
and
V
DOWN
buttons
Press
these
buttons
to
change
the
tuner
frequency
or
preset
channels.
These
buttons
are
also
used
to
enter
alphanumeric
characters
during
timer
setting
or
station
name
preset
operation.
@
Function
buttons
Press
this
button
to
select
the
source
to
be
played
or
recorded.
The
selected
source
name
appears
in
the
display.
@
Display
This
panel
shows
information
on
the
status
of
the
unit.
(a)
[TIMER],
Timer
indicator
©
COP:
Tape
copy
indicator
©
[SLEEP]:
LEP
indicator
qd)
P-SCAN
Preset
SCAN
indicator
©
(TUNED)
Tuned
indicator
(f)
[STEREO]:
—
sTEREO
indicator
©
AUTO):
FM
AUTO/AUTO
memory
indicator
(hh)
(MEMO)
:
Memory
indicator
Preset
indicator
Clock
indicator
&
8
|
|
8 8
|
A
H
:Function/Station
name/Frequency
indicator
@)
P.
SCAN
button
Press
to
initiate
the
tuner
preset
scanning.
;
Preset
scanning
receives
the
stations
preset
in
the
memory
in
sequence
for
5
seconds
per
station.
When
the
desired
station
is
received,
press
the
DOWN
button;
preset
scanning
is
cancelled
and
the
station
can
be
received
in
normal
reception.
Pressing
the
UP
button
during
preset
scanning
allows
to
skip
the
received
station.
@
FM/AM
button
Press
to
alternate
between
FM
and
AM
(MW
or
LW).
