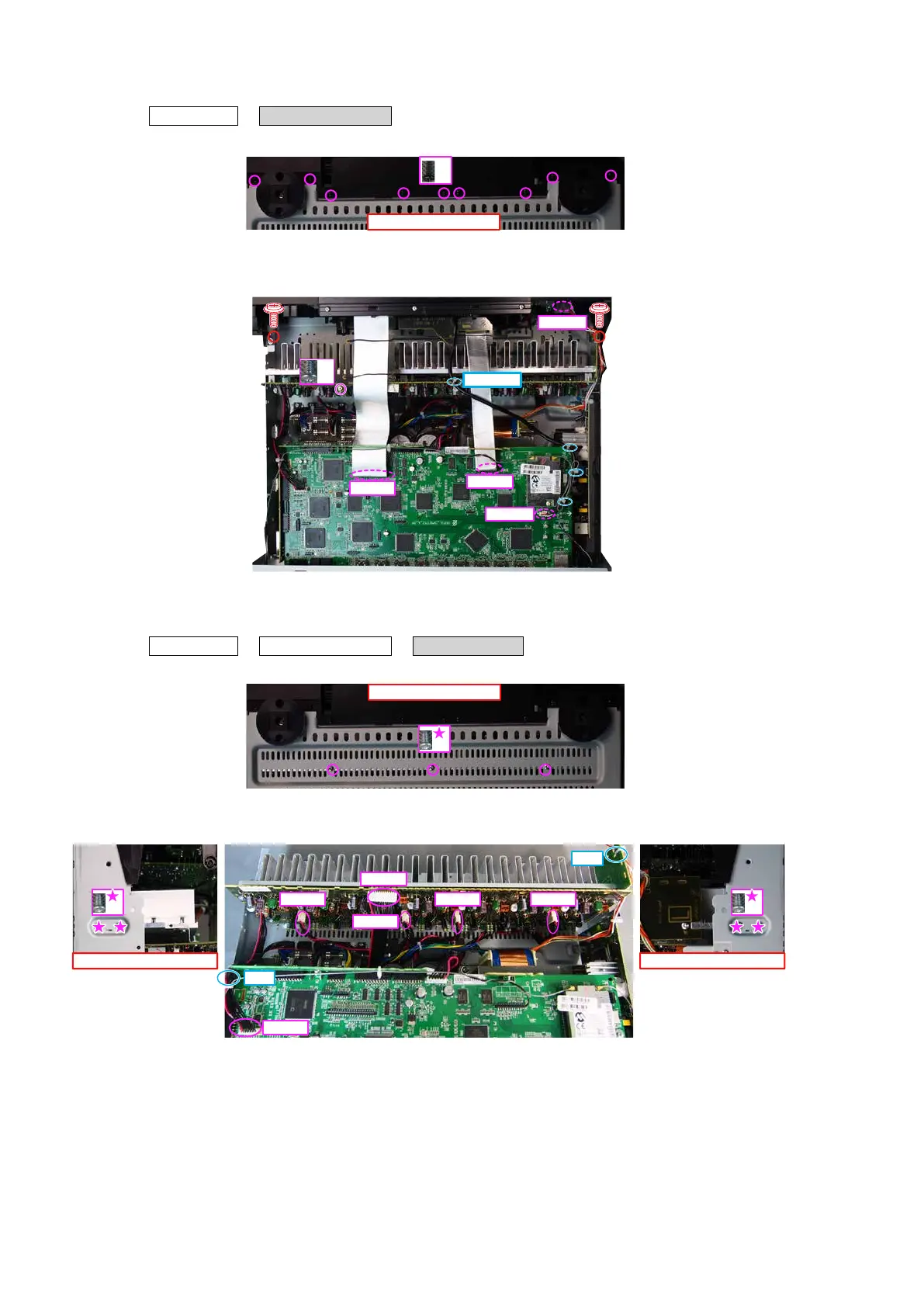

Marantz SR6010 - Front Panel Assy; Radiator Assy

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Cut the wire clamp, then remove the connector. Remove the FFC.
2. RADIATOR ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
→
RADIATOR ASSY
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wire. Remove the screws.
View from the bottom
x5
FFC
FFC
CN102
CN104
x1
CUT x4
Shooting direction: A
x3
↑Shooting direction: D↑
↑Shooting direction: C↑
x2 x2
CN461
CN701 CN702 CN704
CN703
CN704
CUT
CUT
14
