Marantz SR6010 - Video Pcb; Input Hdam Pcb

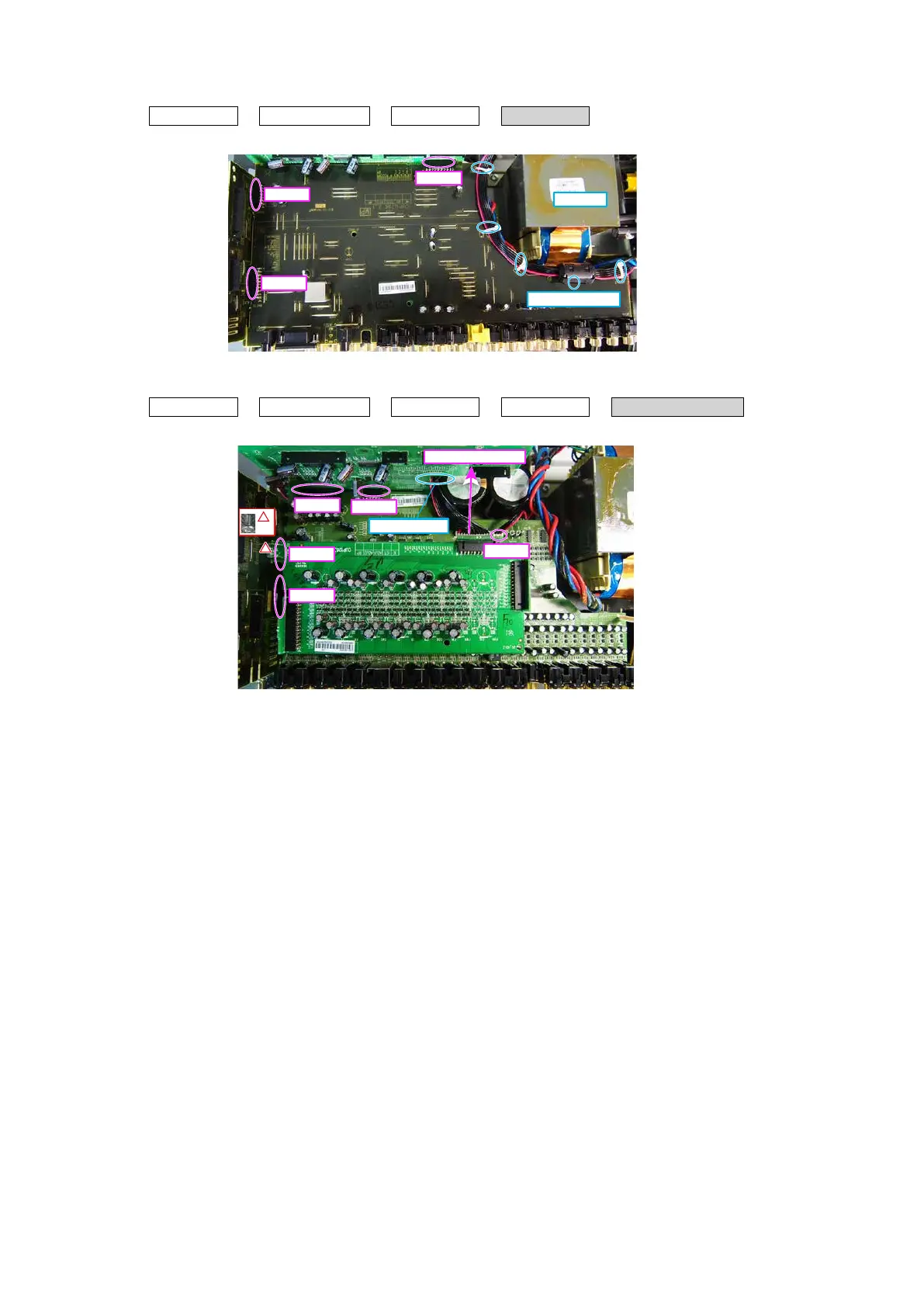

4. VIDEO PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
(1) Cut the wire clamp, then remove the connector. PCB HOLDER を外します。
5. INPUT HDAM PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
→
INPUT HDAM PCB
(1) Remove the screws. Remove the connector.
BN21B
BN28B
BN27B
CUT x4
PCB HOLDER
x1
BN26C
BN24C
BN64C
BN23C
CN706
From AMP PCB
STYLE PIN
16
