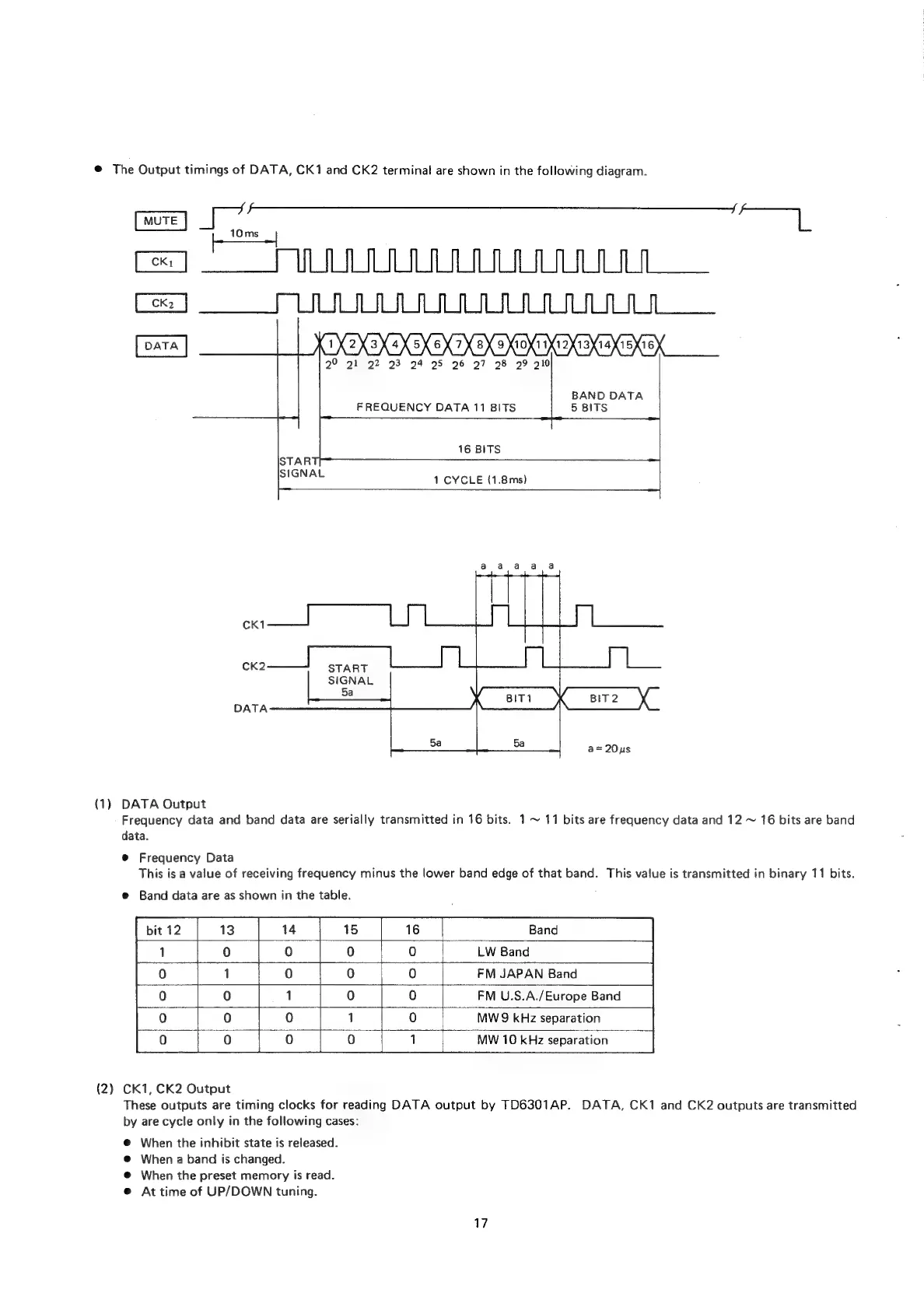

The
Output
timings
of
DATA,
CK1
and
CK2
terminal
are
shown
in
the
following
diagram.
(1)
DATA
Output
BAND
DATA
5
BITS
16
BITS
1
CYCLE
(1.8ms)
@aaaéa
BIT!
a=20us
Frequency
data
and
band
data
are
serially
transmitted
in
16
bits.
1
~
11
bits
are
frequency
data
and
12
~
16
bits
are
band
data.
@
Frequency
Data
This
is
a
value
of
receiving
frequency
minus
the
lower
band
edge
of
that
band.
This
value
is
transmitted
in
binary
11
bits.
e@
Band
data
are
as
shown
in
the
table.
Band
LW
Band
FM
JAPAN
Band
FM
U.S.A./Europe
Band
MW
9
kHz
separation
(2)
CK1,
CK2
Output
MW
10
kHz
separation
These
outputs
are
timing
clocks
for
reading
DATA
output
by
TD6301AP.
DATA,
CK1
and
CK2
outputs
are
transmitted
by
are
cycle
only
in
the
following
cases:
@
When
the
inhibit
state
is
released.
@
When
a
band
is
changed.
@
When
the
preset
memory
is
read.
®
At
time
of
UP/DOWN
tuning.
