11.

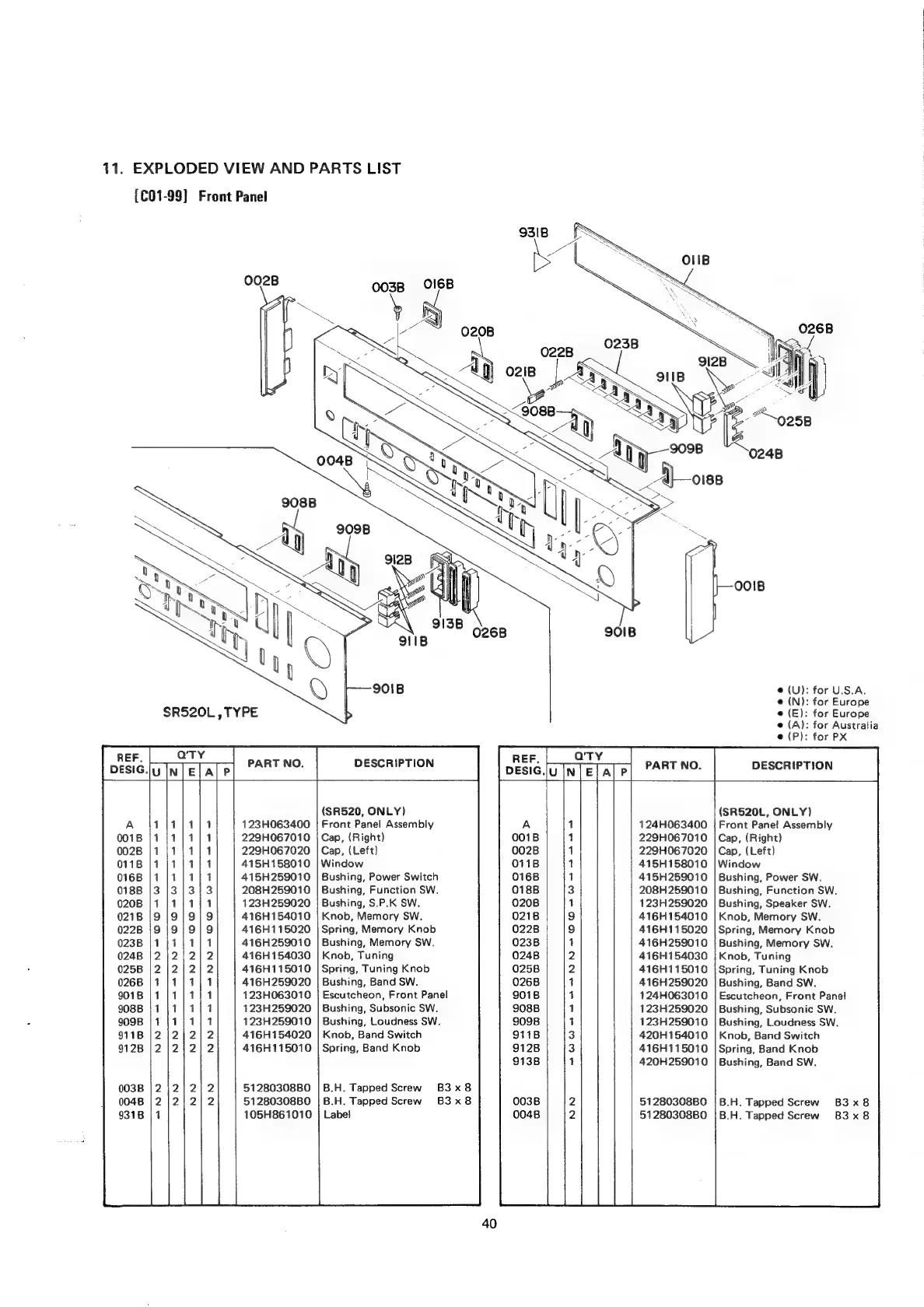

EXPLODED VIEW AND PARTS LIST
{C01-99] Front Panel
for U.S.A.
for Europe
for Europe
e (A): for Australia
e (P): for PX
PART NO. DESCRIPTION PART NO. DESCRIPTION
th
(SR520, ONLY) (SR520L, ONLY)
123H063400 | Front Panel Assembly 124H063400 | Front Pane! Assembly
229HO67010 | Cap, (Right) 229H067010 | Cap, (Right)
229H067020 | Cap, (Left) 229H067020 | Cap, (Left)
415H158010 | Window 415H158010 | Window
415H259010 | Bushing, Power Switch 415H259010 | Bushing, Power SW.
208H259010 | Bushing, Function SW. 208H259010 | Bushing, Function SW.
123H259020 | Bushing, S.P.K SW. 123H259020 | Bushing, Speaker SW.
416H154010 | Knob, Memory SW. 416H154010 | Knob, Memory SW.
416H115020 | Spring, Memory Knob 416H115020 | Spring, Memory Knob
416H259010 | Bushing, Memory SW. 416H259010 | Bushing, Memory SW.
416H154030 | Knob, Tuning 416H154030 | Knob, Tuning
416H115010 | Spring, Tuning Knob 416H115010 | Spring, Tuning Knob
416H259020 | Bushing, Band SW. 416H259020 | Bushing, Band SW.
123HO63010 j Escutcheon, Front Panel 124H063010 | Escutcheon, Front Panel
123H259020 | Bushing, Subsonic SW. 123H259020 | Bushing, Subsonic SW.
123H259010 | Bushing, Loudness SW. 123H259010 | Bushing, Loudness SW.
416H154020 | Knob, Band Switch 420H154010 | Knob, Band Switch
416H115010 | Spring, Band Knob 416H115010 | Spring, Band Knob
420H259010 | Bushing, Band SW.
NN BW] ]2VN OO HAW Bae ae
NN SF Sem aBNNHOW HWA eeeo NN 2 AB ANNH OO 2 Ww AA an ae NN PHB eBNN— OOP WA aae
“WW? Be BMH 00 AWA Aaa =
51280308B0 |B.H. Tapped Screw B3x8
51280308B0 |B.H. Tapped Screw 83x8 51280308B0 |B.H. Tapped Screw B3x8
105H861010 | Labet 51280308B0 |B.H. Tapped Screw B3x8
