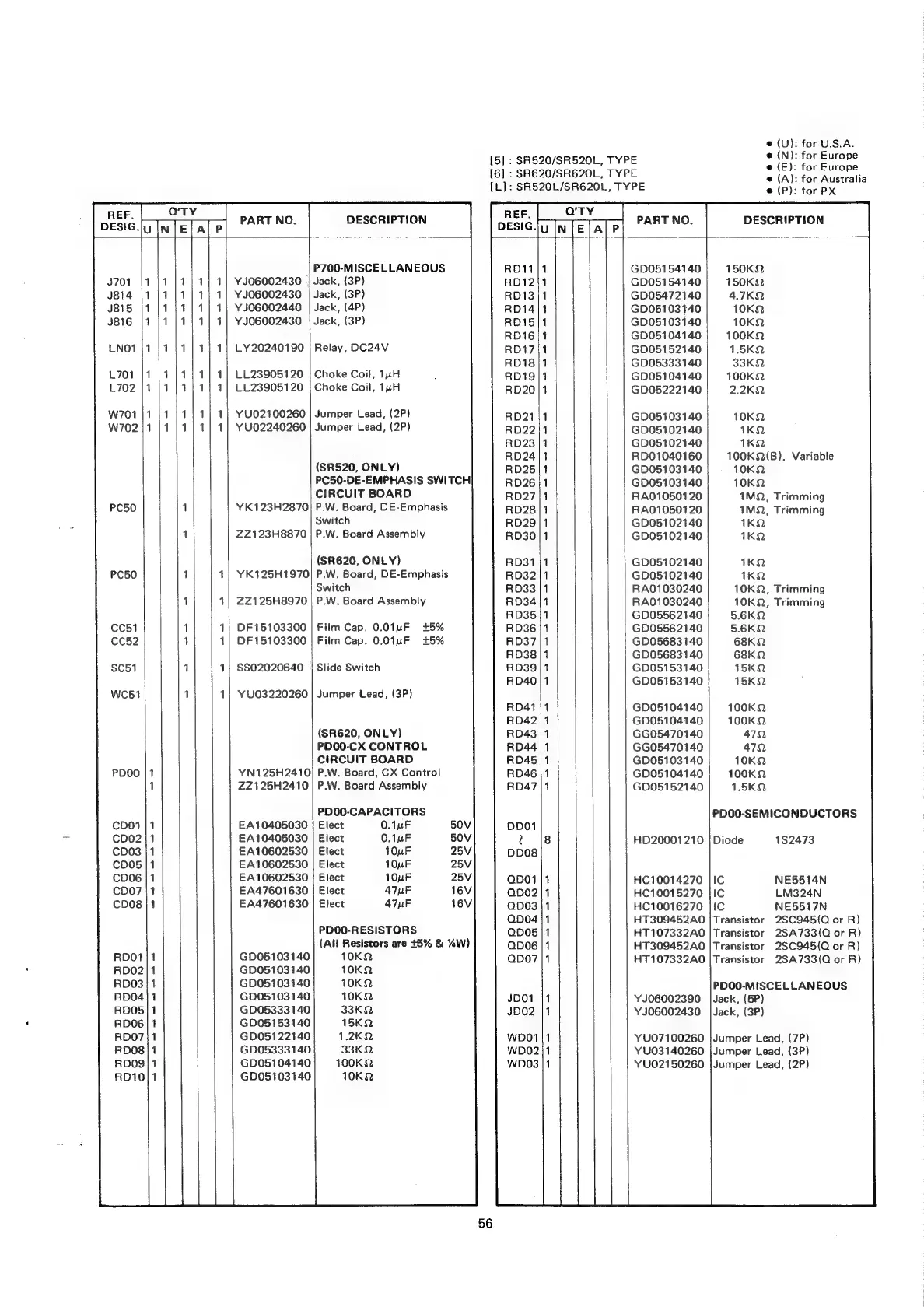

Marantz SR620 - Page 49

e@ (U): for U.S.A.
{5] : SR520/SR520L, TYPE 4 a hs ld
[6] : SR620/SR620L, TYPE Oh Uree
@ (A): for Australia
[L] : SR520L/SR620L, TYPE e (P): for PX
PART NO. DESCRIPTION PART NO. DESCRIPTION
P700-MISCELLANEOUS
YJ06002430 j Jack, (3P)
YJ06002430 | Jack, (3P)
YJ06002440 | Jack, (4P)
YJ06002430 | Jack, (3P)
GDO05154140 150KQ
GD05154140 150KQ
GD05472140 4.7K2
GD05103140 10KQ
GD05103140 10KQ
GD05104140 100KQ
GD05152140 1.5KQ
GD05333140 33K
GD05104140 100KQ
GD05222140 2.2KQ
LY 20240190 | Relay, DC24V
LL23905120 | Choke Coil, 1uH
LL23905120 | Choke Coil, 1#H
YU02100260 | Jumper Lead, (2P)
GD05103140 10K2
YU02240260 | Jumper Lead, (2P)
GD05102140 1KQ
GD05102140 1KQ
RD0O1040160 100K2(B), Variable
GD05103140 10KQ2
GD05103140 10KQ
RA010501 20 1MQ, Trimming
RA010501 20 1MQ, Trimming
GD05102140 1KQ
GD05102140 1KQ
(SR520, ONLY)
PC50-DE-EMPHASIS SWITCH
CIRCUIT BOARD
YK123H2870} P.W. Board, DE-Emphasis
Switch
ZZ123H8870 | P.W. Board Assembly
(SR620, ONLY)
YK125H1970| P.W. Board, DE-Emphasis
Switch
ZZ125H8970 | P.W. Board Assembly
GD05102140 1KQ
GD05102140 1KQ
RA01030240 10KQ, Trimming
RA01030240 10KQ, Trimming
GD05562140 5.6KQ
GD05562140 5.6K2,
GD05683140 68K
GD05683140 68K2
GD05153140 15KQ
GD05153140 15KQ
DF15103300 | Film Cap. 0.01nF +5%
DF15103300 | Film Cap. 0.01nF +5%
$S02020640 | Slide Switch
YU03220260 | Jumper Lead, (3P)
GDO05104140 100KQ
GD05104140 100KQ
GG05470140 472
GG05470140 472
GD05103140 10KQ
GD05104140 100KQ
GD05152140 1.5KQ
(SR620, ONLY}
PDOO-CX CONTROL
CIRCUIT BOARD
YN125H2410} P.W. Board, CX Control
ZZ125H2410 | P.W. Board Assembly
PDO0O-CAPACITORS
EA10405030 | Elect 0.1nF
EA10405030 | Elect 0.1pnF
EA10602530 | Elect 1OuF
EA10602530 | Elect 10uF
EA10602530 | Elect 10uF
E£A47601630 | Elect 47yF
EA47601630 | Elect 47uF
PDO00-SEMICONDUCTORS
HD20001210 | Diode 182473
HC10014270 NE5514N
HC10015270 LM324N
HC10016270 NE5517N
HT309452A0 |Transistor 2SC945(Q or R)
HT107332A0 |Transistor 2SA733(Q or R)
HT309452A0 |Transistor 2SC945(Q or R)
HT107332A0 |Transistor 2SA733(Q or R)
PDOO-RESISTORS
{All Resistors are +5% & %W)
GD05103140 10K
GD05103140 10KQ
GD05103140 10K
GDO05103140 10KQ
GD05333140 33KQ
GD05153140 15K
GD05122140 1.2KQ2
GD05333140 33K
GD05104140 100KQ
GD05103140 10KQ
PDOO-MISCELLANEOUS
YJ06002390 |Jack, (5P)
YJ06002430 |Jack, (3P)
YU07100260 |Jumper Lead, (7P)
YU03140260 |Jumper Lead, (3P)
YU02150260 |Jumper Lead, (2P)
pr eee
