2. HEAT SINK ASSY

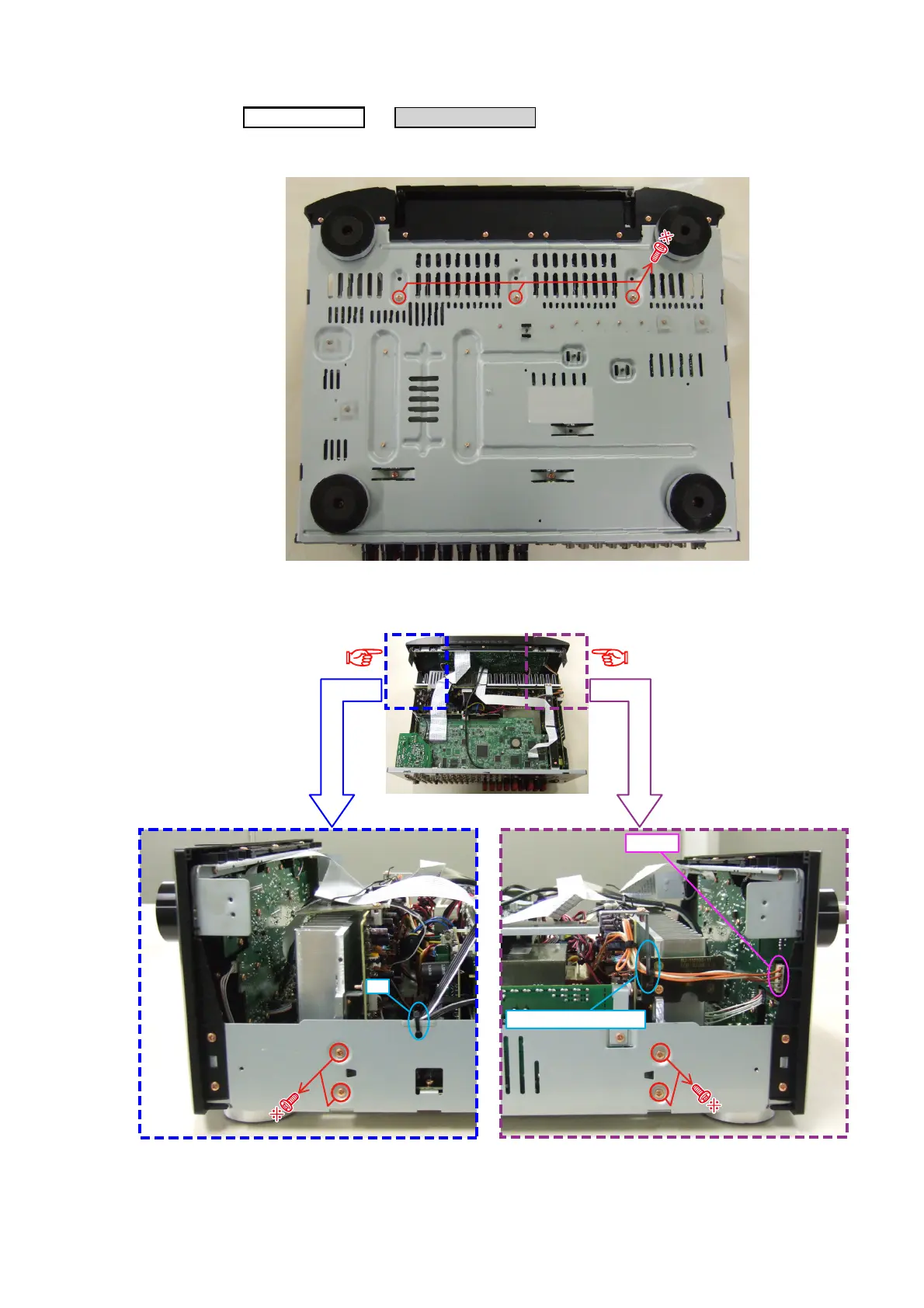

(1) Remove the screws.
(2) Cut wire clamp band, then remove the screws. Disconnect the connector wires.
CABINET TOP
HEAT SINK ASSY
→
Proceeding :
View from bottom
STYLEPIN : Loose
N1001
cut
Direction of
photograph: D
Direction of
photograph: C
