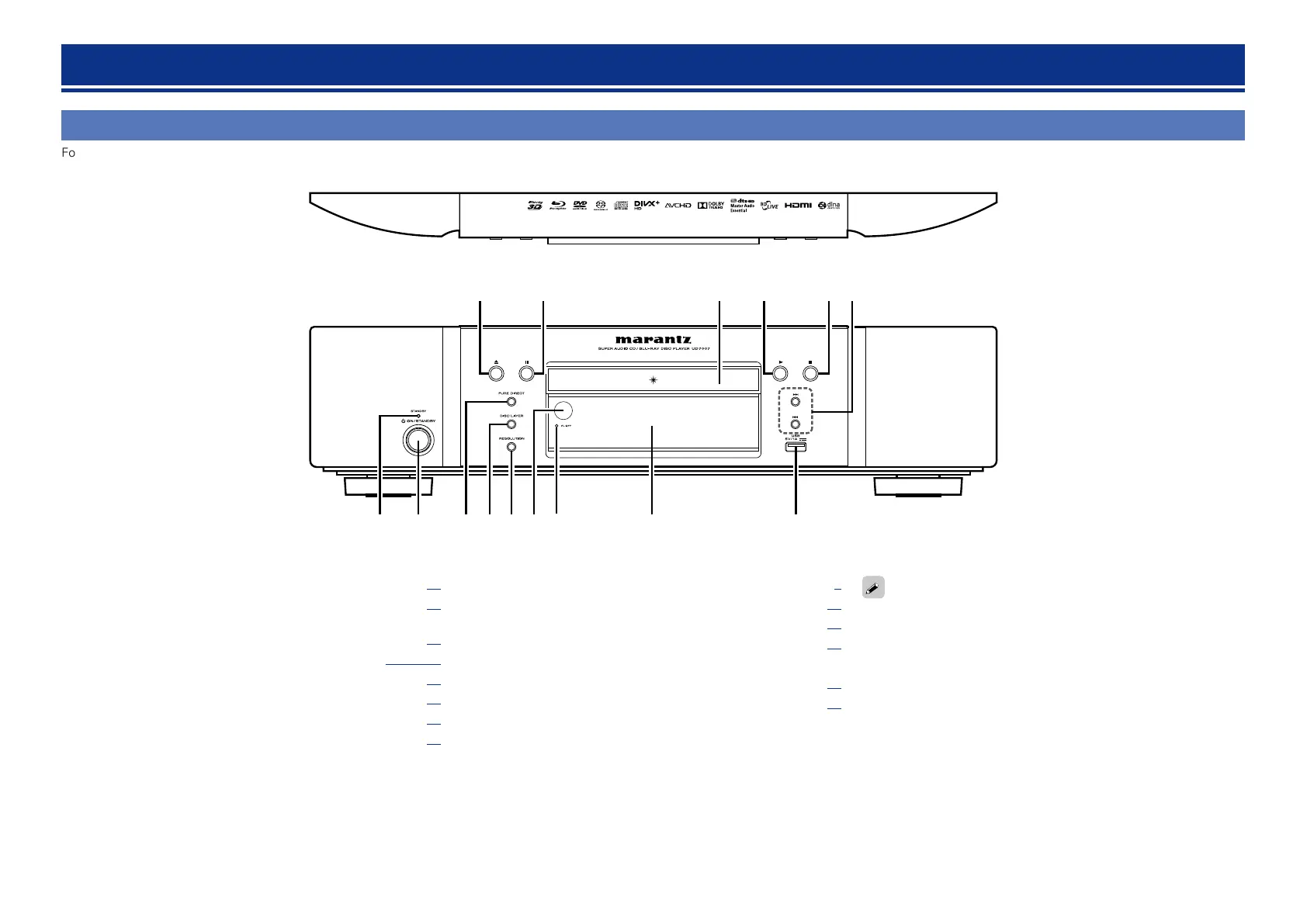

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q re yw t
u
i o
Q3
Q0
Q1Q2Q4Q5
q STANDBY indicator ································································· (13)
w Power operation button (X ON/STANDBY) ························· (13)
Turns power to this unit on and off (standby).
e PURE DIRECT button ······························································ (28)
r DISC LAYER button ····················································· (16, 17, 18)
t RESOLUTION button ······························································ (29)
y Remote control sensor ··························································· (51)
u FL OFF indicator ······································································ (28)
i Display ······················································································ (48)
o USB port ····················································································· (9)
Q0 Reverse-skip/Forward-skip buttons (8, 9) ·················· (24)
Q1 Stop button (2) ······································································· (23)
Q2 Play button (1) ········································································ (16)
Q3 Disc tray
Q4 Pause button (3) ····································································· (23)
Q5 Disc tray open/close button (5) ············································· (16)
If Q2 or Q5 is pressed when the power is in standby, the power is
turned on.
