Rear panel
For buttons not explained here, see the page indicated in parentheses ( ).

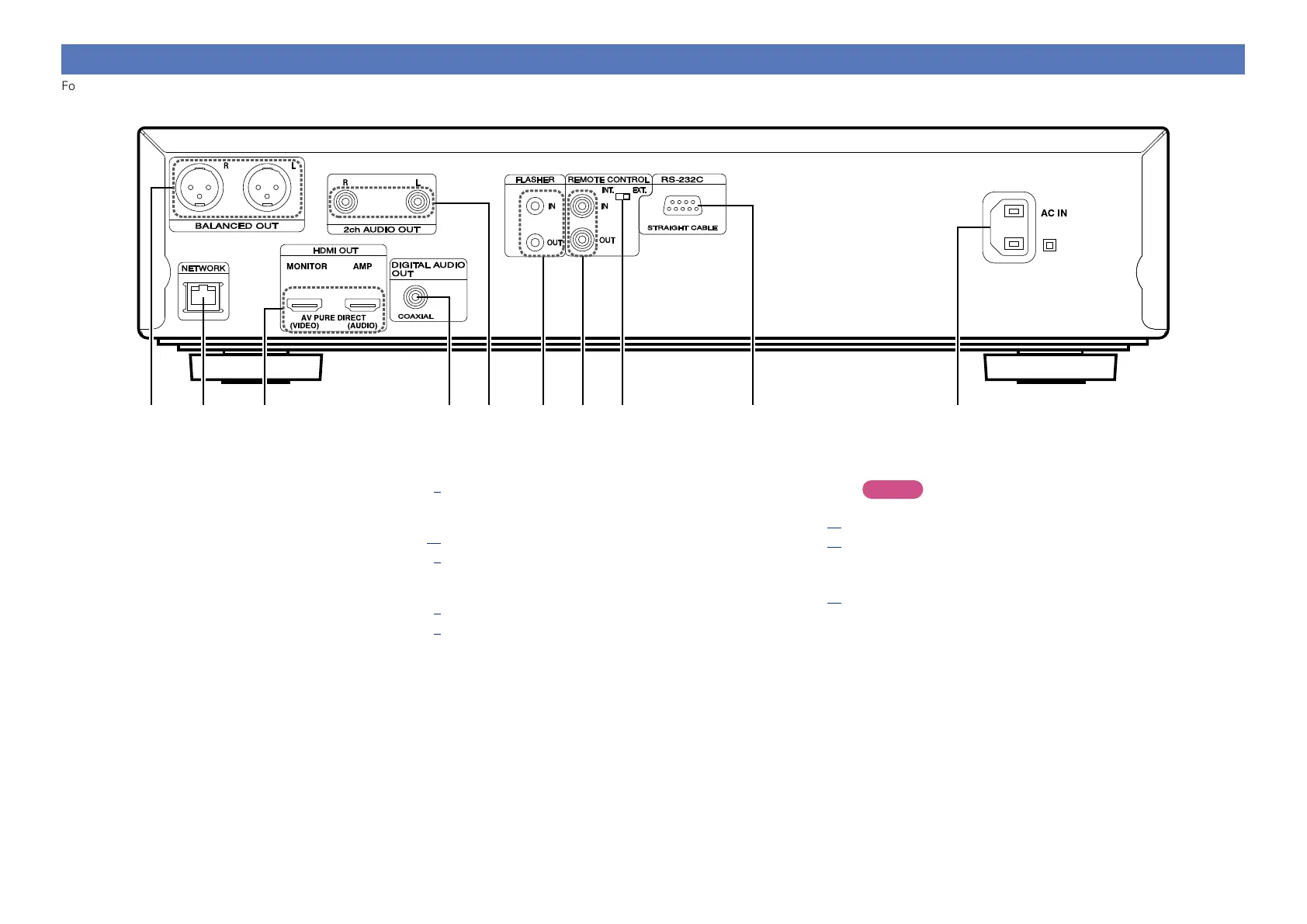

w eq r t y u i o Q0
q BALANCED OUT connectors ···················································· (8)
For software recorded in multi-channel, analog signals that have
been down-mixed into 2 channels are output.
w NETWORK connector ······························································ (10)
e HDMI OUT connectors ······························································ (7)
MONITOR (VIDEO) OUT
AMP (AUDIO) OUT
r DIGITAL AUDIO OUT (COAXIAL) connector ··························· (9)
t 2ch AUDIO OUT connectors ····················································· (8)
For software recorded in multi-channel, analog signals that have
been down-mixed into 2 channels are output.
y FLASHER IN/OUT connectors
Connect an external control device or other device for servicing.
u REMOTE CONTROL connectors ············································· (12)
i REMOTE CONTROL switch (INT./EXT.) ································ (12)
o RS-232C connector
Extension connector for future use.
Q0 AC inlet (AC IN) ········································································ (12)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
