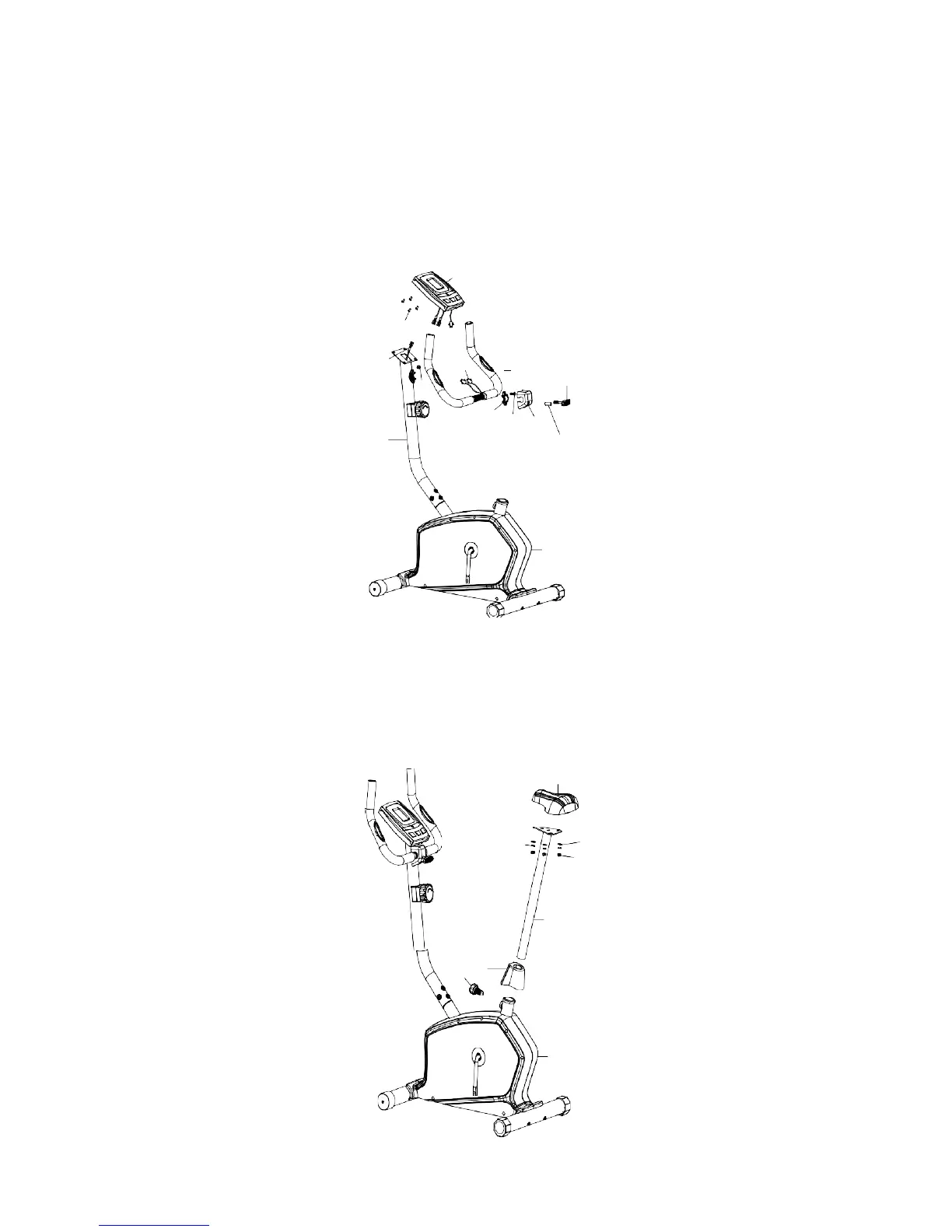

STEP 3
Attach the handlebar (05) to front of the front post (4), secure using one clip (25), one allen
bolt (22), one cover for clamp (37), one bushing(19) and one T Type Knob (21).
Insert the lower pulse (20) through Grommet (32) on front post (04) and pull the hand pulse
wire (20) out of front post (04).
Connect lower pulse wire (20) with hand pulse wire from computer (06).
Connect middle computer wire (33) to back of upper computer wire from computer (06).
Slide the computer (06) onto the front post. Secure four screw for computer (27).
6
27
33
20
32
21
25
22
37
4
19
1
STEP 4
Attach the seat (08) to the seat post (07), Secure using three washers (12), three spring
washers (13) and three nylon nuts (14) found under neath the seat.
Put the seat post (7) into the cover for seat post (17).Insert the seat post (7) into main
frame(01), line up the holes and secure the seat in position with the quick release knob (11).
The correct height for the seat can be adjusted after the bike is fully assembled.
8
13
12
14
7
11
17
1
