Marcy Fitness www.marcyfitness.co.uk
SMITH CAGE ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Insert a Base Frame (#5) into the Rear Left Vertical Frame (#3). Secure it with two M10 x
¾” Allen Bolts (#90) and two Ø ¾” Washers (#107).
C.) Repeat B to install the other Base Frame to Rear Right Vertical Frame (#4).
D.) Attach Rear Base Frame (#8) to Rear Left and Right Vertical Frame. Secure each end
with two M10 x 2 ½” Allen Bolts (#95), four Ø ¾” Washers (#107), and two M10 Aircraft
Nuts (#110).
E.) Repeat D to connect Rear Top Beam (#6) to Rear Left and Right Vertical Frame.

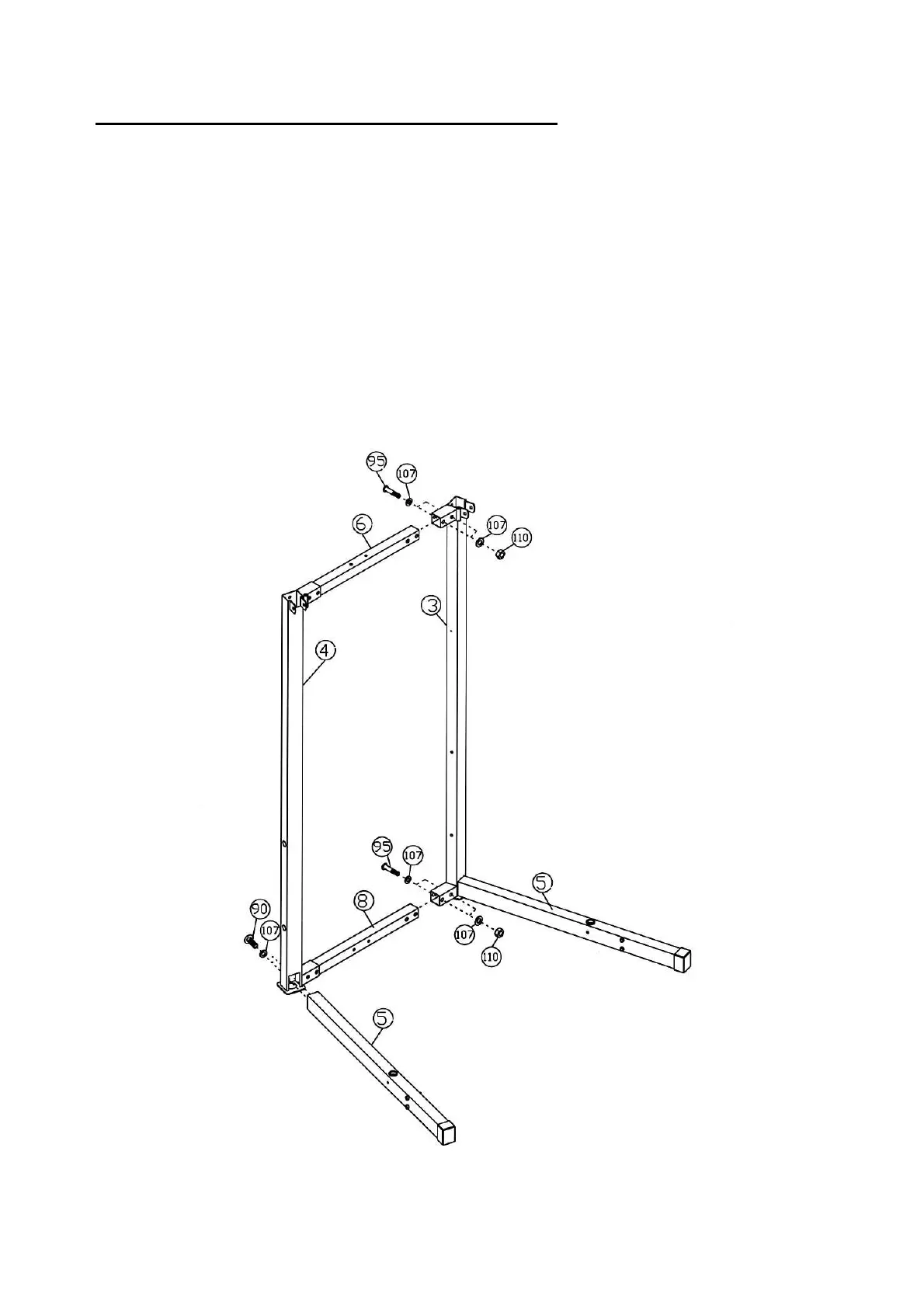

DIAGRAM 1
8
