Marcy ECLIPSE RS7000 - Multi-Purpose Bench Assembly Instructions

Marcy Fitness www.marcyfitness.co.uk
MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended that this machine be assembled by two or
more people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Post (#2) to the Front Stabilizer (#9). Secure it with two M10 x 2 ½” Carriage
Bolts (#28), two Ø ¾” Washers (#35), and two M10 Aircraft Nuts (#37).
C.) Attach the Main Frame (#1) to Front Post. Secure it with two M10 x 2 ¾” Carriage Bolts
(#25), two Ø ¾” Washers (#35), and two M10 Aircraft Nut (#37) from side. Secure it with one
M10 x 2 ½” Carriage Bolt (#28), one Ø ¾” Washer (#35), and one M10 Aircraft Nut (#37)
from top.
D.) Attach the other end of Main Frame to the Rear Stabilizer (#3). Secure it with two M10 x 2 ½”
Carriage Bolts (#28), two Ø ¾” Washers (#35), and two M10 Aircraft Nuts (#37).
E.) Securely tighten all Nuts and Bolts.

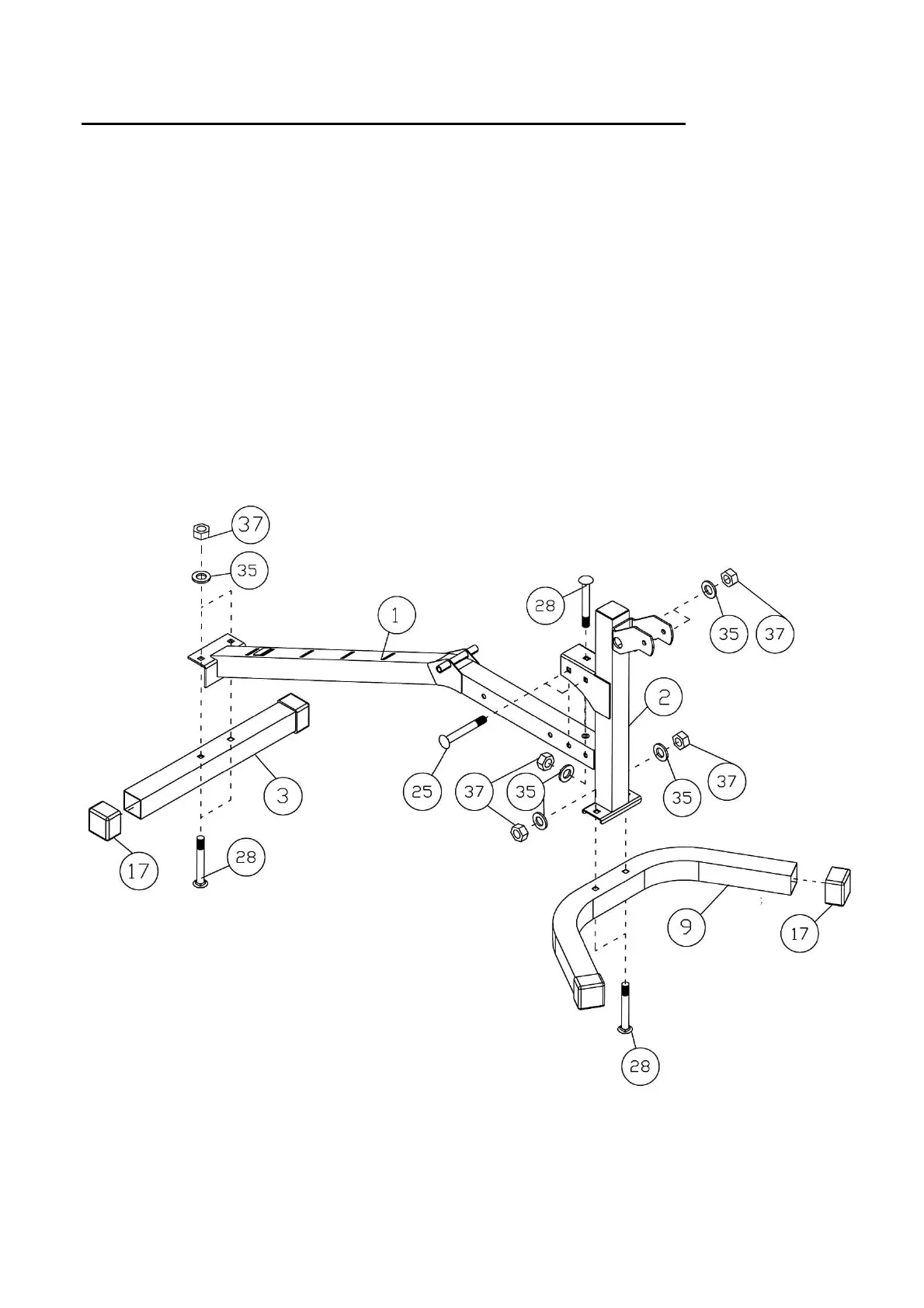

DIAGRAM 1
