STEP 2 (See Diagram 2)
A.) Attach the Incline Support (#8) to the middle side holes on the two Backrest Supports (#7). Secure
it with one M10 x 6 7/8” Allen Bolt (#26), two Ø ¾” Washers (#35), and one M10 Aircraft Nut (#37).
Do not tighten the Nut and Bolt yet.
B.) Attach the bottom side holes on Backrest Supports to the pivot on Main Frame (#1). Secure it with
one M10 x 6 7/8” Allen Bolt (#26), two Ø ¾” Washers (#35), and one M10 Aircraft Nut (#37).
Securely tighten Nut and Bolt in A & B.
C.) Attach two Seat Brackets (#4) to the Main Frame. Secure each Seat Bracket with one M8 x 2 ¾”
Allen Bolt (#27), two Ø 5/8” Washers (#36), and one M8 Aircraft Nut (#33).

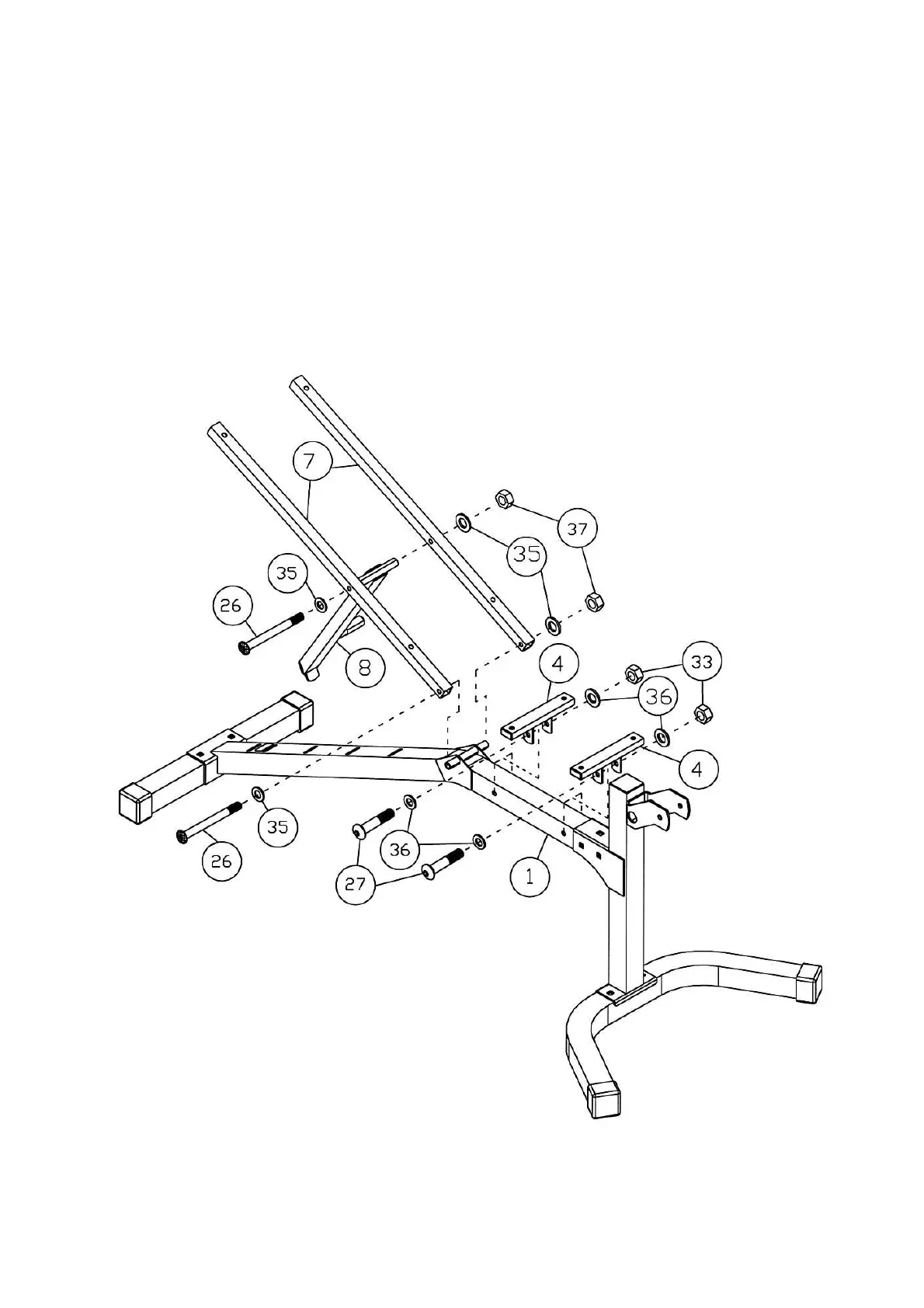

DIAGRAM 2
31
