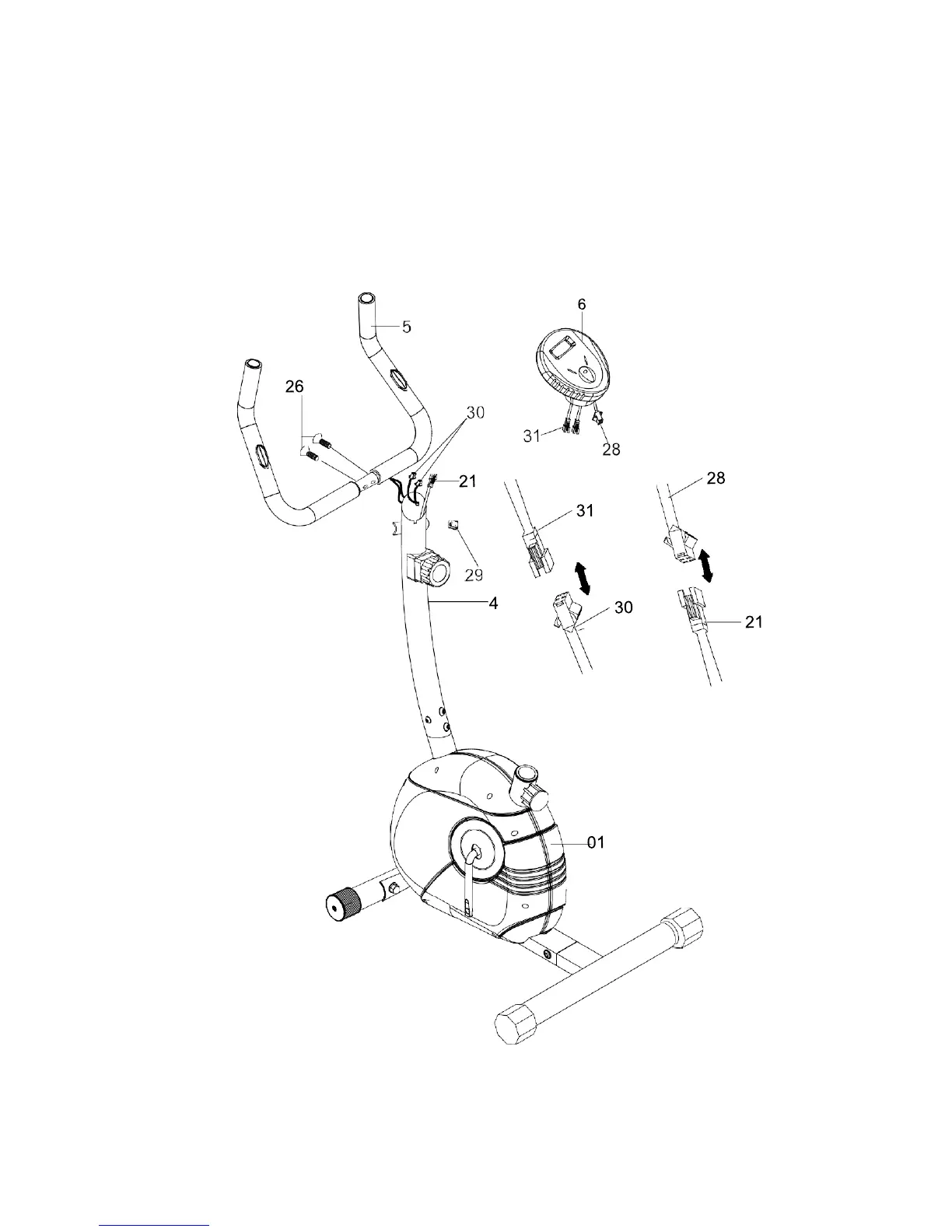

STEP 3
Attach the handlebar (05) to front of the front post (04), secure using two allen screw (26),
Insert the lower pulse (30) through grommet (29) on front post (04) and pull the middle
sensor wire (21) out of front post (04).
Connect lower pulse wire (30) with hand pulse wire (31) from computer (06).
Connect middle sensor wire (21) to back of upper sensor wire (28) from computer (06).
Slide the computer (06) onto the front post (04).
