STEP 1
ASSEMBLY INSTRUCTION

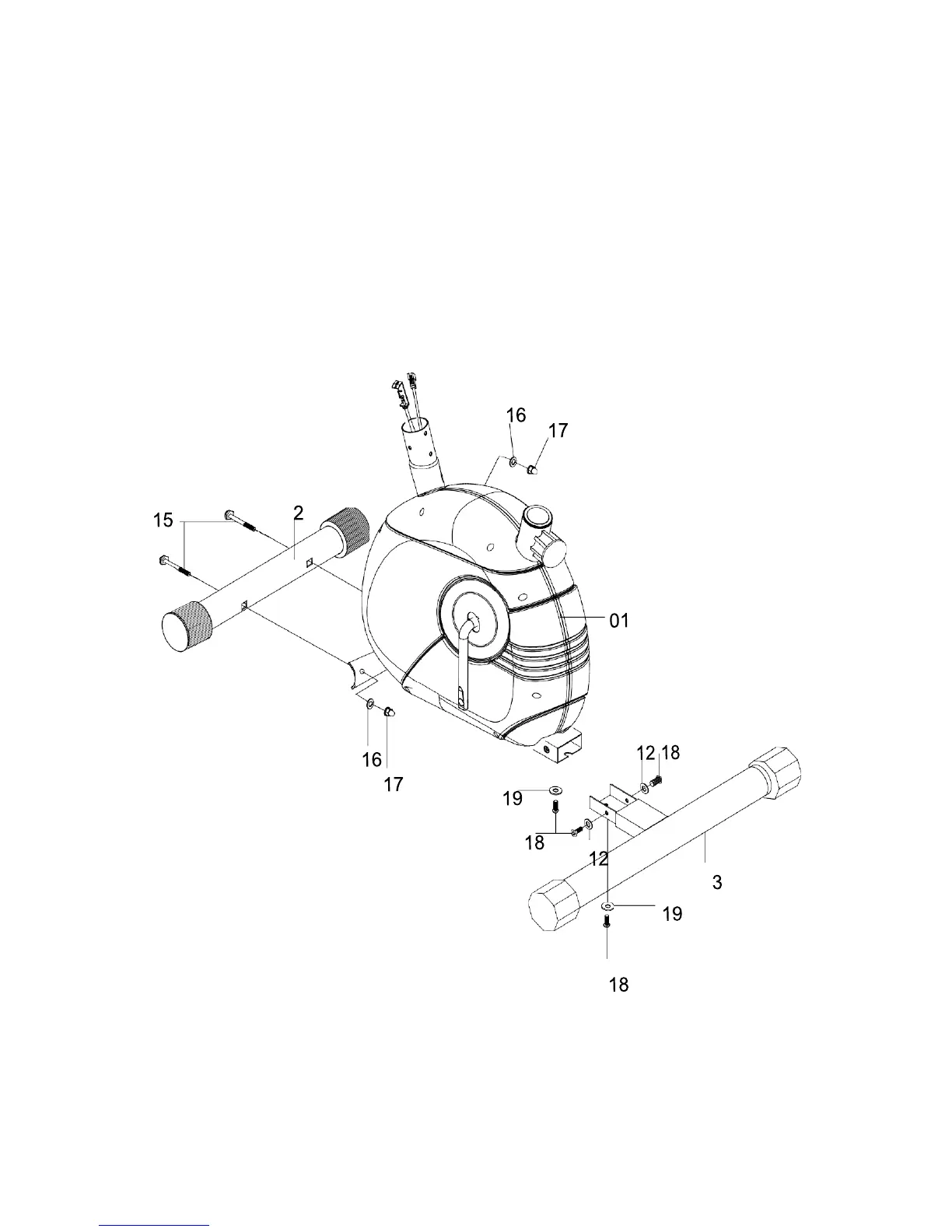

Attach the front stabilizer (02) to the main frame (01), Secure using two curved washers
(16), two domed nuts (17) and allen bolts (15).
Attach the rear stabilizer (03) to the main frame (01), Secure using two allen screws (18),
two washers (19) from bottom. Secure using two allen screws (18) and two washers (12)
from sides.
