www.puretecfitness.com
6

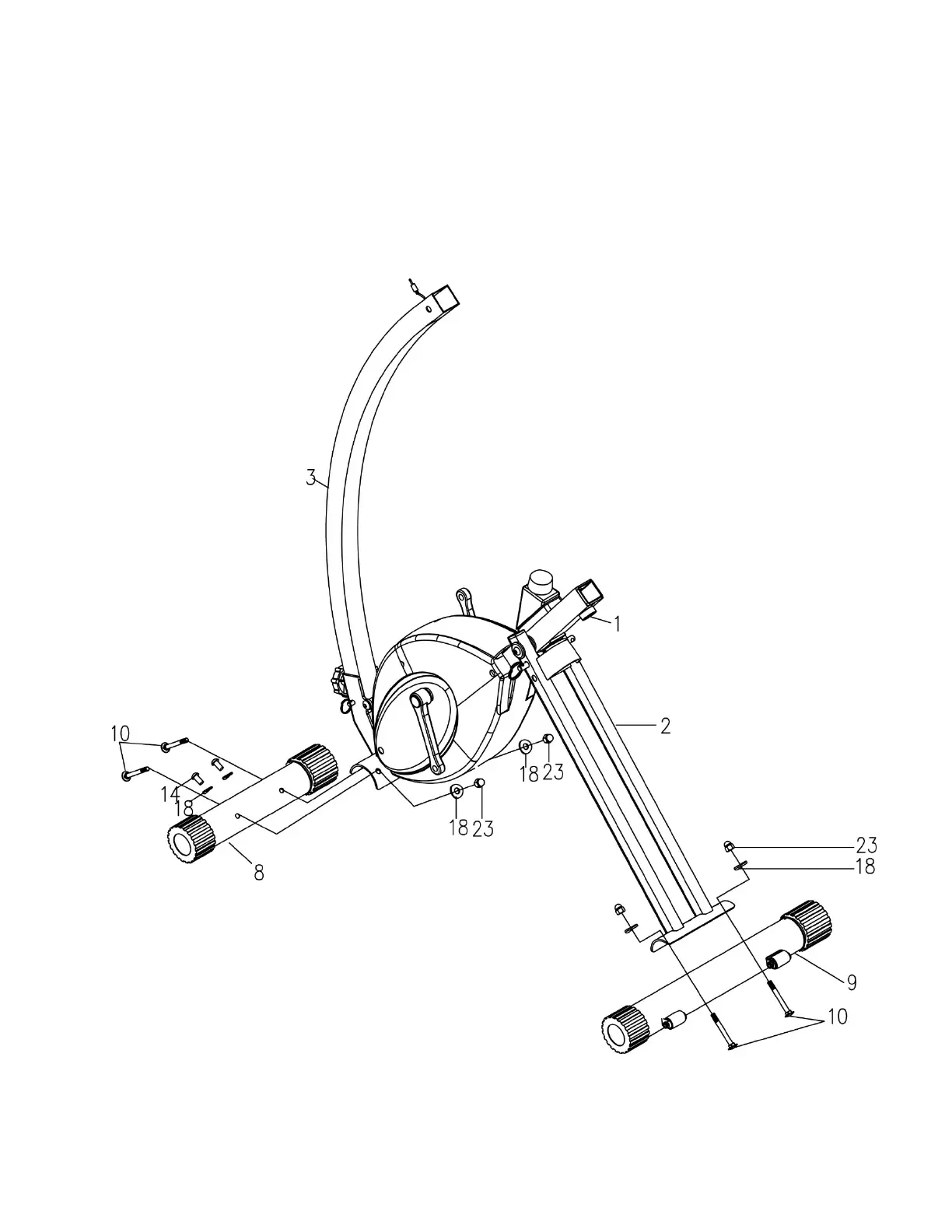

STEP 2
A.) Attach the Front Stabilizer (#8) to the bracket on bottom of Main Frame (#1). Secure it
with two M10 Carriage Bolt (#10), two Curved Washers (#18), two Domed Nuts (#23),
two M8 Allen Bolts (#14), and two Curved Washers (#18).
B.) Attach the Rear Stabilizer (#9) to the bracket on bottom of Rear Support (#2), Secure
it with two M8 Carriage Bolt (#10), two Curved Washers (#18), and two Domed Nuts
(#23).
