ASSEMBLY INSTRUCTION

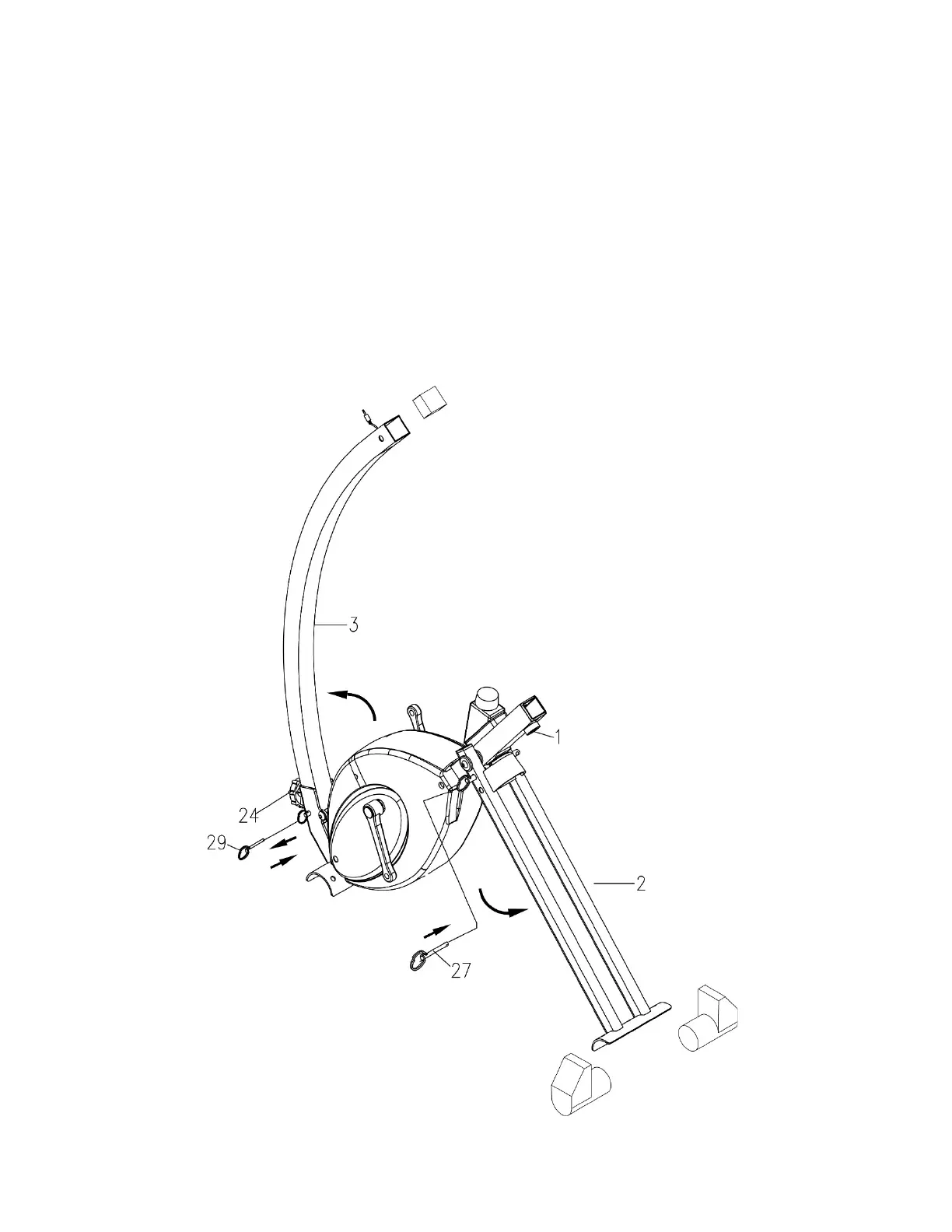

STEP 1
A). Remove the plastic protection caps from end of Rear Support (#2), remove protection
cap on top of Front Post (#3).
B.) Pull out the Front Post Lock Pin (#29). Loosen the Lock Knob (#24) on Front Post (#3);
pull Front Post forward and fasten the Lock Knob (#24). Insert back Front Post Lock Pin
(#29).
C.) Pull and extend the Rear Support (#2). Insert the Rear Support Lock Pin (#27) into the
upper hole to firmly lock Rear Support in position.
