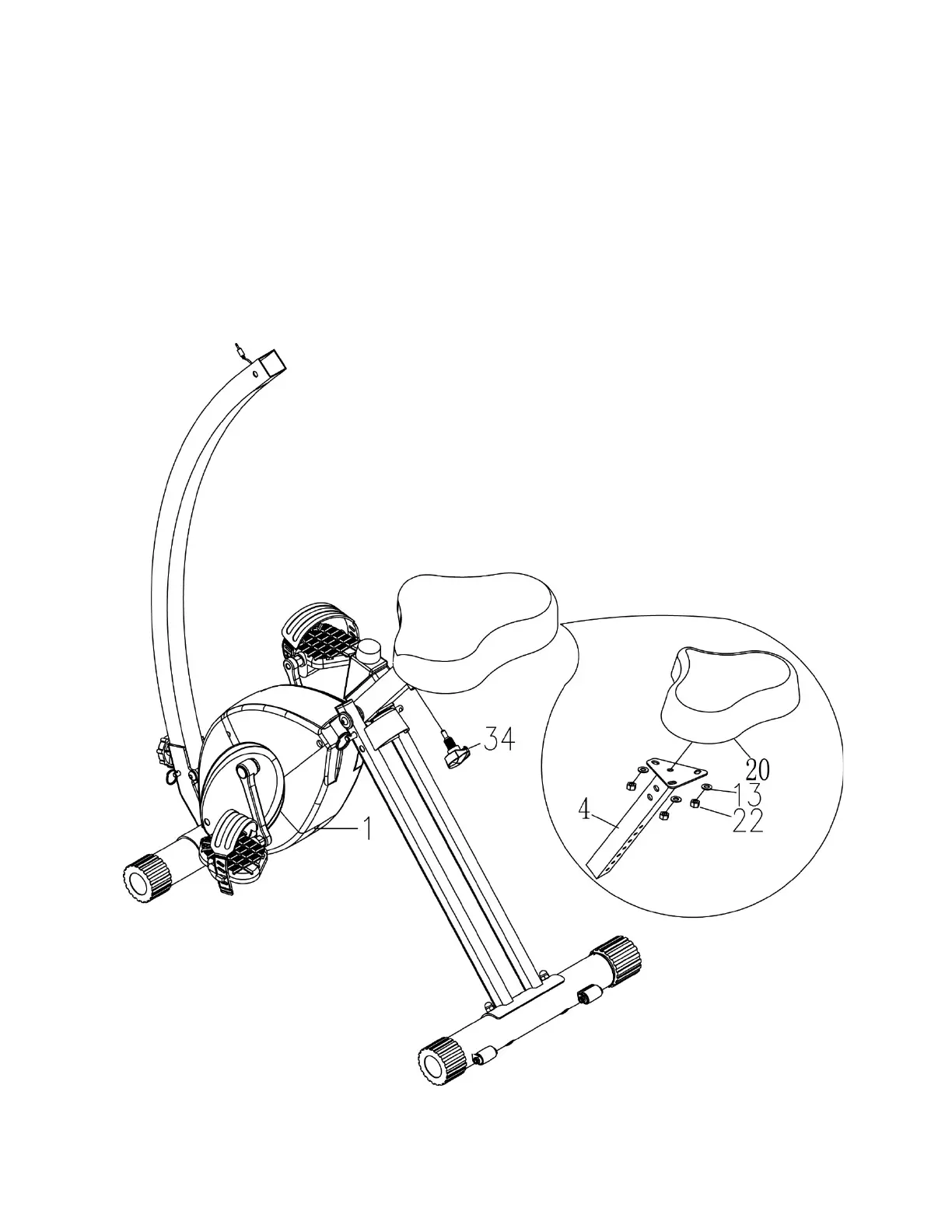

STEP 4
A.) Remove the three M8 Nylon Nuts (#22) and three Flat Washers (#13) under the
Seat Pad (#20).
B.) Insert the bolts under the Seat Pad (#20) onto the Seat Post (#4). Secure it with
the three Nylon Nuts (#22) and three Flat Washers (#13).
C.) Insert the Seat Post (#4) into the opening on Main Frame (#1). Use the Adjustment
Knob (#34) to lock the Seat Pad at selected height.
