markilux Handover Declaration
For the users of vertical blinds and conservatora awnings
markilux
markilux awnings for exterior use conform to the standard EN 13561 for awnings
and thus to the current technical requirements in relation to their construction and
installation brackets.
The wind resistance class the installation conforms to, is determined specically by
the type and number of xture brackets as well as the xture substrate being tted
to.
The awning may be used only up to the wind resistance class declared
permissible by the installing company. This may differ from the wind resistance
class specied in the CE conformity mark.
In accordance with its knowledge of local conditions and the type of installation it
has carried out, the installing company shall inform the user as to whether the wind
resistance class permitted by markilux has been met and shall document the actual
wind resistance class met by the installation.
Automatic control mechanisms are to be adjusted so that they react to the
appropriate wind resistance class.
markilux
Schmitz-Werke GmbH & Co.KG
Hansestraße 87
D-48282 Emsdetten
DIN EN 13561
Blinds and awnings for exterior applications
wind resistance class 2
markilux 710/810, 720/820, 725/825, 750/850,
730/830, 740/840, 745/845, 893, 869/869 tracx
(depending on size), and 8850
wind resistance class 3
markilux 760/860, 620 tracx, 660 tracx, 869/869
tracx (depending on size), 780/880, 8800/8800 tracx
and pergola
30-01-2014

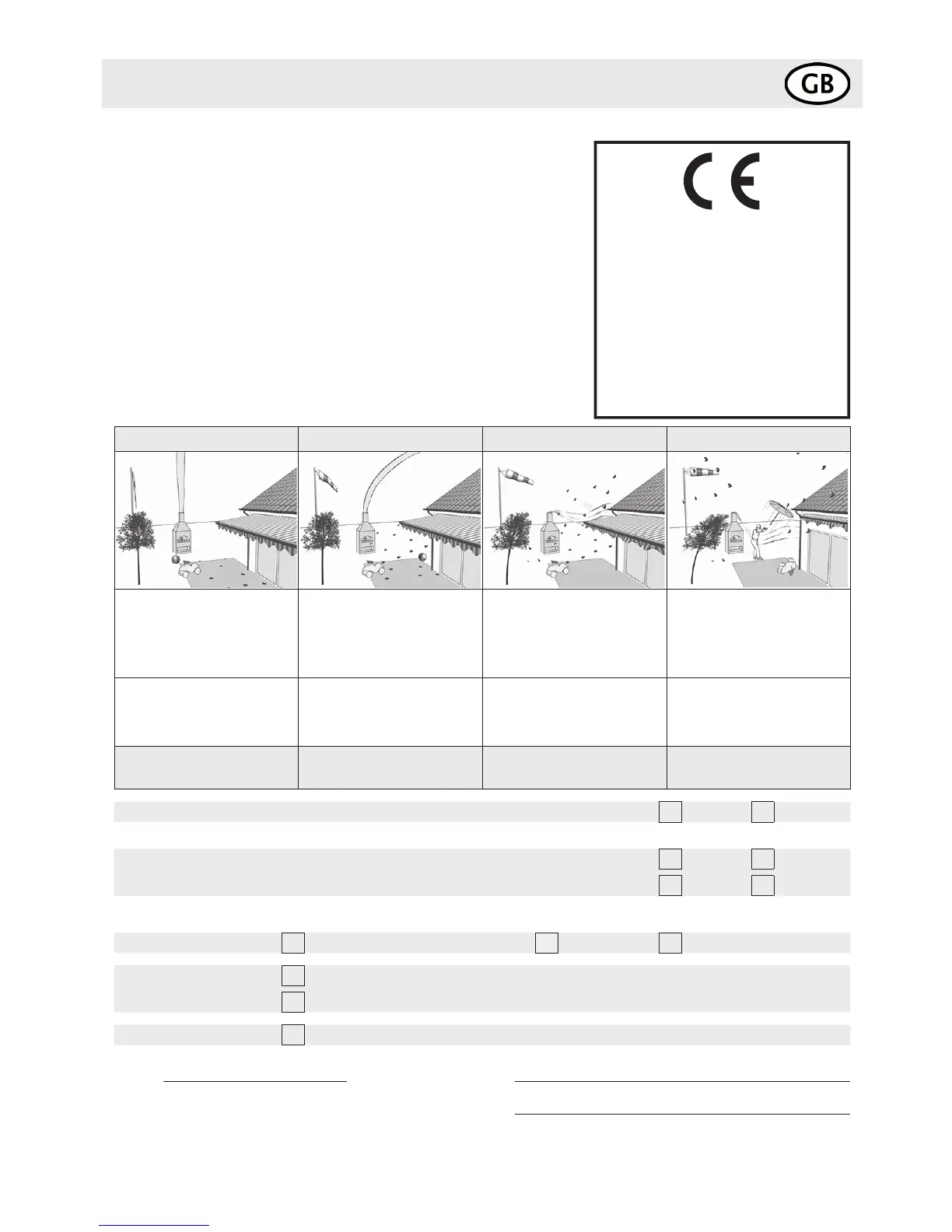

wind resistance class 0 wind resistance class 1 wind resistance class 2 wind resistance class 3
Wind resistance class 0 corresponds
either to performance criteria that
we were not asked to meet or to
those that have not been measured
or to a product that does not full
the requirements of wind resistance
class 1.
The awning may remain extended up
to a maximum of Beaufort force 4.
The awning may remain extended up
to a maximum of Beaufort force 5.
The awning may remain extended up
to a maximum of Beaufort force 6.
Denition according to Beaufort:
moderate breeze, moderate wind
The wind moves twigs and smaller
branches, lifts dust and loose paper.
Denition according to Beaufort:
fresh breeze, fresh wind
Small deciduous trees begin to sway,
white crests forms on seas
Denition according to Beaufort:
strong breeze
Large boughs move, umbrellas
are difcult to keep under control,
telephone wires "whistle" in the wind
Use only under supervision. The awning
must be retracted if there is any wind.
wind speed
5.5-7.4 m/s = 20-27 km/h = 12-16 mph
wind speed
7.5-10.4 m/s = 28-37 km/h = 17-23 mph
wind speed
10.5-13.4 m/s = 38-48 km/h = 24-30
mph
Date: Signature of tter:
Signature of user*:
* with your signature you conrm that you have received a copy of the handover declaration!
The user was duly informed as the operation of the awning: yes no
Following documents have been handed to the user:
• Operation manual yes no
• Installation and setting instructions supplied by the motor, switch and control unit manufacturer(s) (if available)
yes no
The awning may be used under the following conditions:
Wind: X permissable up to wind resistance class = wind speed
Rain: permissable by completely extended awning
not permitted whith angle of inclination belox 25% = 14°, measured from the horizontal plane
Danger of frost and snow: X not permitted
