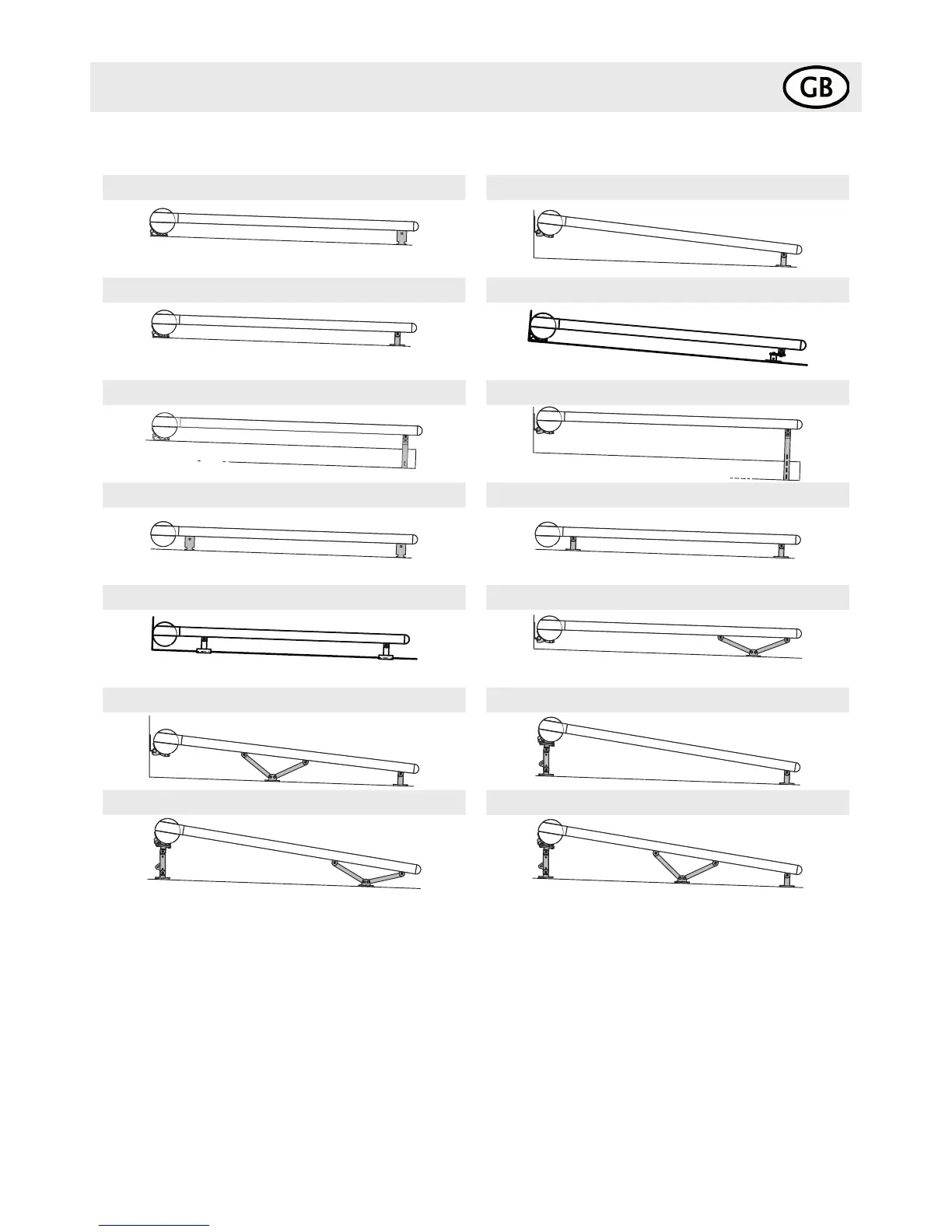

1.1 Mounting types and mounting brackets
1. Overviews and xing types
11 12
76061.L
76062.R
(76180.)
76017.
76063.L
76064.R
(76181.)
76046.
14 16
76046.
76061.L
76062.R
(76180.)
76077. L
76078. R
(76180.) 76053.
21 22
76061.L
76062.R
(76180.)
76049.
76049.
76063.L
76064.R
(76181.)
31 32
76017. 76017.
76046.76046.
33 41
76735.
76735.
76063.L
76064.R
(76181.)
76052.
51 61
76046.
76052.
76063.L
76064.R
(76181.)
76046.
76067.L
76068.R
(76198.)
71 81
76067.L
76068.R
(76198.)
76052.
76067.L
76068.R
(76198.)
76046.
76052.
markilux mounting instructions
Individual bracket combinations - see "Fixtures, ttings and accessories" in the sales documentation. Please note the minimum quantity in
accordance with the width and extension! Mounting Type 11, 14, 16, 21, 31, 32: from a xture width (MA) of 601 cm an cassette support
assembly, 76183., is required!
1.2 Mounting systems  Attention!
Basically the following is applicable for all mounting systems:
1. The mounting material manufacturers (e.g. Fischer, Hilti, Upat, etc.) offer different mounting systems
according to the undersurface. If the conditions for the mounting are met according to DIN EN 13561, the wind resistance
class 3 for the mounting can be conrmed to the user.
Mounting material is not delivered, as different undersurfaces (e.g. concrete, lime sand stone, autoclaved aerated concrete,
etc.) require different types of mounting material
3. IMPORTANT: The brackets must be aligned with each other! When subsurfaces are uneven, the clearances are to be
checked using a cord pulley and if required compensated accordingly. Due to the horizontal mounting of the folding-arm
awning and the perpendicular t of the mounting brackets, the smooth functioning of the folding-arm awning is guaranteed.
