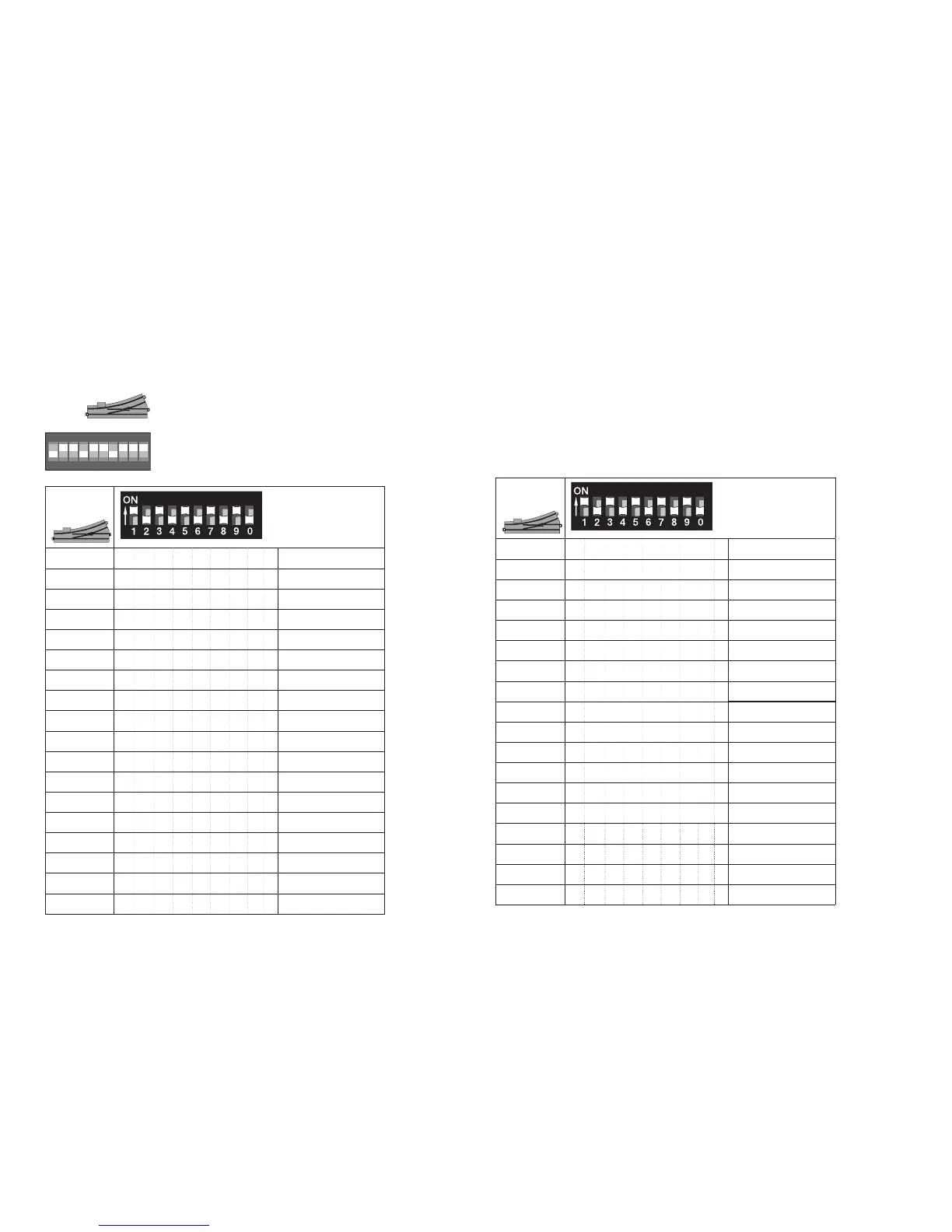

Adressentabelle • Address Table • Table d‘adresses • Code tafel •
Código de mesa • Codice tavolo • Kodtabellen • Kodetabel •
Weichenadresse•TurnoutAddress•Adressedel’aiguille•Wisseladres•
Direccióndedesvío•Indirizzodeldeviatoio•Växeladress•Sporskifteadresse
1 2 3 4 5 6 7 8 9 0
O N
DIP-Schalter•DIP-Switches•CommutateurdeDIP•DIP-Schakelaar•
MicrointerruptorDIP•CommutatorediDIP•Dekoder-DIP•DIP-Modul
10 ( 0/1 )
1 1 fx (MM)/DCC
2 2 fx (MM)/DCC
3 1 2 fx (MM)/DCC
4 3 fx (MM)/DCC
5 1 3 fx (MM)/DCC
6 2 3 fx (MM)/DCC
7 1 2 3 fx (MM)/DCC
8 4 fx (MM)/DCC
9 1 4 fx (MM)/DCC
10 2 4 fx (MM)/DCC
11 1 2 4 fx (MM)/DCC
12 3 4 fx (MM)/DCC
13 1 3 4 fx (MM)/DCC
14 2 3 4 fx (MM)/DCC
15 1 2 3 4 fx (MM)/DCC
16 5 fx (MM)/DCC
17 1 5 fx (MM)/DCC
18 2 5 fx (MM)/DCC
10 ( 0/1 )
19 1 2 5 fx (MM)/DCC
20 3 5 fx (MM)/DCC
21 1 3 5 fx (MM)/DCC
22 2 3 5 fx (MM)/DCC
23 1 2 3 5 fx (MM)/DCC
24 4 5 fx (MM)/DCC
25 1 4 5 fx (MM)/DCC
26 2 4 5 fx (MM)/DCC
27 1 2 4 5 fx (MM)/DCC
28 3 4 5 fx (MM)/DCC
29 1 3 4 5 fx (MM)/DCC
30 2 3 4 5 fx (MM)/DCC
31 1 2 3 4 5 fx (MM)/DCC
32 6 fx (MM)/DCC
33 1 6 fx (MM)/DCC
34 2 6 fx (MM)/DCC
35 1 2 6 fx (MM)/DCC
36 3 6 fx (MM)/DCC
