marklin 24802 - Product Usage and Safety Information; Safety Notes; Important Product Notes; Package Contents

7
Using the Product as Intended
The track and turnouts can be used in Märklin‘s H0 C Track
system.
Safety Notes
Make sure you read the following safety notes before using
this Märklin product for the first time.
•
IMPORTANT! Sharp edges and points required for operation.
Danger of choking due to detachable small parts that may be
swallowed.
• Thisproductmayonlybeusedindoors.
• Donotstorethisproductindirectsunlightorareaswith
extreme swings in temperature or high humidity.
Important Notes
• Theoperatinginstructionsareacomponentpartofthe
product and must therefore be kept in a safe place as
well as included with the product, if the latter is given to
someone else.
• PleaseseeyourauthorizedMärklindealerforrepairsor
spare parts.
Contents
1 x 20611 Tournout left digitally controlled
1 x 20612 Tournout right digitally controlled
5 x 20172 Straight Track
3 x 20188 Straight Track
2 x 20224 Curved Track
1 x Operating instruction
Technical Data for the Turnout Decoder
The built-in turnout decoder is the same in function as
Märklin item number 74461.
• Loadatlanternoutput ≤ 100 milliamps
• Loadatturnoutoutput max.2amps
• Voltageforthedigitalpowercircuit max.20voltseff.
• Externalvoltage max.20voltsDC
• Electricalstrength max.40volts
Setup and Connections
Unplug the switched mode power pack from the household
current in order to prevent damage during setup. Do not plug
the switched mode power pack in the wall outlet again until
you are finished with all of the work.

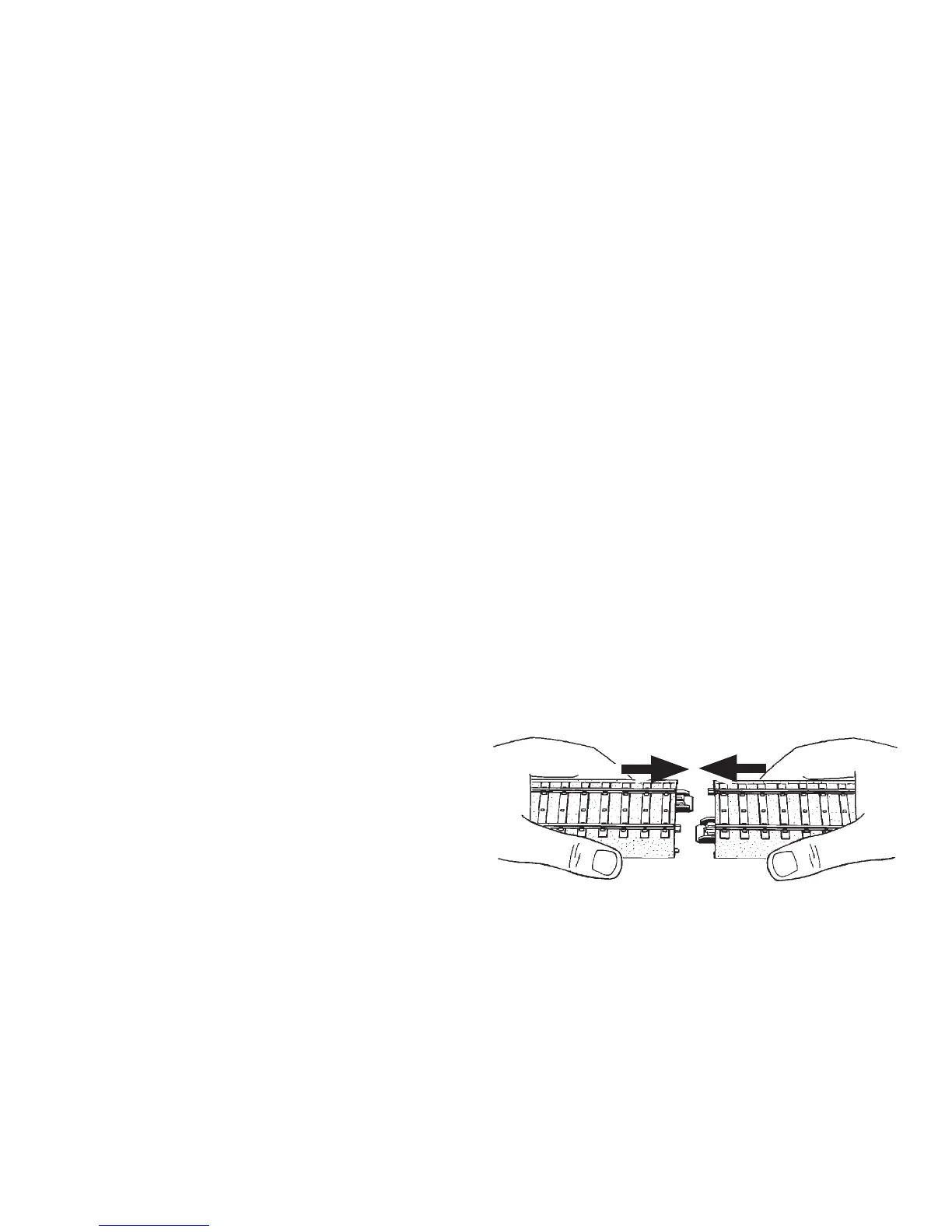

Putting track together
