Safety Notes
• The m83 decoder is designed for use for digital model
railroads with the Motorola, mfx, or DCC digital systems.
• The operating instructions are a component part of
this product and must therefore be kept safe as well as
passed on with the product to third parties.
• Voltage for the m83 comes exclusively through track con-
nections or from the 66361/66365 switched mode power
pack (only in conjunction with 60822).
• Connections to the m83 decoder may only be done with
no voltage is present.
• IMPORTANT! The m83 has sharp edges and points due to
its function.
• The housing may not be opened.
• The m83 decoder is designed for use in dry areas only.

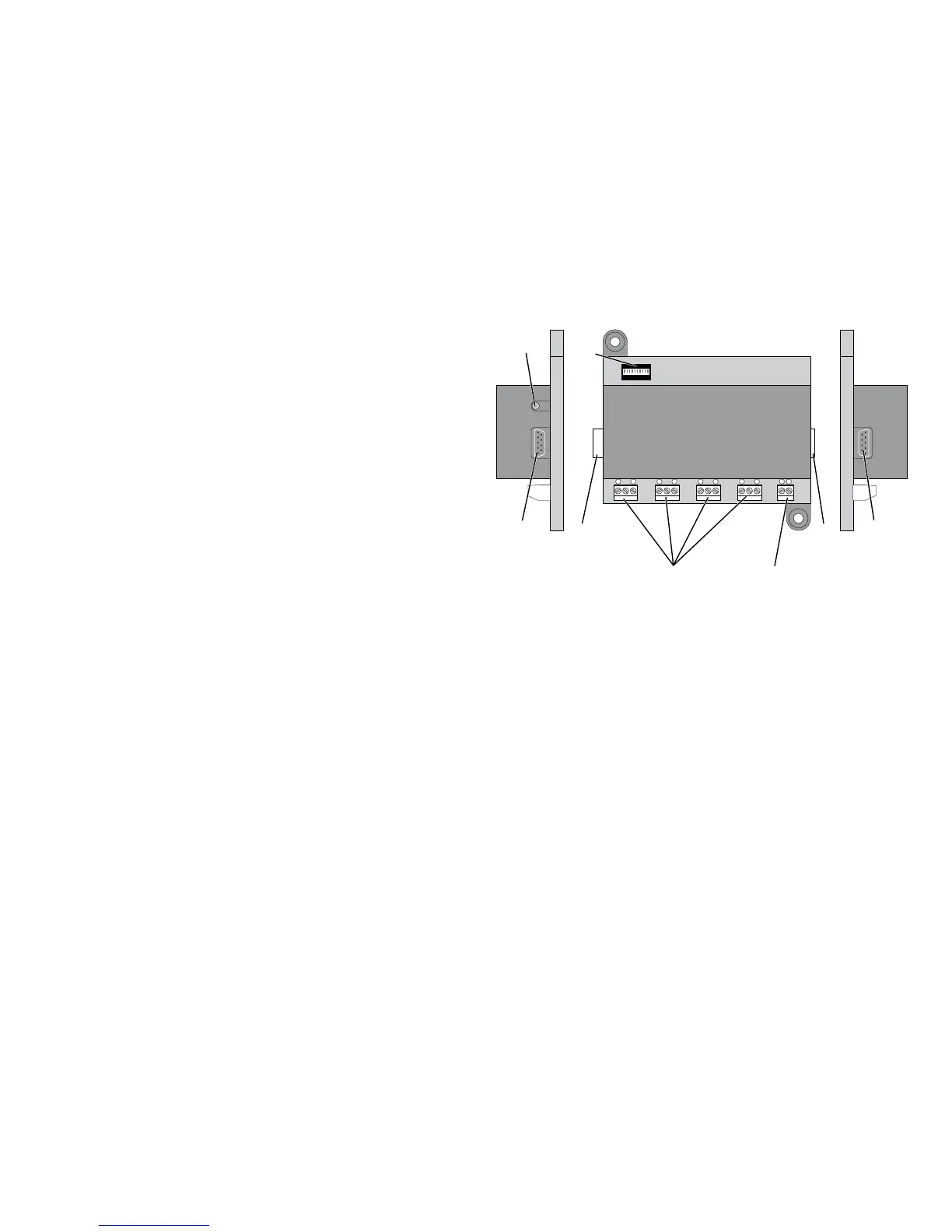

1 2 3 4 5 6 7 8 9 10
ON
1
2
3
3
3
3
4
5
1 Dip switches for setting the address
2 Connection socket for 66361/66365 (only in conjunction
with 60822)
3 Plugs and sockets for direct connection of several
m83/m84 decoders
4 Set screw terminals for connections to the track
5 Set screw terminals for the turnouts to be controlled
