Description Wire Color
NEM Märklin
Motor Connection 2 gray blue
2- Conductor Current Pickup,
Track, Left
3- Conductor Current Pickup,
Track, Outer
black brown
Front Lights white gray
Function 1 green brown/red
Common Wire for Lights blue orange
Rear Lights yellow yellow
2- Conductor Current Pickup,
Track, Right
3- Conductor Current Pickup,
Track, Center
red red
Motor Connection 1 orange green
Aux 2 (physical output) violet
brown/green
Aux 3 (physical output) brown/Yellow
Aux 4 (physical output) brown/white

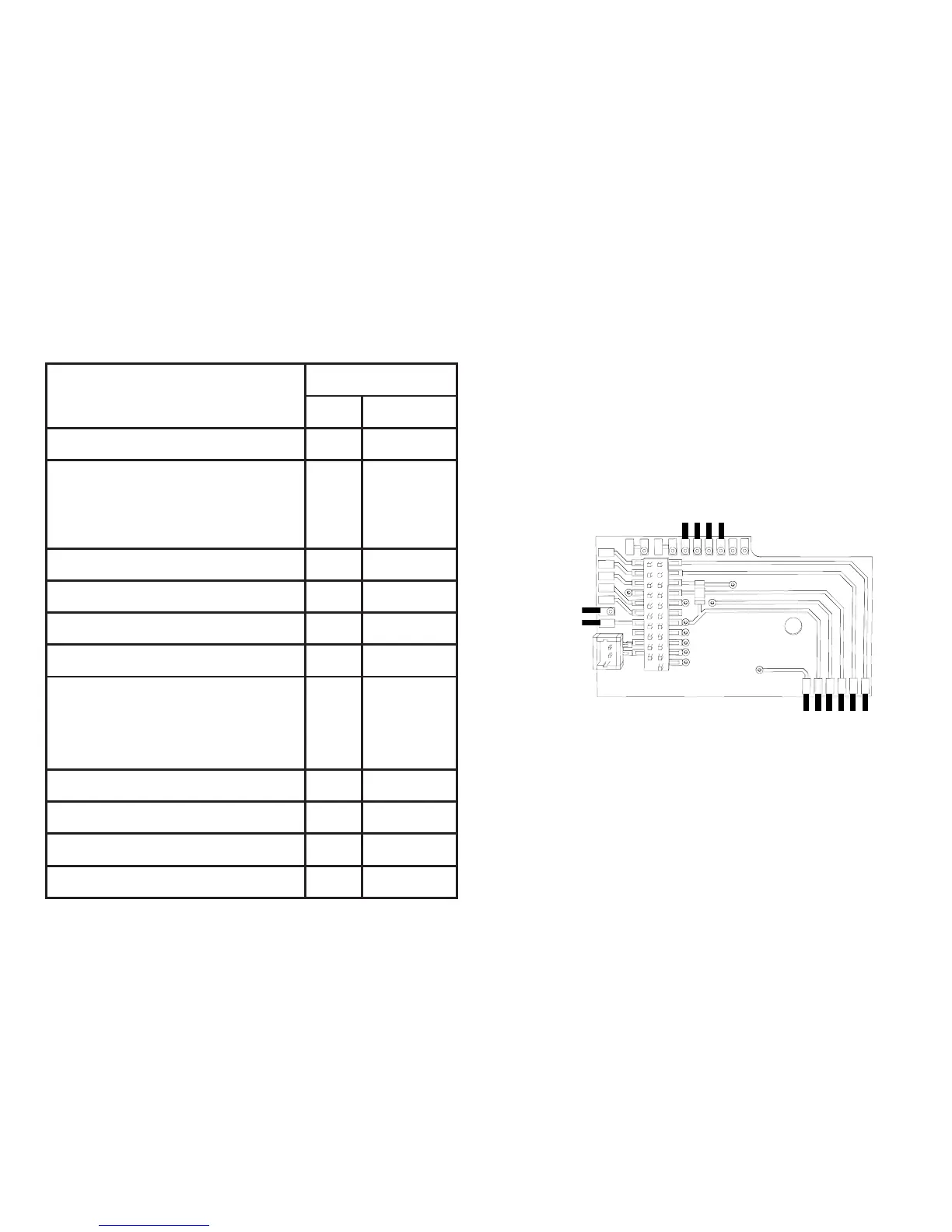

Cross Referencing the Colors for the Wires
60942
Screw down the mounting plate and solder the wires to the
motor connections, pickup(s), and any functions.
The colors for the wires correspond to the Märklin Standard;
for a comparison table for NEM.
brown/red
brown/green
braown7yellow
brown/wihte
orange
yellow
gray
orange
blue
green
brown
red
If the lighting is grounded to the locomotive or powered
rail car’s frame, this may cause flickering. If you don’t want
this, then the lighting must be insulated. We recommend
replacing the light bulb(s) with the 604180 plug-in socket(s)
and the 610080 light bulb(s). The ground is then connected to
the orange wire.
