ZEUS4
USER MANUAL
Page 16
8.5 OUTPUTS SETTINGS
The behaviors on the outputs are defined in the Outputs tab.

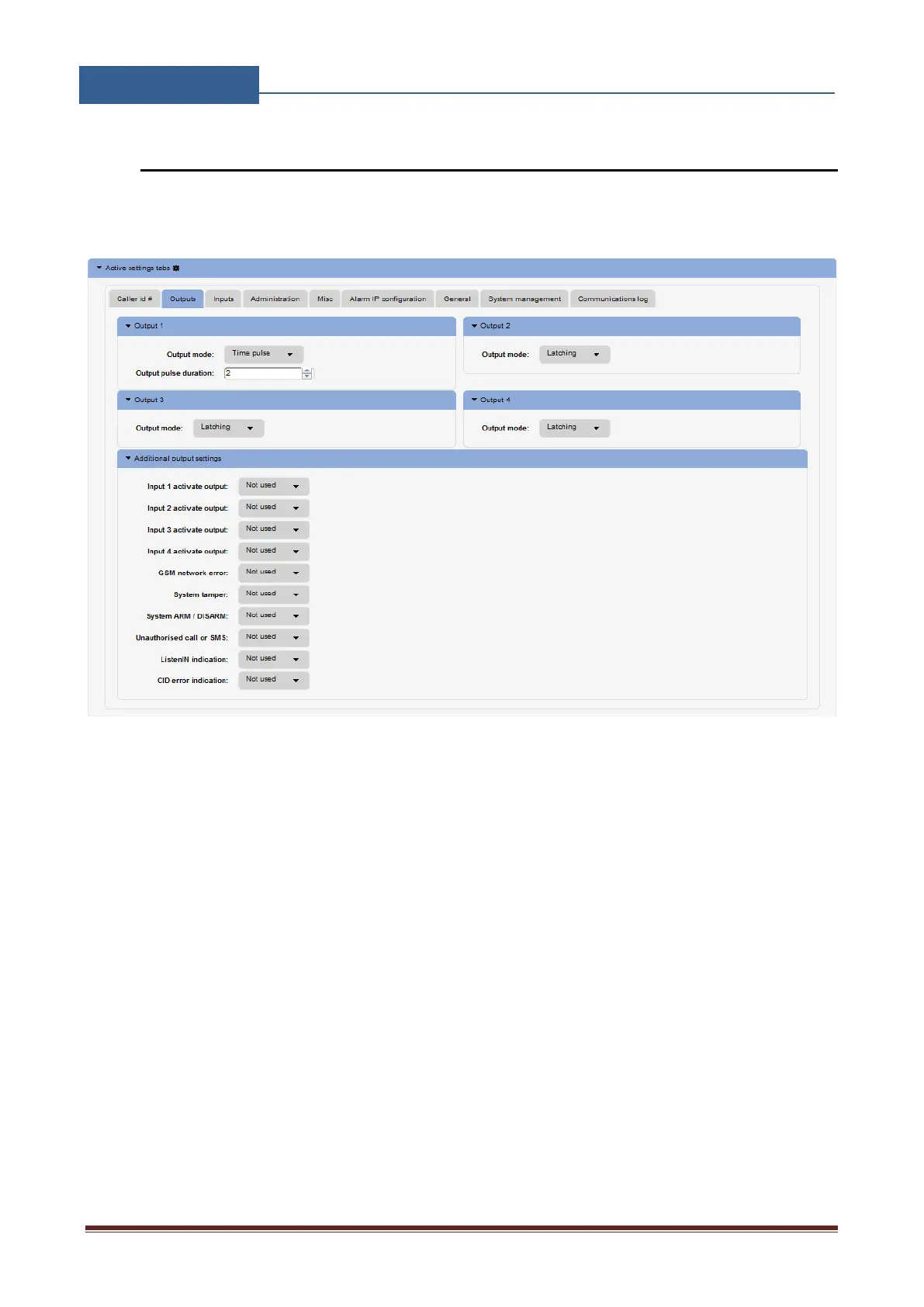

Figure 9: WEB Server-Output setting
Output 1 - Settings for output 1:
• Output mode: User can select between 3 options
Disable-Output is disabled.
Latching-Output is in latching mode. First Caller ID or PIN entry will activate the output,
second Caller ID or PIN entry will deactivate the output.
Time Pulse-Output is time pulse mode. After output is triggered it will be activated for the
time defined in Output pulse duration, after that time output will be restored.
• Output pulse duration: ON time for output in case of output mode Timer pulse.
The settings are the same for the other 3 outputs.
