1 2 3 4 5 6 7 8

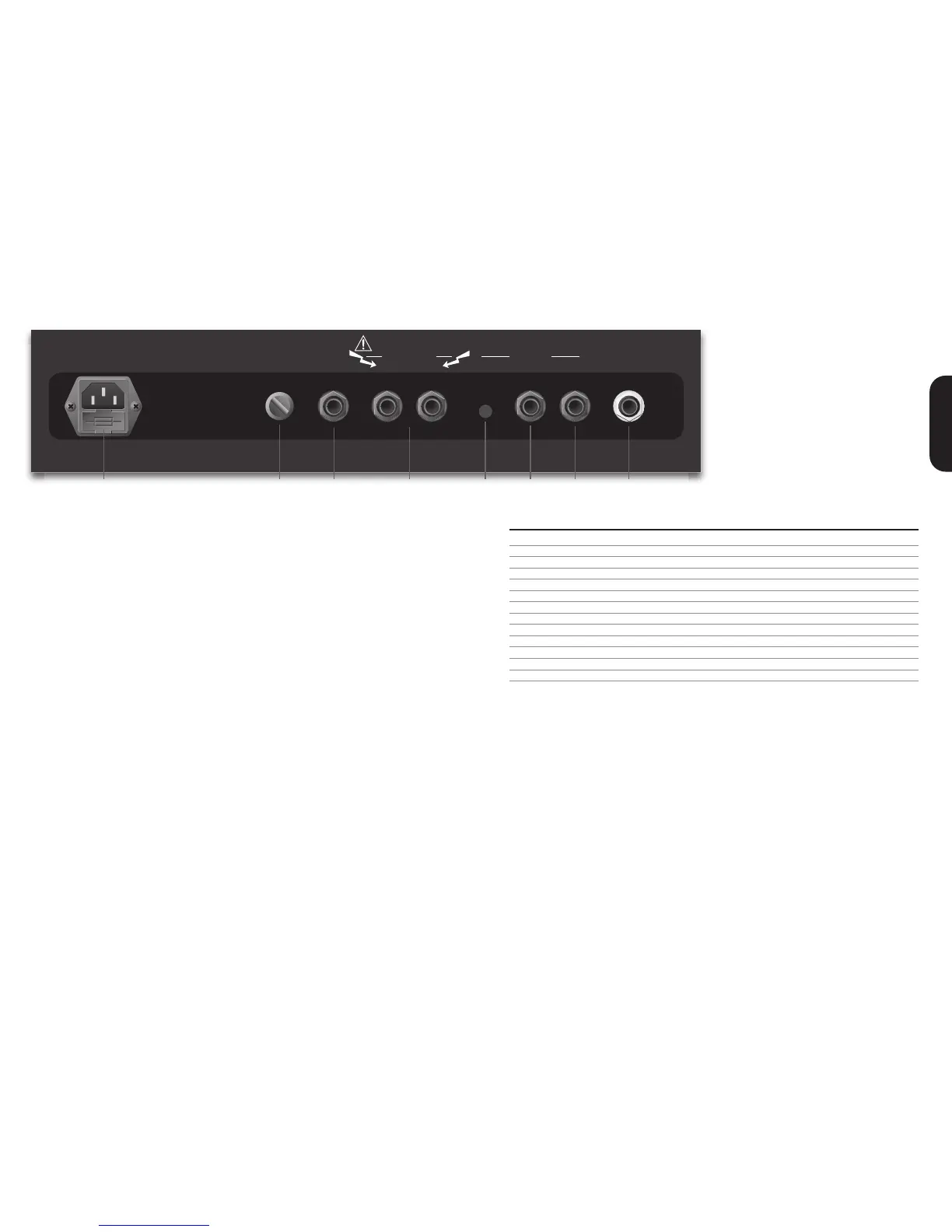

Haze 40 Watt combo rear panel
1. Mains Input Socket with Mains Fuse
Your amp is provided with a detachable mains (power) lead,
which is connected here on the rear panel – see ‘The Basics’
section at the start of this handbook for more information.
2. HT Fuse
The correct value of this H.T. fuse is specified on the rear
panel of the amplifier. NEVER attempt to bypass the fuse or fit
one of the incorrect value!
3. Emulated Line Out Socket
The amplifier’s output processed through a speaker cabinet
emulator is made available at this connector. Use this socket
to connect your amp directly to a PA mixer or recording
equipment.
4. Speaker Outputs
WARNING! Never use the amplifier without a load (speaker
cabinet/s) attached!
There are 2 speaker outputs available on the rear panel. They
are labelled according to the intended impedances:
16 Ohm: connect any 16 Ohms guitar cabinet to this jack.
Also used for the internal speaker.
8 Ohm: connect any 8 Ohms guitar cabinet to this jack.
WARNING: Although there are 2 speaker outputs, never
attempt to connect speakers to more than one socket at any
time. The safe combinations are 1x16 Ohm or 1x8 Ohm only.
Any other speaker configuration may stress the power
amplifier section and in extreme cases may lead to valve
and/or output transformer failure.
ALWAYS ensure you use good quality speaker (unshielded)
cables. NEVER use guitar (shielded) cables. ALWAYS use a
non-screened Marshall approved speaker lead when
connecting an extension cabinet to these units.
5. Effects Loop Switch
When ‘out’ this switch completely bypasses the circuitry
involved in the effects loop. Push this switch in to enable the
loop.
Note: If this switch is accidentally pushed in and there is
nothing plugged in to the loop, the signal will still pass through
from send to return by means of an internal link on the
switching jacks. This link is disconnected when something is
plugged into the return socket. The send socket has no effect
on the status of the internal link and could therefore be used
as a line out to a tuner for example if no external FX are
connected.
6 & 7. FX Loop - Send & Return
The FX Return socket (6) on the rear panel is used to connect
the OUTPUT of the effects processor or pedal you are using
in the effects loop. The FX loop is series and set at instrument
level so both guitar FX or professional units can be
connected. The FX Send socket (7) on the rear panel is used
to connect to the INPUT of the unit you are using in the effects
loop.
8. Footswitch
Connect the supplied 2-way footswitch here. The footswitch
enables you to change the channels, Normal or Overdrive,
and globally turn the effects on and off.
Note: When the 2-way footswitch is connected the front panel
channel switch will not function.
The optional extra 4-way footcontroller (not supplied)
PEDL-10049 expands the functionality of the Haze amplifier.
Four footswitches enables you to select between normal and
overdrive channels, switch between overdrive and overdrive
boost, enable / mute the internal reverb and enable / mute the
internal effects.
Four status LEDs reflect the current status of the amplifier –
channel, boost, reverb and effect.
Mute settings are stored per channel rather than globally
applied.
Power (RMS) 40W
Speaker Output 1x 16 Ohm / 1x 8 Ohm
Pre-Amp Valves 3x ECC83
Power Amp Valves 2x EL34
Channels 2
Boost Switch
Bright Switch
Reverb
Effects
Footswitch 2 way supplied
Main Guitar - Input Impedance 1MΩ
Dimensions (mm) W, H, D 590 x 486 x 254
Weight (kg) 20.3
MHZ40C Combo Technical Specification
ENGLISH
