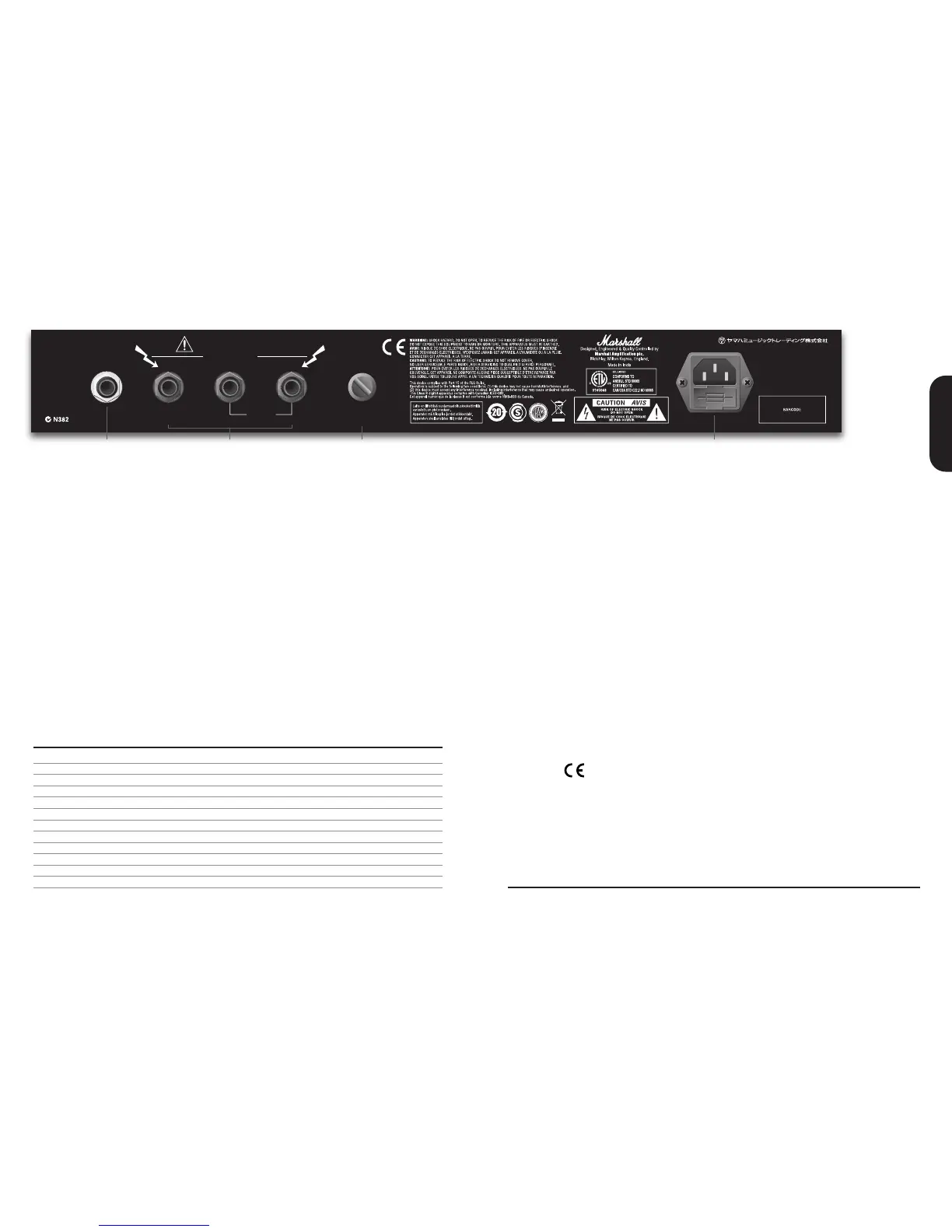

Haze 15 Watt head rear panel
1. Footswitch Socket
Connecting the 2-Way footswitch here enables you to perform
two functions; you can change the channels, Normal or
Overdrive, and turn the effects on and off.
Note: When the 2-way footswitch is connected the front panel
channel switch will not function.
2. Speaker Outputs
WARNING! Never use the amplifier without a load (speaker
cabinet/s) attached!
There are 3 speaker outputs available on the rear panel. They
are labelled according to the intended impedances:
1x16 Ohm: connect any 16 Ohms guitar cabinet to this jack.
1x8 Ohm or 2x16 Ohm: connect any 8 Ohms guitar cabinet,
or two 16 Ohm guitar cabinets, to these jacks.
WARNING: The safe combinations for speaker cabinet
connection are 1x16 Ohm, 1x8 Ohm or 2x16 Ohm. Any other
speaker configuration may stress the power amplifier section
and in extreme cases may lead to valve and/or output
transformer failure.
ALWAYS ensure you use good quality speaker (unshielded)
cables. NEVER use guitar (shielded) cables. ALWAYS use a
non-screened Marshall approved speaker lead when
connecting an extension cabinet to these units.
3. HT Fuse
The correct value of this H.T. fuse is specified on the rear
panel of the amplifier. NEVER attempt to bypass the fuse or fit
one of the incorrect value!
4. Mains Input Socket with Mains Fuse
Your amp is provided with a detachable mains (power) lead,
which is connected here on the rear panel – see ‘The Basics’
section at the start of this handbook for more information.
Power (RMS) 15W
Speaker Output 1x 16 Ohm / 1x 8 Ohm / 2x 16 Ohm
Pre-Amp Valves 3x ECC83
Power Amp Valves 2x 6V6
Channels 2
Bright Switch
Reverb
Effects
Footswitch 2 way included
Main Guitar - Input Impedance 1MΩ
Dimensions (mm) W, H, D 498 x 223 x 224
Weight (kg) 9.3
MHZ15 Head Technical Specification
ENGLISH
Follow all instructions and heed all warnings
KEEP THESE INSTRUCTIONS !
* EUROPE ONLY - Note:
This equipment has been tested and found to comply with the requirements of the EMC Directive
(Environments E1, E2 and E3 EN 55103-1/2) and the Low Voltage Directive in the E.U.
* EUROPE ONLY - Note:
The Peak Inrush current for the MHZ15 is 18 amps.
The Peak Inrush current for the MHZ40 is 18 amps.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
*
Reorient or relocate the receiving antenna.
*
Increase the separation between the equipment and the receiver.
*
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
*
Consult the dealer or an experienced radio/TV technician for help.
