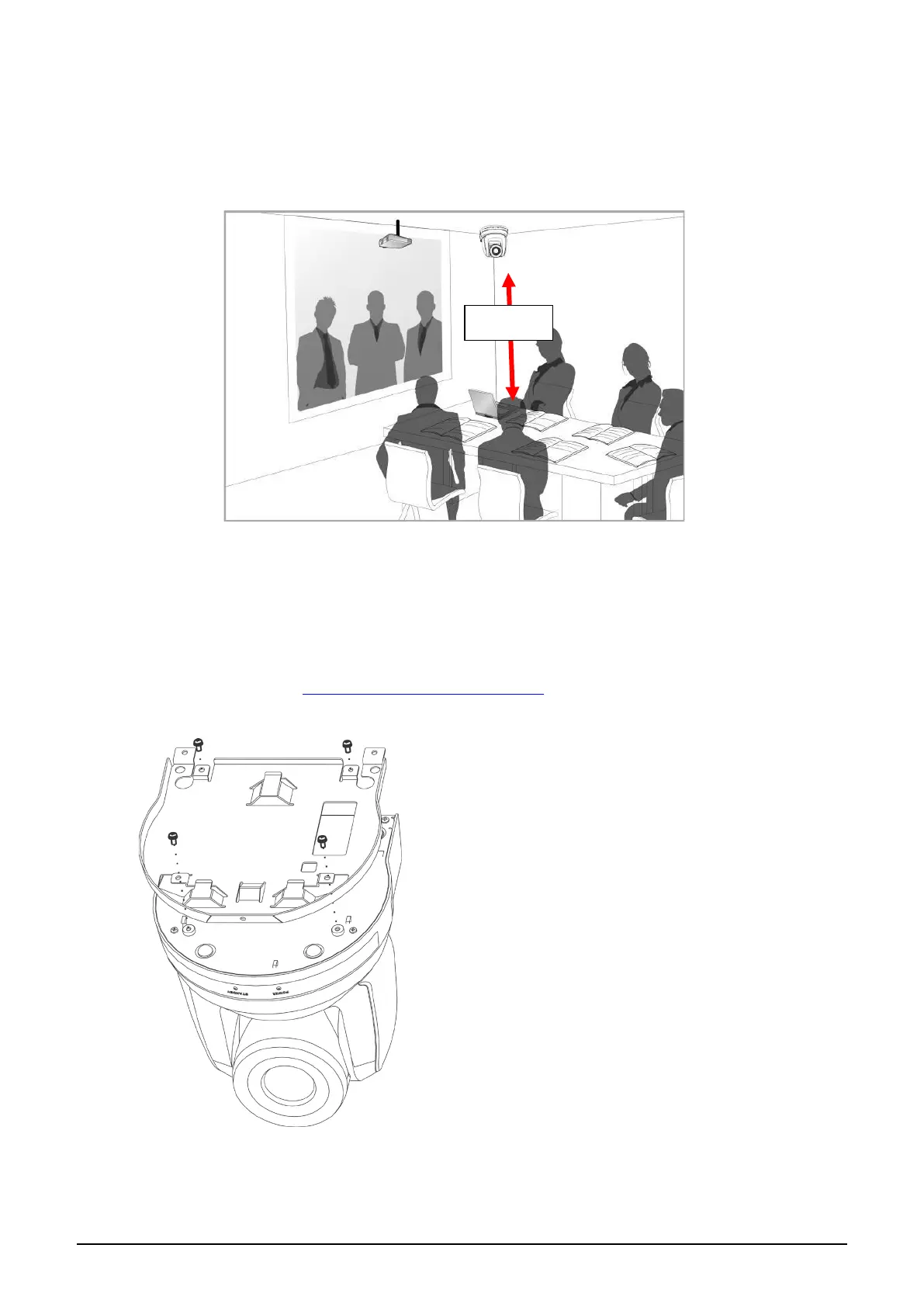

4.2.2.5 Precautions for installation
1. Prior to installation, please confirm the orientation of the camera relative to the
object to be captured to ensure Horizontal and Vertical integrity axis.
2. It is recommended for camera be set at a distance of one (1) meter or more from
the object to be captured. Please adjust for a best distance according to the
magnification of the lens
3. The camera (including metal plates) weights approximately 2.5 kg. If it is to be
installed on the ceiling, please use the hanger that has obtained UL security
approval to prevent the camera from coming loose and falling.
4. Please check that camera is securely installed on a regular basis.
4.2.2.6 Installation steps
1. Please set desired resolution and framerate on Output Switch dial.
Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP
switch settings.
2. Fix the metal plate A on the machine base with 4 M3 silver screws
3. Lock the metal plate B on ceiling mounted hanger
※ Caution: (1) Please use the hanger with UL security approval
(2) Please make hole for connecting and running wires to the camera

Marshall Electronics CV630-IP Specifications

General

Megapixel	8 MP
Camera type	Single camera
Sensor type	-
Optical zoom	30 x
Zoom capability	Yes
Optical sensor size	1/2.5 \
Vertical field of view (wide)	70 °
Networking standards	IEEE 802.3at
Maximum frame rate	- fps
Supported video modes	720p, 1080p, 3840p
Video formats supported	H.264, H.265, HEVC
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Pan range	0 - 340 °
Product color	Black
Tilt angle range	0 - 120 °
