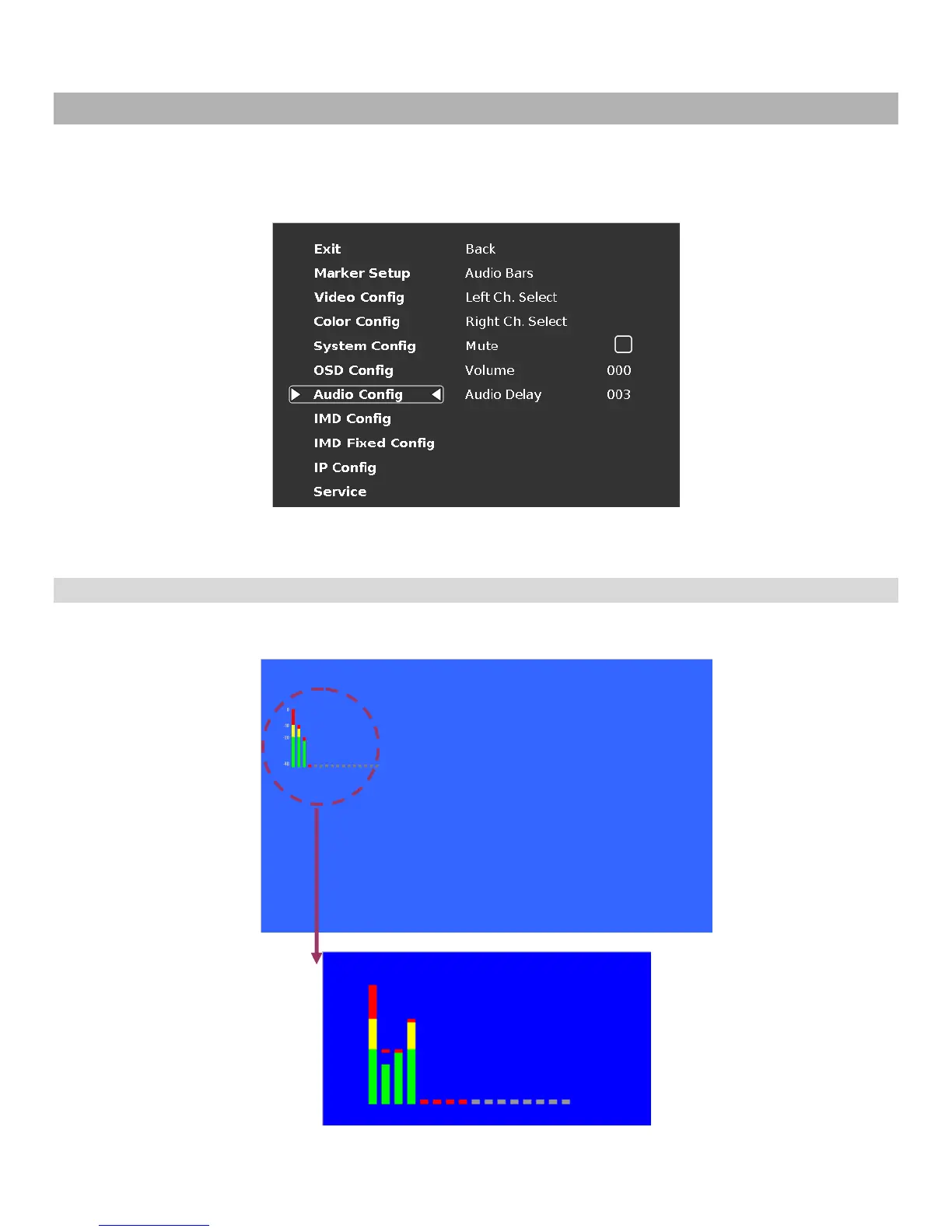

Audio Config Submenu
Use the Audio Configuration submenu to configure Audio channel selection for the headphone jack, audio level and on
screen audio display.
■
Audio Bars
This monitor provides audio level indicators for SDI streams with embedded audio. Support for up to 16 channels (labeled as
Groups 1, 2, 3 and 4) is provided.
Audio Configuration Submenu
Group 1
Group 2
Group 3
Group 4
Audio groups 1
-4 shown on the screen
