Screen Layouts
The QVW-1708-Q can display 4 different input sources simultaneously. Each source is scaled and positioned to fit the
desired layout. There are a total of 4 different layouts illustrated below. Each press of the Layout Button will switch to the
next available layout.

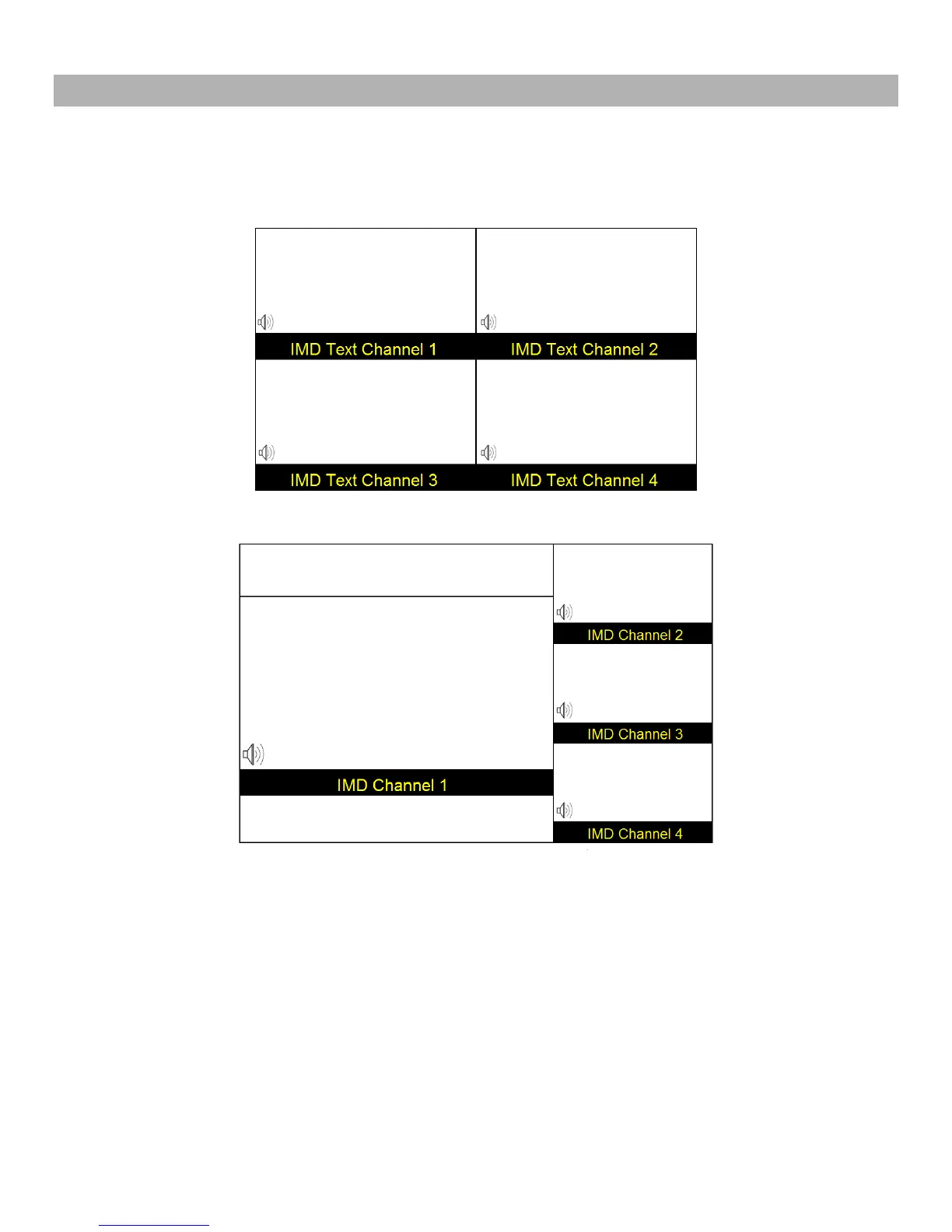

Default Quad Layout
Quad Layout 2
