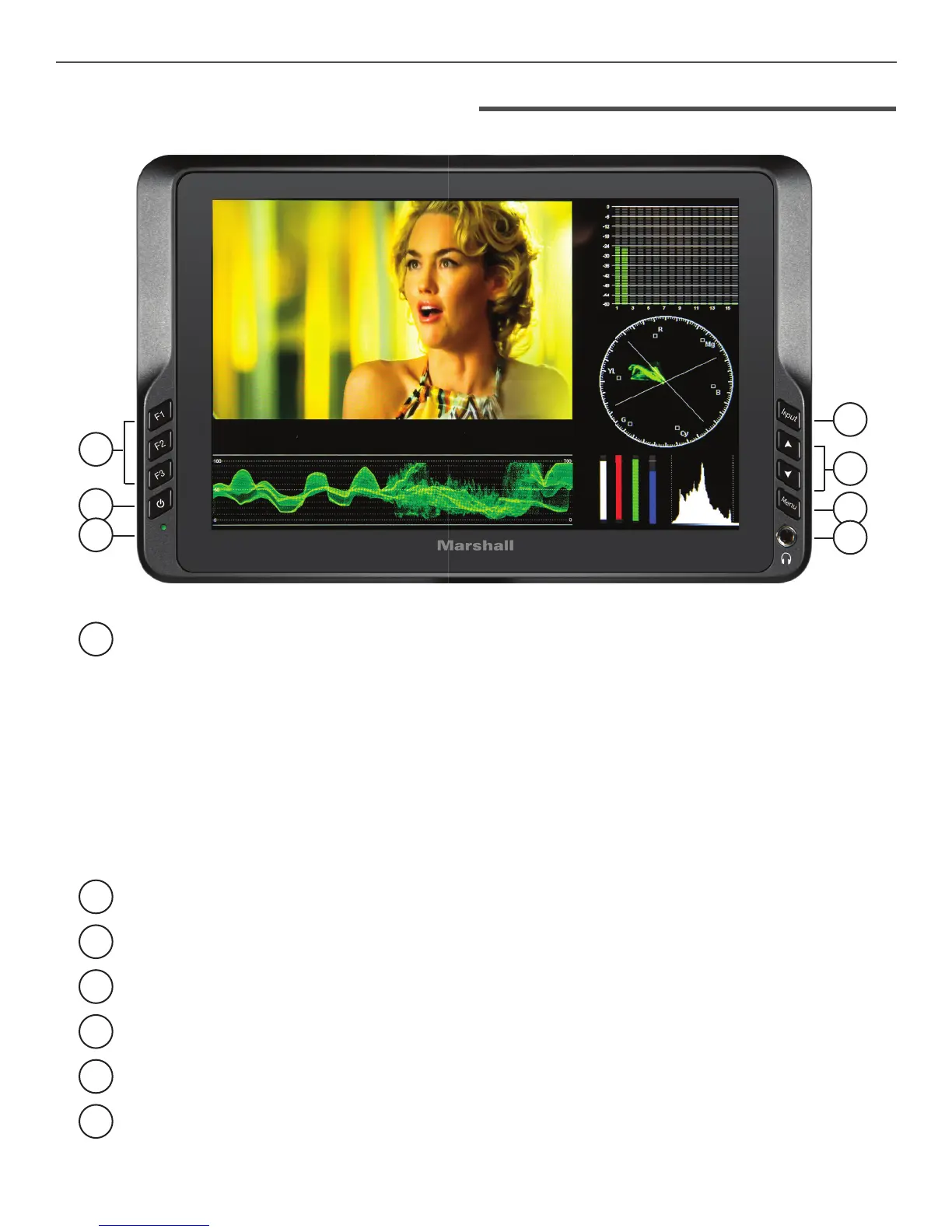

2. Top & Front Panel Features
1
2
3
4
6
7
5
F1~F3 user-de ned function buttons.
Shortcut: Long press on any function button (3-5 seconds) pops up menu for setting.
Press Up/Down buttons to choose settings, then press the Menu button to con rm the
selection.
Functions of F1-F3 buttons can be set to:
Center Marker, Aspect Marker, Check Field, Underscan, Scan, Aspect, DSLR, Freeze,
H/V delay, Peaking, False Color, Exposure, Histogram, Level Meter, Waveform and Time
Code.
Default function: F1: Waveform F2: Scan F3: Aspect
POWER button
Battery indicator light. ( Red light - OFF mode, green light - Operating mode).
INPUT: Switch between SDI and HDMI.
▲/▼ Select option in the menu. Increase or decrease the option value.
Menu: Select button
Headphone jack. Accepts standard 3.5mm mini-phone plug.
2
3
4
5
6
7
1
