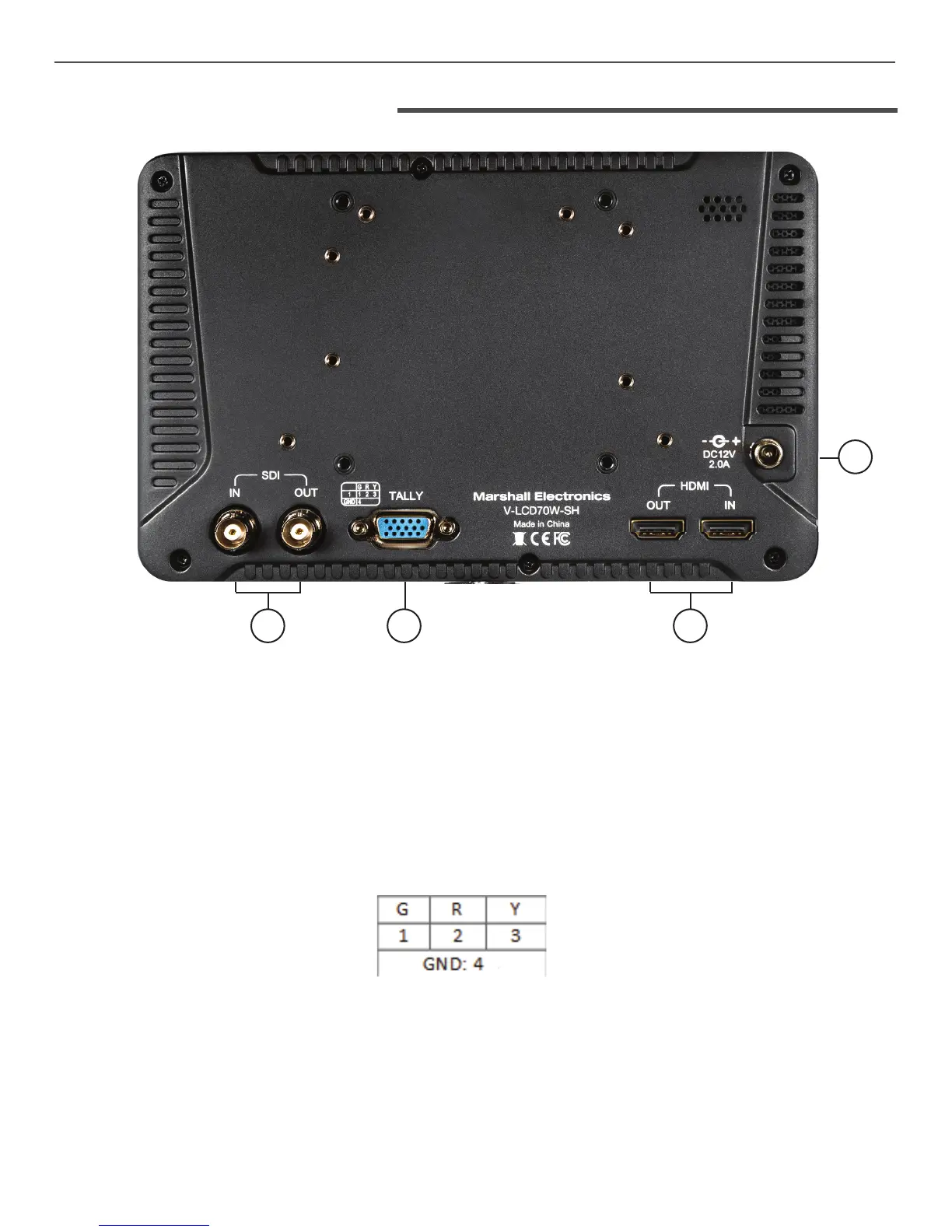

3. Rear Panel Features
1. Serial Digital “BNC” Connectors
SDI input and loop out. Conversion is possible between HDMI and SDI inputs. See System
section of menu. Compatible with SDI, HD SDI and 3G SDI inputs. Embedded audio may be
monitored at the Headphone jack and visually monitored on-screen.
2. TALLY Connector
The tally light above each monitor is controlled by grounding the appropriate pin on the Tally
connector as shown in the table.
Caution: External power should never be applied to the Tally connector.
3. HDMI Digital Video Connectors
HDMI input and loop out. Conversion is possible between HDMI and SDI inputs. See System
section of menu. Embedded audio may be monitored at the Headphone jack and visually
monitored on-screen.
4. Power Connector. DC power input.
21 3
4
