ASSEMBLY

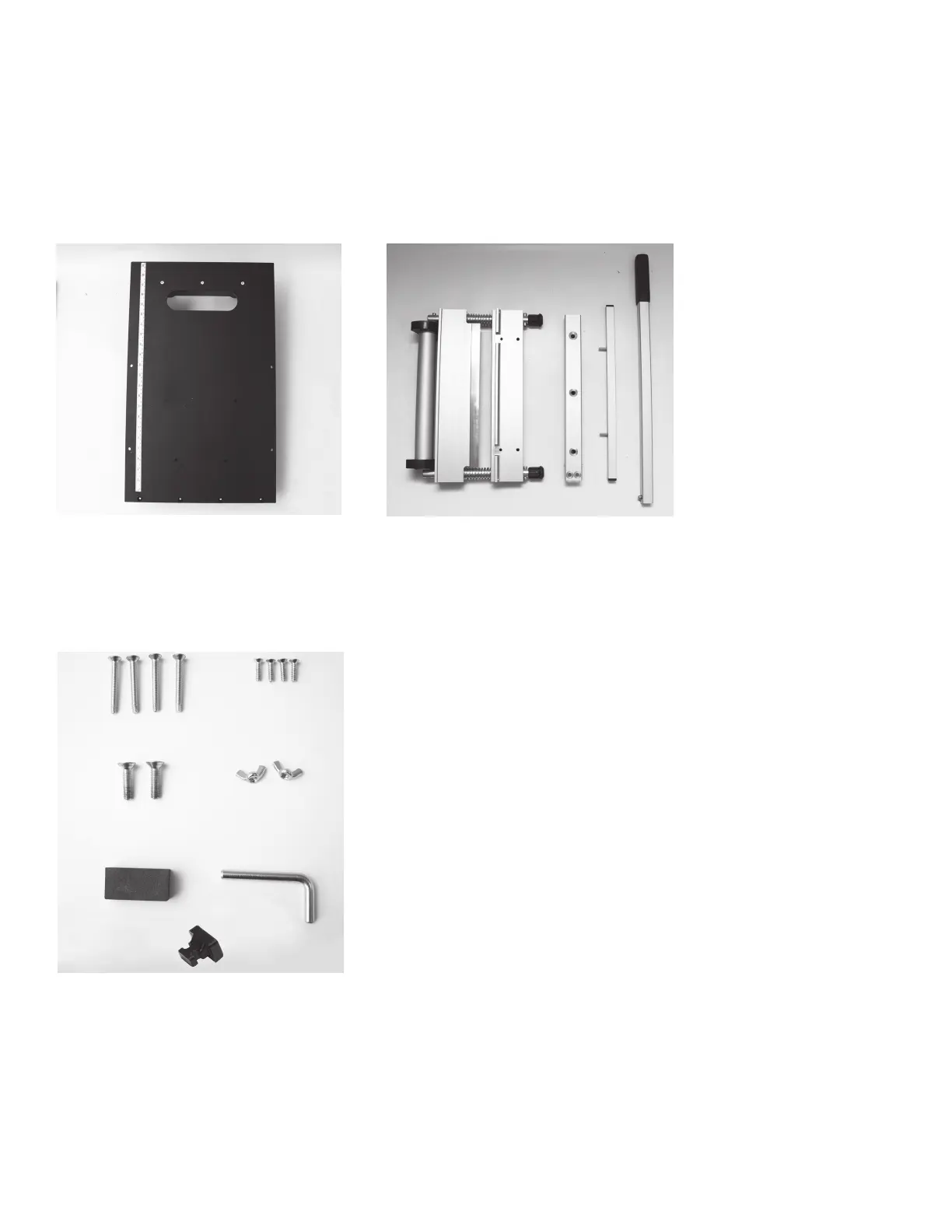

1. Lay out all of the parts.
Tools for Assembly:
• #2 Phillips Screwdriver
• #3 Phillips Screwdriver
• " Hex Wrench (included)
A. Table Assembly
B. Shear Assembly
C. Handle Base
D. Bed Fence
E. Handle Extension
2. Lay out all hardware.
F. #3 Phillips Flat Head Screw, "–20 X 2 " (4x)
G. #2 Phillips Flat Head Screw, 10-24 X " (4x)
H. " Hex Drive Flat Head Screw, "–18 X 1 " (2x)
I. Wing Nut, "–20 (2x)
J. Honing Stone (1x)
K. Cam Locking Pin (1x)
L. End Cap (1x)
A B C D E
F
H
J
G
I
K
L
