104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS1980
CUTTING GUIDE
The MARSHALLTOWN Flooring Shear is designed to cut a variety of materials. Some of the most common
materials are laminate flooring, engineered hardwood, luxury vinyl tile, luxury vinyl plank, vinyl composite tile,
fiber cement board siding, and more.
Note: DO NOT attempt to cut any solid wood, high pressure laminate, or engineered hardwood with a
Janka Hardness Rating higher than 1300.
Note: Even the approved materials may vary greatly in density and hardness. If extreme force is required to cut
a material stop immediately, as it could lead to damage to your shear or injury. Attempting to cut unapproved
materials will void the warranty.
QTY.DESCRIPTIONPART NUMBERDET.
1HANDLE - MTLVTR45291
2FHCS, 1/4-20 UNC, 1.5" LONGWR13862
2WING NUT, ZINC-PLATED - 1/4-20WR13823
2FHCS, 5/16-18 UNC, 1.25 in. LONG, ZINC PLATEDWR13834
4FHCS, 10-24 UNC, 0.75 in. LONGWR13845
4THREAD CUTTING SCREW, 1/4"-20 THREAD, PHILLIPS FLAT HDWR13856
2PLASTIC CAP - MTLVTWL7107
1BLADE - KNIFE, MTLVTWX24178
2SLIP-ON FOOT, 0.75" - MTLVTWK2199
2COMPRESSION SPRING - MTLVTWX242410
2SET SCREW - 10-24 UNC, 0.1875 in. LONGWR137711
1CAM LOCK-ZINC PLATEDWU90412
5PPH MACHINE SCREW, 10-24 X 1/2" ZWR115813
2PAN HEAD PHILLIPS SCREW, 1/4-20 Thread, 0.75 LongWR137814
2EXCENTRIC CAM, MTLVTWX242515
1ANVIL BEAM - MTLVTR452516
2GUIDE ROD-ZINC PLATEDWU90317
1BLADE BEAM-MTLVTR452618
1CAM BAR-MTLVTR452719
2CAM PIN-ZINC PLATEDWU90520
2SPRING PIN, ZN PL SLOTTED, 0.375 DIA X 1.25" LONGWR137921
2EXTRUSION,
BED BRACE, LVTWC92122
4PAN HEAD THREAD CUTTING SCREW - 1/4-20, 1" LONGWR138023
3#10 FLAT HEAD PHILLIPS SCREW - 1" LONGWR138124
1LEG - MTLVT, DRILLEDR453125
1ADHESIVE RULEWX242626
1BED - MTLVTWL70827
1QLT ADJ. BULL FLOAT BRACKET SNAP CLIPWT17328
1SLIDING HANDLE - MTLVTR452829
1SOFTEN GRIPS-1.125-5-0.080-FE-325-89 BLACKWT50730
1BED FENCE - MTLVTR394431
1END CAP, HANDLE - MTLVTWL74132
THIS PRINT DISCLOSES SUBJECT MATTER IN WHICH MARSHALLTOWN COMPANY HAS PROPRIETARY RIGHTS. THE RECEIPT OR
POSSESSION OF THIS PRINT DOES NOT CONFER, TRANSFER OR LICENSE THE USE OF THE DESIGN OR TECHNICAL INFORMATION SHOWN
HEREIN. REPRODUCTION OF THIS PRINT OR ANY INFORMATION CONTAINED HEREIN OR MANUFACTURE OF ANY ARTICLE HEREFROM,
FOR DISCLOSURE TO OTHERS, IS FORBIDDEN, EXCEPT BY SPECIAL WRITTEN P
ERMISSION FROM MARSHALLTOWN COMPANY.
HEAT-TREAT
MATERIAL
APVD.
BY
DATE
CK.
BY
DWN.
BY
DATE
DATE
REV.DRAWING NO.
OF
NO.
PART
MACH. NO.
FIXT. NO.NO.
E.D.I. SCALE
DIE NO.
GA. NO.
SHEET
TITLE:
REV.
REVISION DESCRIPTION
DATE APVD
#
C
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
GENERAL UNSPECIFIED TOLERANCES
SUPPLIER VERIFICATION IS
REQUIRED PRIOR TO APPROVAL
CRITICAL DIMENSION / NOTE
FRACTION:
 .5
ANGLE:
 1/32
°
 XXXX
 XX
 XXX
 .020
DECIMAL: in. [mm]
 .010
 .005
 .0005
 -
[.5]
 X
-
[.013]
[.12]
[.25]
X
28847 ALL
EXPLODE-1
-
1 1

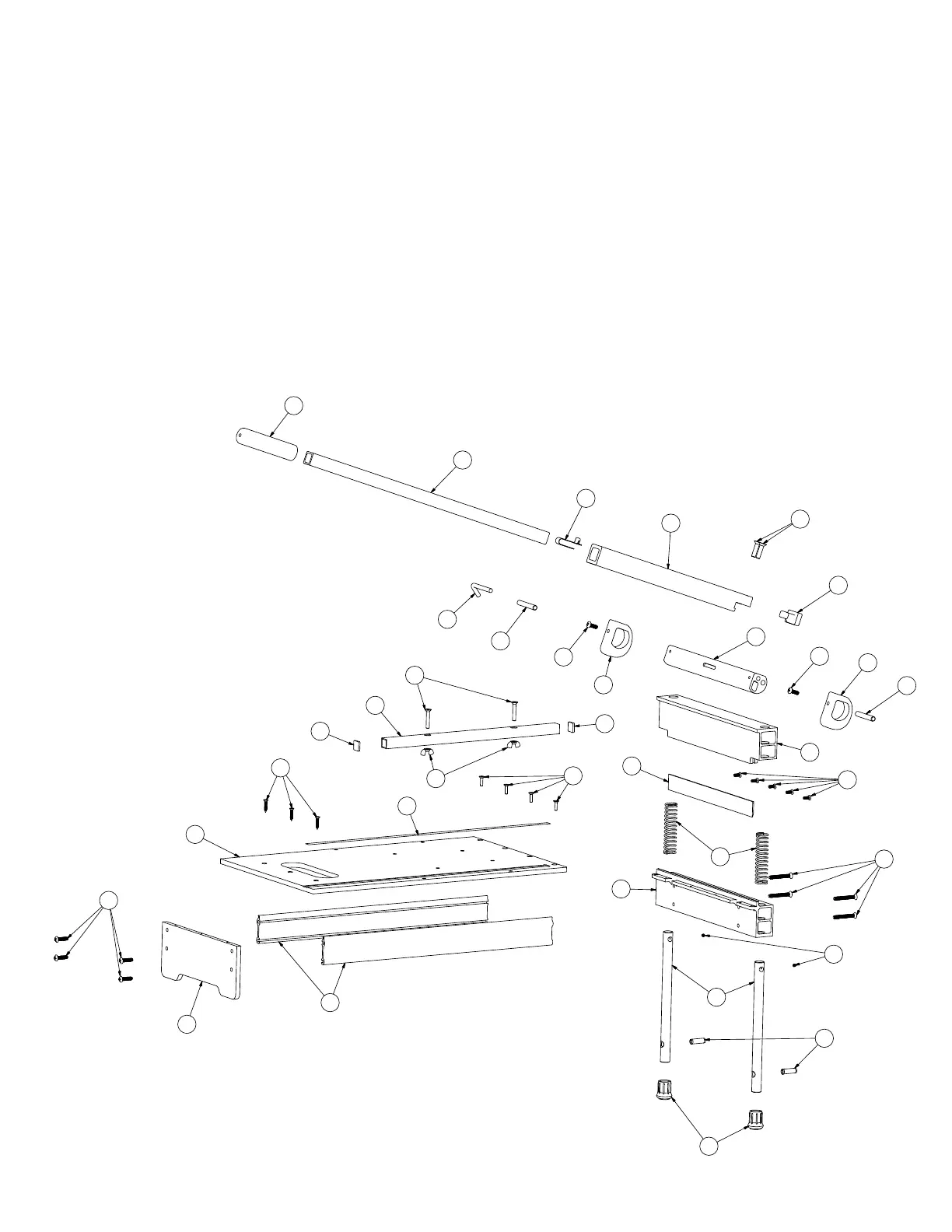

28847 - EXPLODED VIEW
N/A
jpartain
2/20/2019
28847
28847
N/A
N/A
C:\Vault Local\Public\AR W
orking Directory\JFP\Laminate Cutter\28847 ALL EXPLODE-1.idw
N/A
V12
29
30
28
1
4
12
20
14
15
19
14
15
20
18
13
8
10
6
16
11
17
21
9
22
25
23
27
26
24
5
7
7
3
2
31
32
PARTS BREAKDOWN
