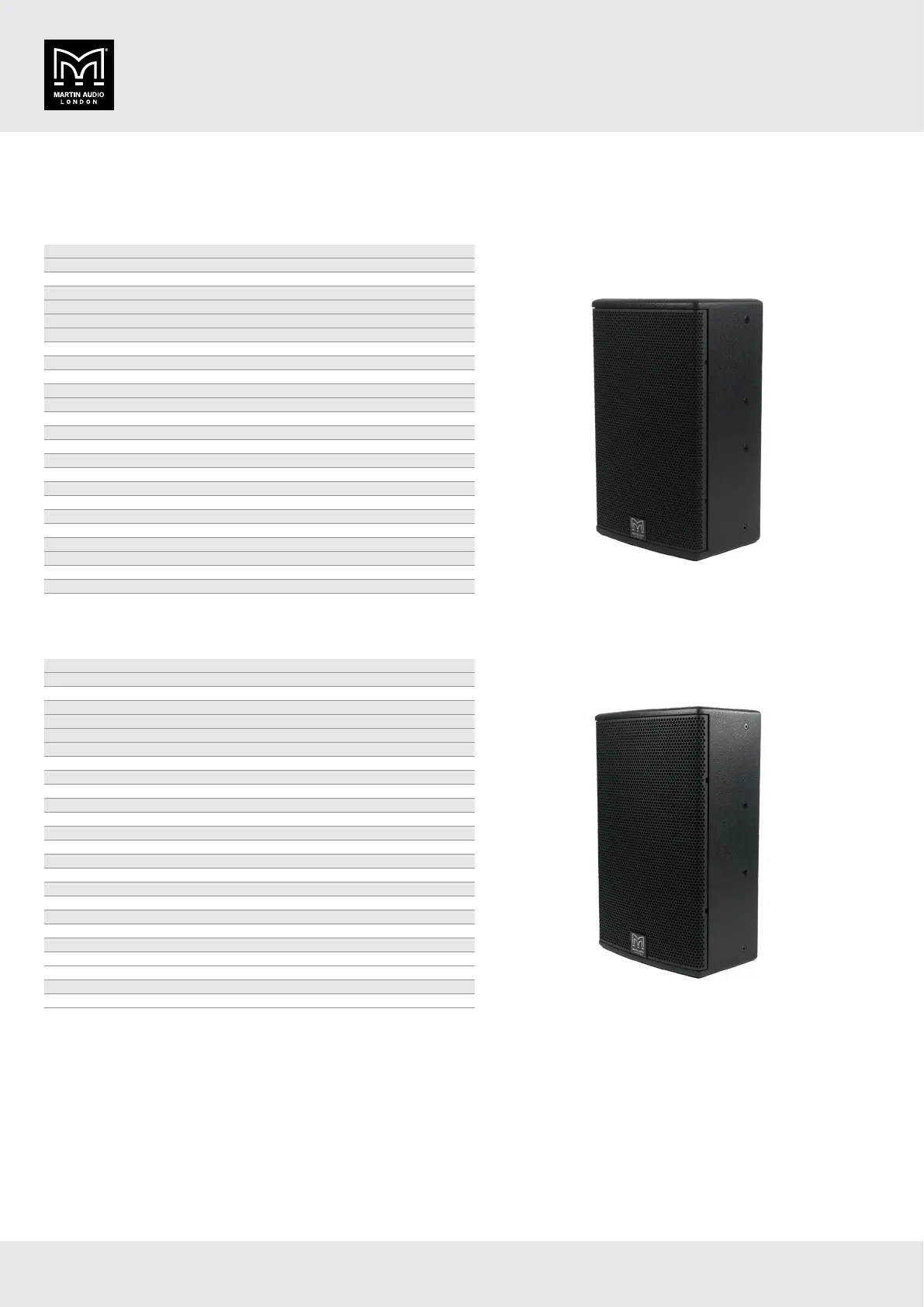

Specications
DDX8
DDX10
TYPE Ultra-Compact, coaxial differential dispersion passive
two-way system
FREQUENCY RESPONSE (5) 70Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVERS LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared
ferrite motor system with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome
compression driver
RATED POWER (2) 200W AES, 800W peak
RECOMMENDED AMPLIFIER VIA 2502 or VIA 2004
SENSITIVITY (8) 94dB
MAXIMUM SPL (9) 117dB continuous, 123dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 2.3kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS 1+/1-
PIN CONNECTIONS 1+/- to 1+/-
FITTINGS 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle
DIMENSIONS (W) 257mm x (H) 422mm x (D) 243mm
(W) 10.1ins x (H) 16.6ins x (D) 9.6ins
WEIGHT 10.5kg (23.15lbs)
ACCESSORIES Wall bracket, eyebolts, pole
TYPE Compact, coaxial differential dispersion passive
two-way system
FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVERS LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion,
shared ferrite motor with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome
compression driver
RATED POWER (2) 250W AES, 1000W peak
RECOMMENDED AMPLIFIER VIA 2502 or VIA 2004
SENSITIVITY (8) 96dB
MAXIMUM SPL (9) 120dB continuous, 126dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 2kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS 1+/1-
PIN CONNECTIONS 1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 324mm x (H) 522mm x (D) 289mm
(W) 12.8ins x (H) 20.6ins x (D) 11.4ins
WEIGHT 13.7kg (30.20lbs)
ACCESSORIES Wall bracket, eyebolts, pole
