Copyright © 2020 Martin Audio Ltd. 9
DDX USER GUIDE V1.0
DDX USER GUIDE
Wall Mounting
DDX8, DDX10 and DDX12 may be wall mounted either in portrait or landscape orientation.
Do not forget that it is important to rotate the driver through 90° when using a DDX cabinet in landscape mode. Please see the chapter on
grille removal and driver rotation for details on how this is achieved.
Installation is a two-part process in common with standard first fix and second fix procedures, installation using both sizes of brackets is
identical, the WB10/12 bracket is just larger than the WB6/8 version.

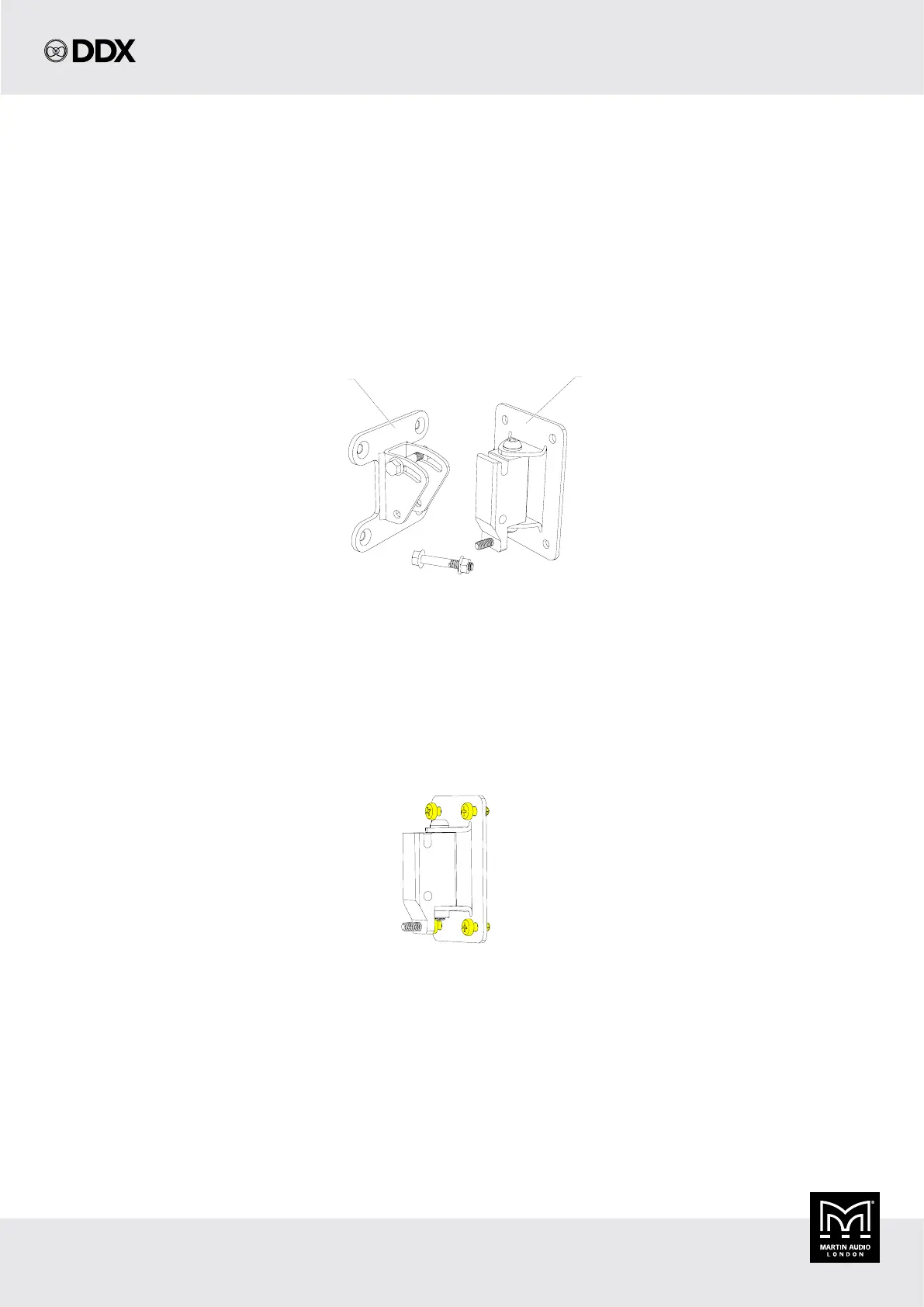

The first step is to separate the two halves of the bracket. There are two horizontally mounted nut and bolts holding the two halves together.
The upper one which sits in a curved slot does NOT need to be removed. Unscrew the lower bolt and the cabinet bracket will lift off the
wall bracket.
Speaker Section
Wall Section
First fix is to secure the wall section of the bracket. This is the part with four mounting holes, a vertical bolt holding the section which
allows horizontal adjustment and the slot into which the cabinet bracket bolt sits. Use appropriate wall fixings suitable for the composition
of the wall. These must be of sufficient strength to support the weight of the loudspeaker; 8kg for the DDX8, 14kg for the DDX10 and
17kg for the DDX12.
