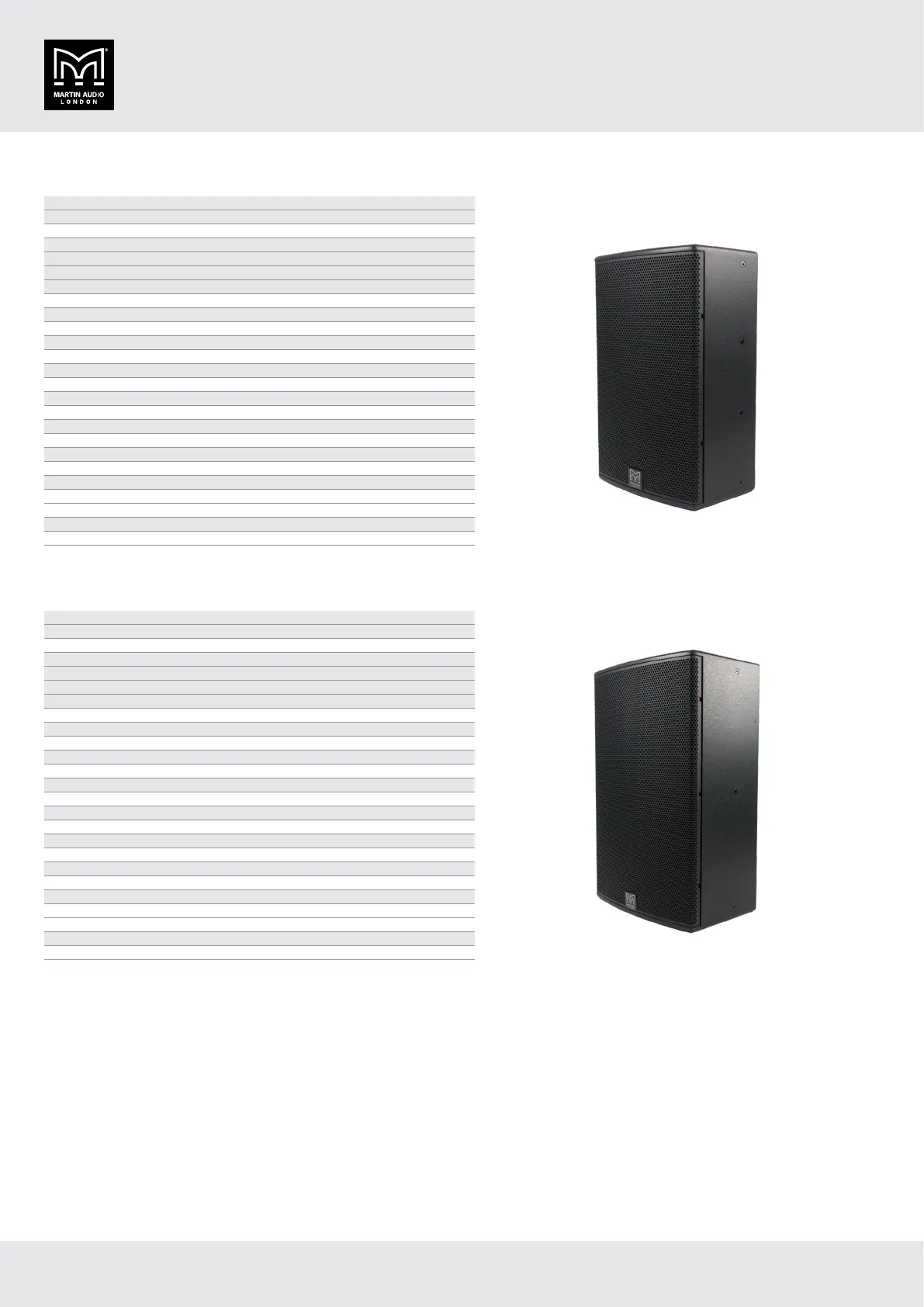

Martin Audio DDX Series User Manual

Copyright © 2020 Martin Audio Ltd.
20
PRODUCT USER GUIDE V0.0
PRODUCT NAME USER GUIDE
DDX12
DDX15
TYPE Compact, high-output, Coaxial Differential Dispersion passive
two-way system
FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVERS LF: 12” (300mm)/2.5” (63.5mm) voice coil, long
excursion, shared ferrite motor with HF
HF: 1” (25mm) exit/1.7” (44mm) voice coil,
polyimide dome compression driver
RATED POWER (2) 300W AES, 1200W peak
RECOMMENDED AMPLIFIER VIA2502 or VIA5002 or VIA5004
SENSITIVITY (8) 97dB
MAXIMUM SPL (9) 122dB continuous, 128dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 1.9kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS 1+/1-
PIN CONNECTIONS 1+/- to 1+/-
FITTINGS 20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 358mm x (H) 574mm x (D) 337mm
(W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT 18kg (39.68lbs)
ACCESSORIES Wall bracket, eyebolts, pole
TYPE High-output, Coaxial Differential Dispersion passive
two-way system
FREQUENCY RESPONSE (5) 55Hz-18kHz ± 3dB, -10dB @ 45Hz
DRIVERS LF: 15” (380mm)/3” (75mm) voice coil, long excursion,
shared ferrite motor system with HF
HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome
compression driver
RATED POWER (2) 400W AES, 1600W peak
RECOMMENDED AMPLIFIER VIA5002 or VIA5004
SENSITIVITY (8) 100dB
MAXIMUM SPL (9) 126dB continuous, 132dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 1.6kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS 1+/1-
PIN CONNECTIONS 1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole-mount socket, 2 x bar handles
DIMENSIONS (W) 427mm x (H) 690mm x (D) 419mm
(W) 16.8ins x (H) 27.2ins x (D) 16.5ins
WEIGHT 26kg (57.32lbs)
ACCESSORIES Eyebolts, pole
