Martin Engineering M3796-05/12 6 EVO
®
Return Roller
Do not tighten cap screws (L) into hanger bar. Handle (J) must
be able to be raised when replacing roll.
13. Loosen nuts (K) and adjust cap screws (L) to hold roll assembly
perpendicular to belt.
14. Tighten nuts (K).
15. Raise entire assembly up into belt 1 inch and tighten all cap screws and
nuts.

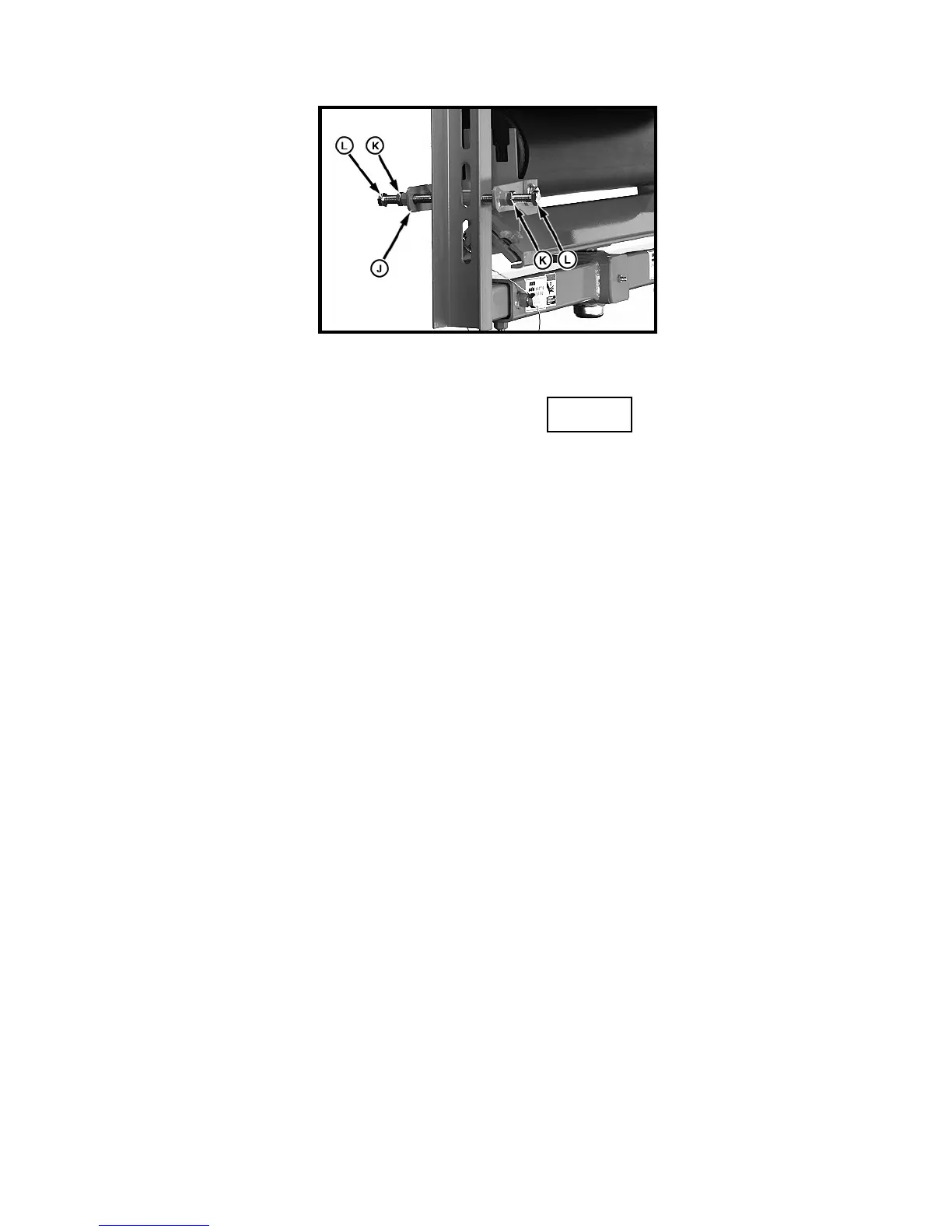

J. Handle L. Cap Screw (2 used)K. Nut (2 used)
Installation
