1998-08-03 9Parts Removal and Installation
2. Refer to Figure 2-4. Through the open gobo in the fixed gobo wheel, remove the 2 screws (A) from the rear.
Remove 2 screws (B) from the top.
3. Grip the brass coupling nut (H) with pliers and remove the screw (C) from the front.
4. Lift the prism module over the spacer nut and remove.
5. Installation is the reverse of the above procedure.
2.8 F
OCUS
MODULE
2.8.1 R
EMOVE
MODULE
1. Remove the rotating-gobo wheel.
2. Refer to Figure 2-4. With tape or a marker, mark the position of the drive belt (not shown) in relation to the front
of the module. Loosen the screws (E) holding the angle bracket and release the belt.
3. Loosen the set screws (D) securing both focus slide pins (F and G). There is only 1 set screw, in the outside
holes, in the rear adaptors. There are 2 set screws in the front adaptor for the long slide (F).
4. Carefully drive out the slide pins from back to front with a pin punch and hammer.
2.8.2 I
NSTALL
FOCUS
MODULE
1. Remove scratches in the slide pins with a fine file or sandpaper.
2. Position the focus module and insert the slide pins. Tighten the set screws.
3. Fill a syringe with Martin P/N 400003 synthetic, high-temperature oil. No other lubricant is approved for use.
Apply a few drops of oil to both slides. Be careful not to get oil on the drive belt or other parts.
4. Replace the rotating-gobo wheel. Replace the gobo module.

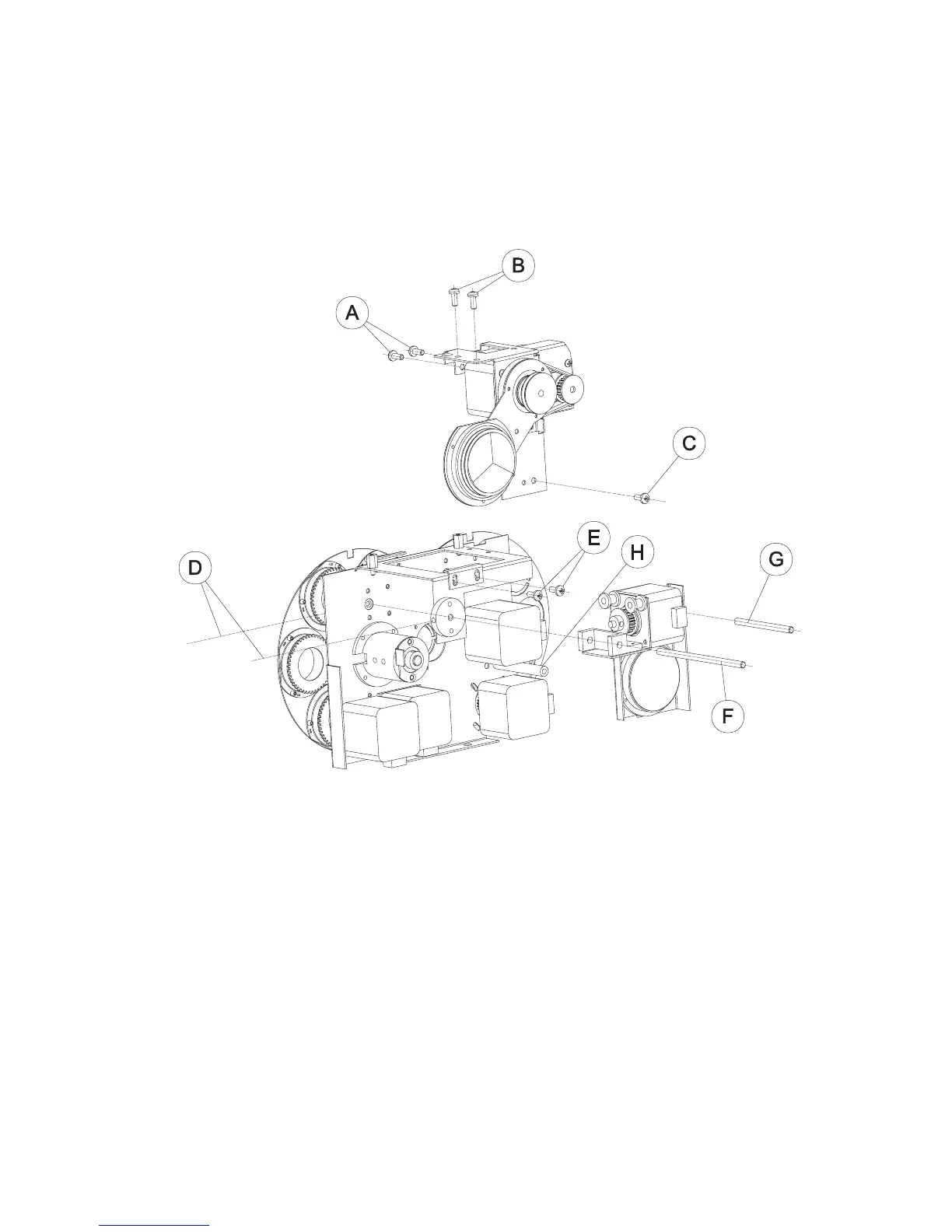

Figure 2-4
