Line Level Input (LFE In)
Found on Dynamo 800X, 1100X, and 1600X. Please note, on
the 600X, Right In also serves as LFE In. Connect from the Sub Out
on your A/V processor. Crossover settings for LFE In are controlled
through your A/V processor. The subwoofer's setting for the Low-Pass
Filter is not applied to this connection, except in the
Dynamo 600X (if
using the 600X for LFE In, set the Low Pass Filter to Bypass).
Balanced XLR Input (LFE In)
Found on
Dynamo 1100X and 1600X. Connect from the Sub Out
on your A/V processor. The setting for the Low-Pass Filter control
is not applied to this connection. Crossover settings for LFE In are
controlled through your A/V processor. Please note, do not make
connections using both the XLR and RCA LFE inputs at the same
time.
Speaker Level Input (Left In / Right In)
Found on
Dynamo 600X, 800X, 1100X, and 1600X. This set of
inputs provides a place to connect the subwoofer using standard
speaker cable. To use these connections the speaker cable should
be terminated using banana style plugs. The setting for the Low-Pass
Filter control is applied to the signal received through these inputs.
Please note, do not make connections using both the RCA and
Speaker Level Left/Right inputs at the same time.
Wireless Audio Signal Connection
Found on Dynamo 600X, 800X, 1100X, and 1600X. The SWT-X
Subwoofer Wireless Transmitter/Receiver system is sold separately
and available from your local dealer. Detail on using an SWT-X
system are found later in this manual.
AC Power Connection
WARNING!
The power cord should not be installed, removed,
or left detached from the subwoofer while the
other end is connected to an AC power source.
The IEC power cord should be firmly inserted into the AC power
receptacle on the rear connection panel of the subwoofer, then to
any convenient AC wall outlet. The sub also integrates a signal
sensing power supply that automatically switches off after sensing
no music signal for several minutes (this will occur when the power
switch is set to 'Auto').
Your subwoofer is wired for the power service supplied in the coun-
try of original consumer sale. The AC power rating applicable to
a particular unit is specified both on the packing carton and on
the serial number plate attached to the subwoofer. If you remove
your subwoofer from the country of original sale, be certain that
AC power supplied in any subsequent location is suitable before
connecting and operating the subwoofer. Substantially impaired
performance or severe damage may occur to the subwoofer if oper-
ation is attempted from an incorrect AC power source.
Break-In
Our custom made woofers require approximately 50 hours of break-
in at moderate listening levels before their optimal performance
occurs. This will factor in on any critical listening and judgment.
Wireless Module Connection

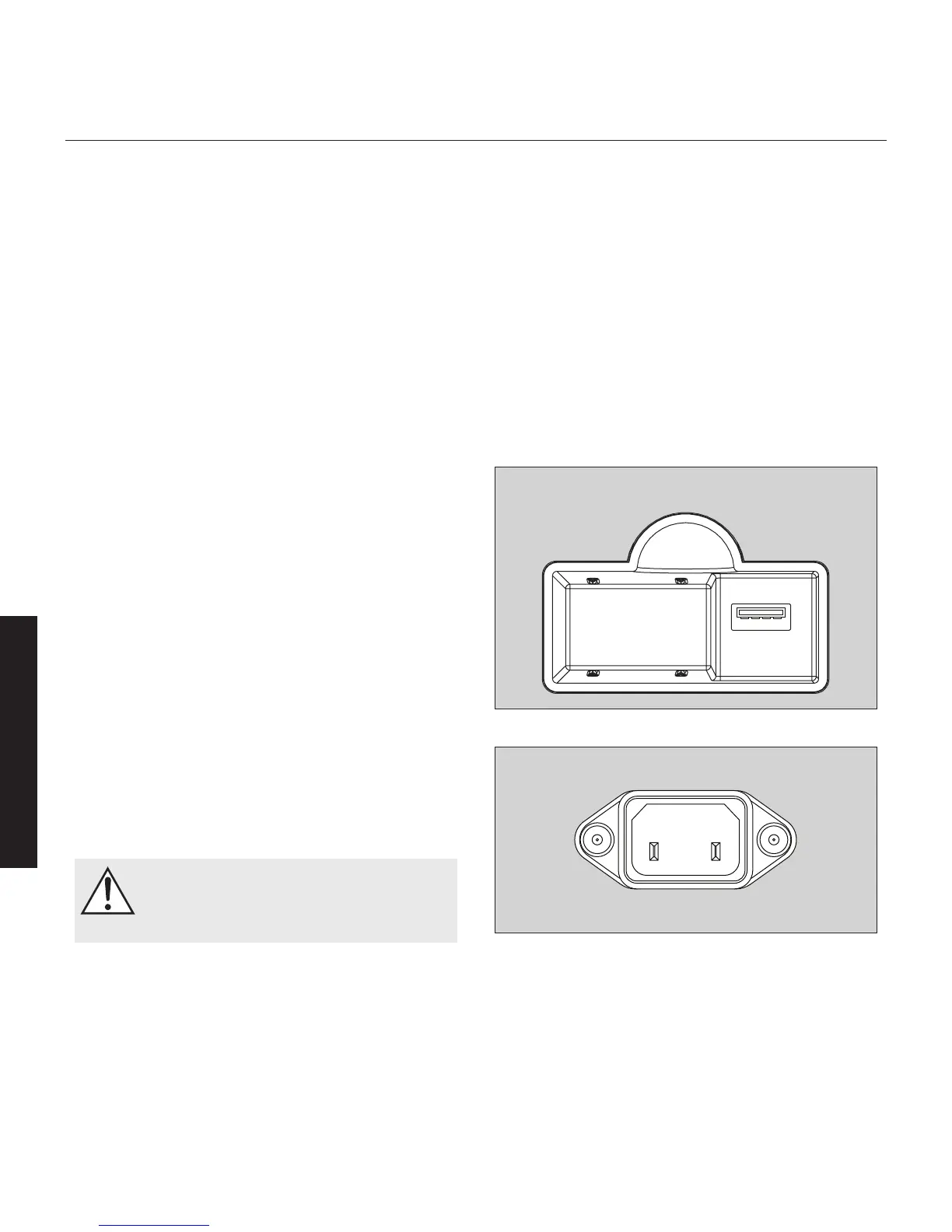

Figure 4. Wirless module receptacle
Figure 5. AC Power receptacle
