Product Description
Safety Decals
ON GUIDE BAR
(Part No.235595)
Safety Decals are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
ON GEARCASE
(Part No.423331)
ON GEARCASE
(Part No.423332)
ON GEARCASE
(Part No.423333)
Handling this machine improperly could result in accidents causing serious injury
or death. Read this manual carefully and practice using the trimmer until you are
fully acquainted with all operations and have learned to use it correctly.
Carefully read owner’s/operator’s manual.
Always be careful to wear a face protector, ear protector and helmet when
using your Hedge Trimmer.
Keep hands away from cutting blades.

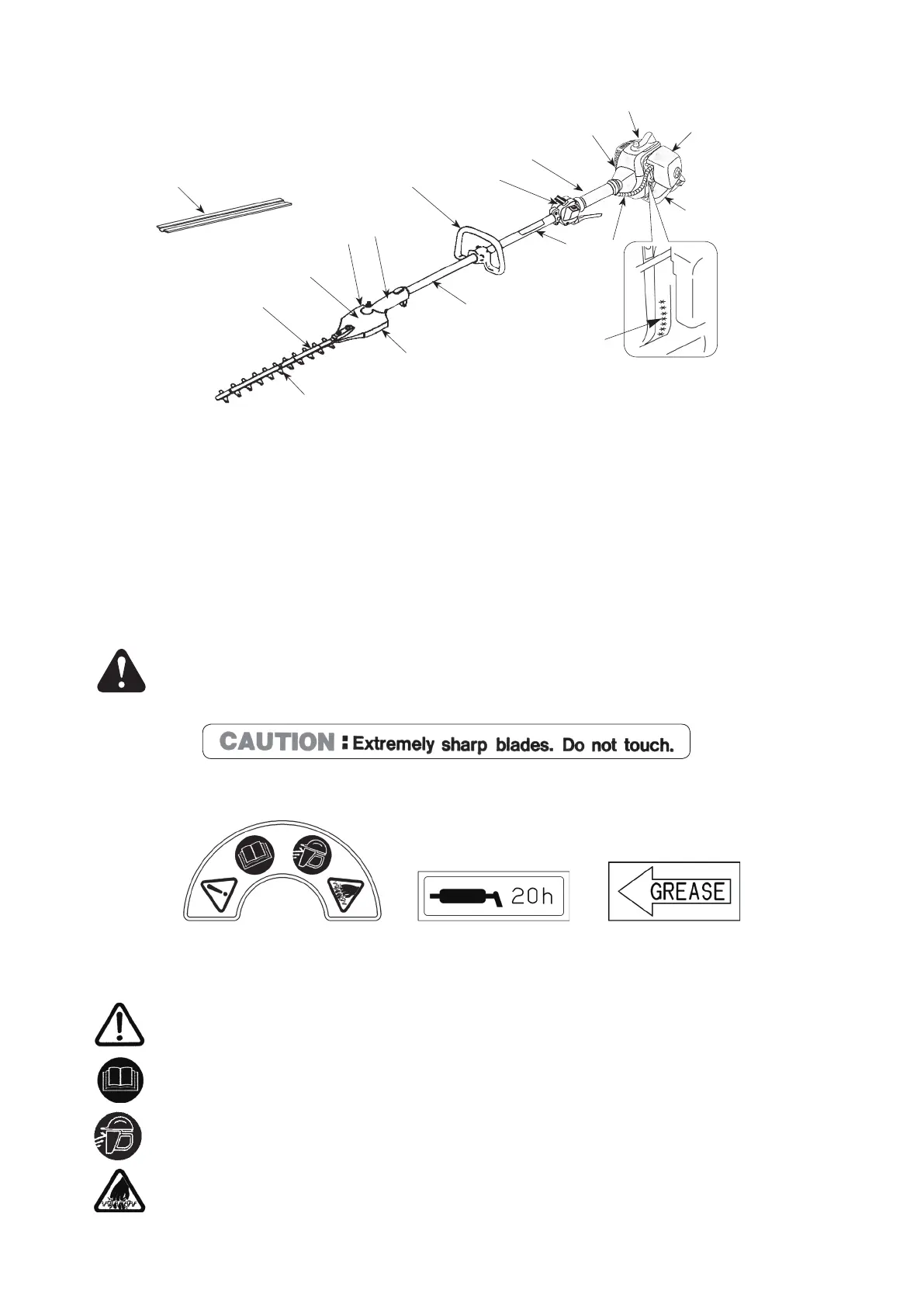

1. Blade
2. Gearcase
3. Shaft Assembly
4. Loop Handle
5. Safety Decal
6. Model Name
7. Shaft Grip
8. Throttle Trigger and Stop Switch
9. Clutch Drum Housing
10. Engine
11. Serial Number (
on side of engine)
12. Air Filter
13. Fuel Tank
14. Throttle Cable and Stop Switch Wires
15. Blade Cover
1
2
4
5
5
5
5
8
6
9
10
12
13
14
3
7
11
15
