REMOTE CBU

(CBU + CABLE)

ONBOARD CBU

(REAR VIEW)

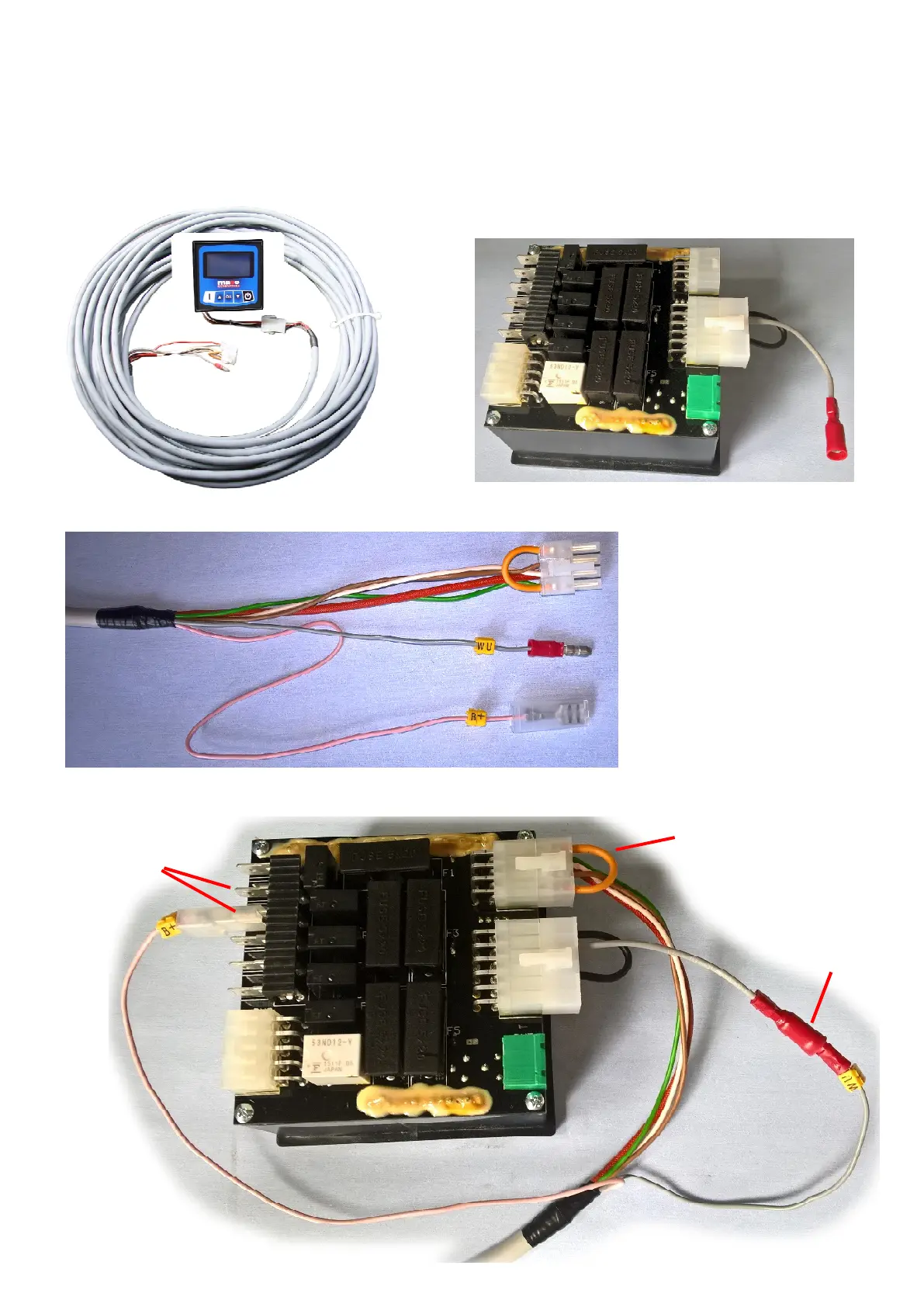

Detail of cable terminals:

HOW TO CONNECT A SECOND CBU MODULE (USUALLY A REMOTE CBU)

TO THE FIRST PROVIDED CBU (USUALLY CBU ONBOARD GENERATOR)

- PHOTO SEQUENCE -

Connect the above terminals to the first CBU, as shown below.

to PIN3 or PIN2

(They are the

same)

to male

CONNECTOR

CN3 - 8 poles

to insulated

female crimp

bullet connector
