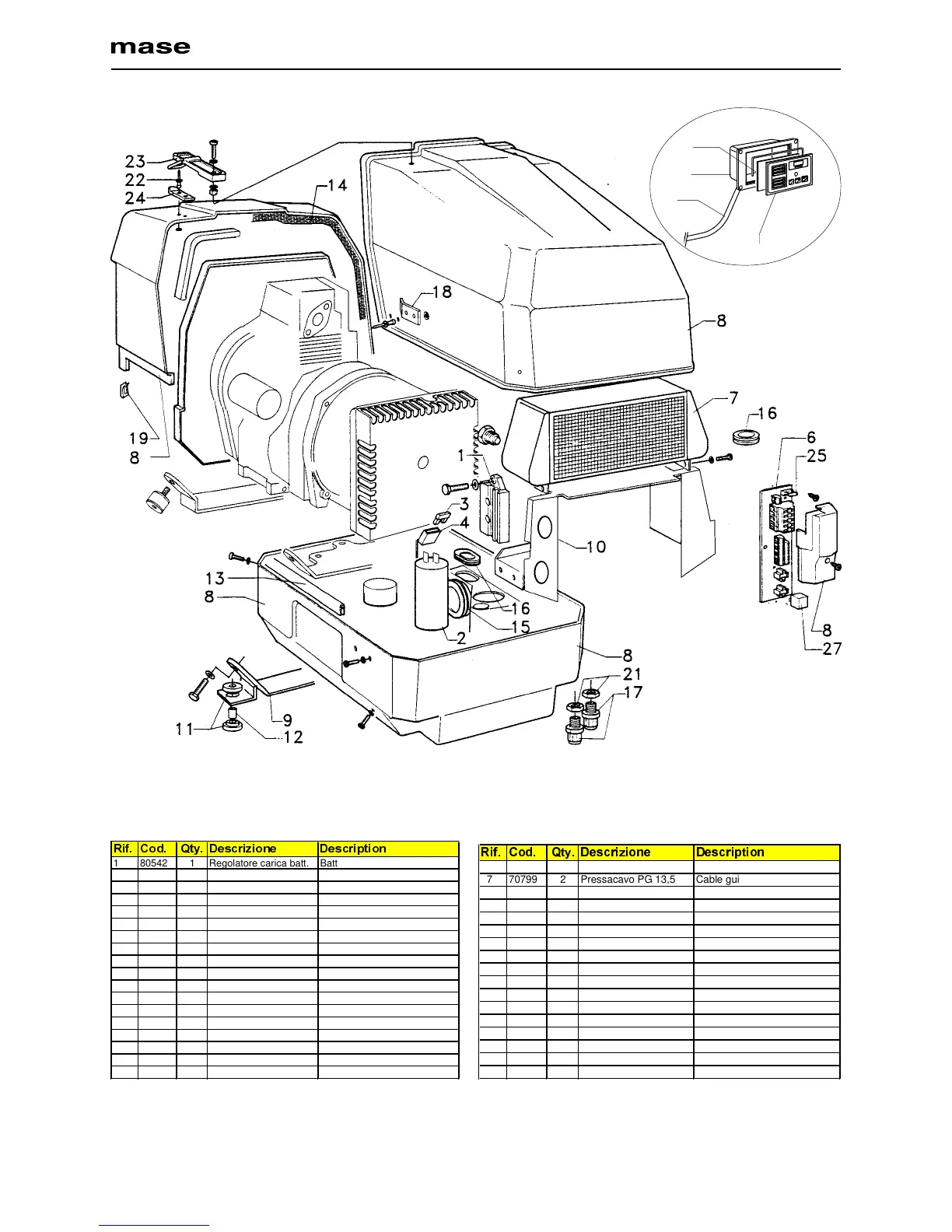

Mase IS. 2.5 - Generator Enclosure and Chassis Parts

IS 2.5
8
GENERATORS
CASSA INSONORIZZANTE CHASSIS FRAME RAHMEN
b
c
a
d
29
30
31
28
32
5LI &RG 4W\ 'HVFUL]LRQH 'HVFULSWLRQ
1 80542 1 Regolatore carica batt. Batt. charger regulator
2 31188 1 Condensatore Capacitor
3 31002 1 Fusibile lamellare 20 A Fuse 20 A
4 30925 1 Portafusibile Fuse carrier
5 30926 1 Piastrina portafusibili Fuse holder terminal
6 32690 1 Scheda relè Relay board
7 61181 1 Radiatore acqua/aria Water/Air intercooler
8a 90902 1 Coperchio cassa sup. Soundproof box cover
8b 90903 1 Coperchio cassa post. Soundproof box cover
8c 12759 1 Fondo cassa Soundproof box bottom
8d 70881 1 Scatola scheda relè Relay box cover
9 611160 2 Staffa fondo cassa Bracket
10 07529 1 Supporto scambiatore Water/Air intercooler support
11 70733 8 Elastomero Shock absorber
12 10780 4 Distanziale Spacer
13 70739 2.7 mt Profilato in gomma Gasket
14 70809 1 Serie spugne Sponge get
15 10567 1 Passacavo DG48 Cable guide
5LI &RG 4W\ 'HVFUL]LRQH 'HVFULSWLRQ
16 10566 2 Passacavo DG29 Cable guide
17 70799 2 Pressacavo PG 13,5 Cable guide
18 07337 2 Staffa fissaggio cofani Plate
19 10823 7
Dado oteco MUT 986 M6
Nut
21 70800 2 Dado per PG 13,5 Nut
22 80162 1 Zinco Scambiatore Zinc anode
23 04306 4 Cinghietta in gomma Strap
24 10815 4 Fermo cinghietta Plate
25
26 31678 2 Relè Relay
27 70878 1 Paratia lato motore Bulkhead
28 91034 1 Circuito stampato Printed circuit
29 70786 40 cm Guarnizione Gasket
30 70854 1
Scatola pannello comand
Printed circuit box
31 70634 4 Antivibrante 30x30 Shock absorber 30x30
32 07664 1 Comando a distanza Remote control panel
