Masibus MINT-AI-08 - 4.4.5 Modbus Address for configuration

Page | 45
MINT – IO
REF NO: m25A/om/101
Issue No: 11

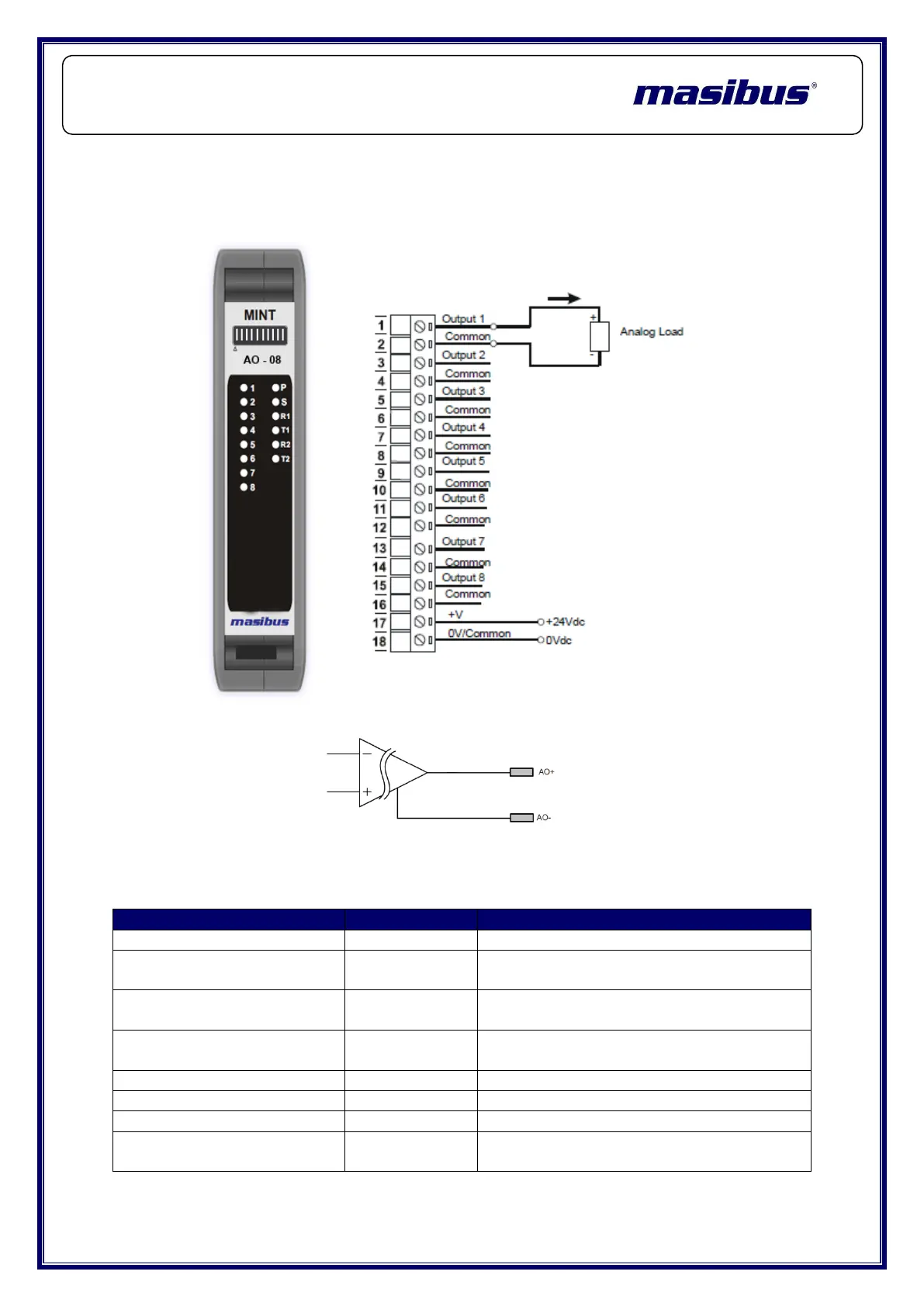

4.4.4 Wiring Diagram:
The following diagram shows how the Analog Outputs are connected to the
Output Terminals.
Equivalent Circuit Diagram:
4.4.5 Modbus Address for configuration:
Parameter
Address
Description
Process Value (INT)
30001 – 30008
Channel 1 – 8 Outputs – Read Only
Process Value (Swap
Float)
30051 – 30065
Channel 1 – 8 Outputs – Read Only
Ambient Temperature
(INT)
30009
Ambient Temperature Read Only
Ambient Temperature
(swap Float)
30067
Ambient Temperature Read Only
Output Types
1
40001 – 40008
Channel 1 – 8 Output Types
Output
40009 – 40016
Channel 1 – 8 Output Apply – 16 Bit
Output Status
40017
Output Status Register
Calibration Ambient
40249
Ambient Temperature Calibration (0°C –
55.0°C)
