21
Masport F43/F28 Freestanding Gas Heater
Hint for pushing fan down onto pins - rub a bit of dish soap on
the pins so the grommets will slide down more easily. Check
to make sure the fan is seated properly on the pins - try to move
the fan back and forth, there should be no noise, if there is
check that the grommets haven't come loose.
Replacing F43 fan:
Reverse steps (1-5 on removing the fan). If necessary install
a new gasket (Part# 936-196) before replacing the fan access
panel. Make sure the fan wires are reattached.

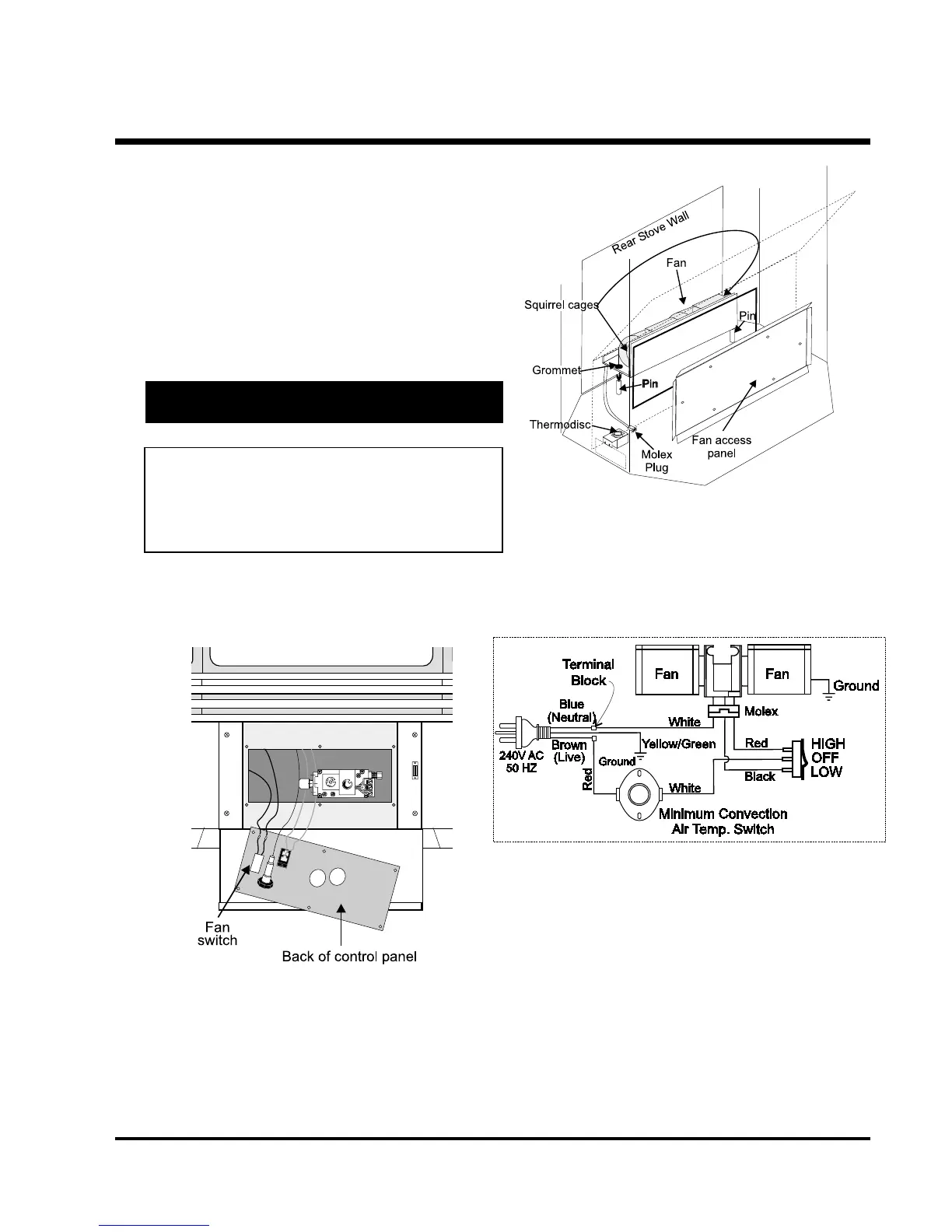

FAN MAINTENANCE
If the fan requires maintenance or replacement, access to the
fan is through the access panel on the rear wall of the firebox.
Note: The unit MUST NOT be operated without the fan
access panel securely in place and correctly sealed.
IMPORTANT:These fans collect a lot of dust from within
your home. Ensure you maintain these fan motors on a
regular basis by vacuuming out the fan squirrel cages,
around the motor, and around the grills on the back of the
stove.
IMPORTANT
Disconnect power supply before servicing
ing prong from this plug.
To remove F43 fan:
1) Unplug or disconnect power source to stove.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (ground-
ing) plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the ground-
2) Remove all logs and the rear log support, then remove the
6 screws holding the access panel in place.
3) Disconnect the molex plug.
4) Remove the green ground wire from the fan body.
5) Lift fan off of the 2 pins, tip back and pull through firebox
opening.
MAINTENANCE
